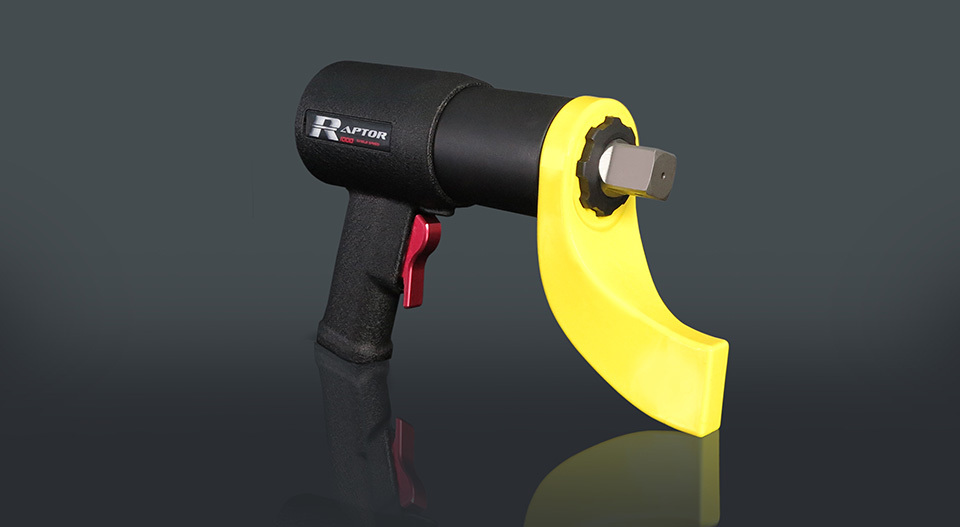

RP SERIES Pneumatic Torque Wrench

The Most Robust Pneumatic Gear Drive Wrench In The Industry

The RP series handle makes it appear like an impact wrench, but once you pull the trigger nothing about this tool relates to the word “IMPACT”. This is a smooth running instrument for applying vast amounts of torque in a continuous fluid like manner. With the use of standard industrial sockets every application is met with repeatable torque to an accuracy of +/-5%.

NOTHING ABOUT THIS TOOL RELATES TO THE WORD IMPACT!

  • Made In USA
  • Five Models From 78 Ft/lbs to 5,990 Ft/lbs 106nm. to 8121nm.
  • Every Unit Calibrated In ISO17025 Laboratory
  • Manufactured With AQ Certified Alloys
  • Genuine TorcUP Design

When it comes to the saying “more to it than meets the eye”, this is an understatement when creating an accurate and durable pneumatic torque wrench. The RP series wrenches combine the most tight tolerance air drive motors along with a planetary gear stack capable of handling more torque than the tool is cited as capable of – YES WE BUILT IN A SAFETY FACTOR! The specifications we state are the specifications you get when you purchase an RP series wrench! From the speed to the torque to the weight to the operational sound level – WHAT IS ADVERTISED IS WHAT YOU GET! And what you get is a tool that you can count on! So what matters to you? Marketing hype or the ABSOLUTE MOST DURABLE PNEUMATIC TORQUE WRENCH SERIES EVER PRODUCED!


  • Specifications

    Model #Raptor 500Raptor 1000Raptor 2000Raptor 3000Raptor 6000
    Square Drive 3/4" 1" 1" 1" 1 1/2"
    Min. Torque (Ft/Lbs) 78 148 231 484 714
    Max. Torque (Ft/Lbs) 530 1030 2015 3070 5990
    Min. Torque (Nm) 106 201 313 656 968
    Max. Torque (Nm) 719 1396 2732 4162 8121
    Output Accuracy @ Set Torque +/- 5% +/- 5% +/- 5% +/- 5% +/- 5%
    Repeatability 100% 100% 100% 100% 100%
    Duty Cycle 100% 100% 100% 100% 100%
    Weight w/o Arm 9lbs/4.1kg 12lbs/5.4kg 16lbs/7.3kg 20lbs/9.1kg 36lbs/16.3kg
    RPM @ 10 psi 16.5 7 3.5 1.75 1.25
    Tool Max psi 80 70 3.5 1.75 1.25
    RPM @ Max psi 44 15 9 4 3
    Requirements Air pressure 10-90 psi / Flow 45-55 CFM

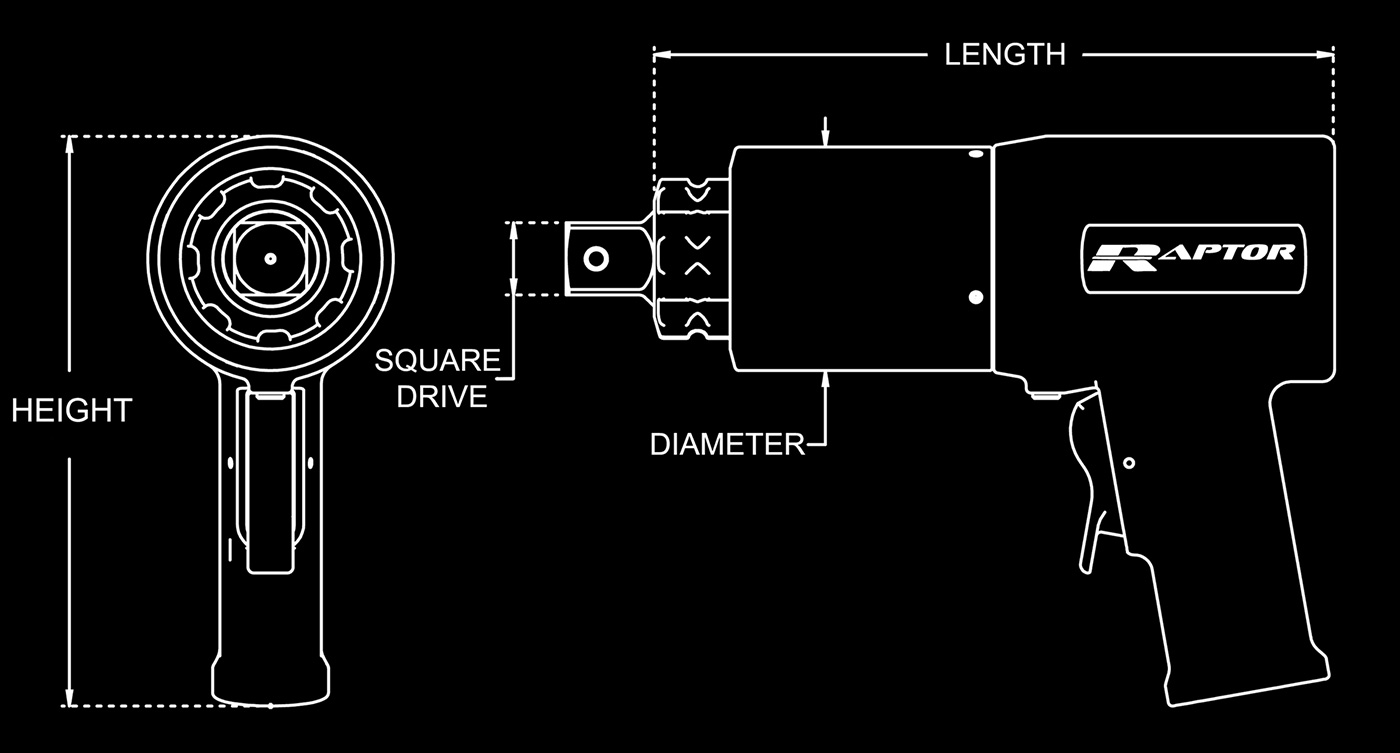

  • Dimensions

    Model #Raptor 500Raptor 1000Raptor 2000Raptor 3000Raptor 6000
    Height 7.89" /
    200.4mm
    7.89" /
    200.4mm
    7.89" /
    200.4mm
    8.06" /
    204.7mm
    8.69" /
    220.7mm
    Square Drive 0.75" /
    19.05mm
    1.00" /
    25.4mm
    1.00" /
    25.4mm
    1.00" /
    25.4mm
    1.50" /
    38.1mm
    Length 6.80" /
    172.7mm
    8.87" /
    225.3mm
    9.40" /
    238.8mm
    10.62" /
    269.7mm
    12.32" /
    312.9mm
    Diameter 2.56" /
    65mm
    2.85" /
    72.4mm
    3.09" /
    78.5mm
    3.75" /
    95.3mm
    5.00" /
    127.0mm
  • Features

    Sturdy Square Drive

    Sturdy Square Drive

    The design of the square drive allows for direct socket engagement.

    Ergonomic Pistol Grip

    Ergonomic Pistol Grip

    The pistol grip of the RP Series was designed to allow for firm and comfortable positioning. It is finished with a durable slip-resistant textured coating.

    Compact Air Motor

    Compact Air Motor

    The lightweight ultra-efficient air motor is designed for easy maintenance.

    Cast Reaction Arm

    Cast Reaction Arm

    The sturdy "non-welded" construction provides a safe and strong reaction point.

    Internal Gear Drive

    Internal Gear Drive

    The RP Series employs a patented planetary gear design which increases torque multiplication without added weight and bulk.

    Dual Operation Trigger

    Dual Operation Trigger

    The trigger allows for forward and reverse operation without grip repositioning.
  • Accessories

    Filter/Regulator/Lubricator Unit

    Filter/Regulator/Lubricator Unit

    The RP-FRL Unit is used to filter and lubricate the air supply, as well as regulate the pressure to achieve desired torque output. The unit comes complete with a pressure gauge and 8’ connecting air hose, and is fitted with a one-piece welded steel frame for protection and transport.

    Long Extended Reaction Arm

    Long Extended Reaction Arm

    This arm provides a longer reach, working with deepwell sockets.

    Sliding Straight Arm

    Sliding Straight Arm

    This arm is designed for socket to socket reaction. The drive/cup design protects the adjacent nut from direct reaction and is adjustable from 4" to 12".

    Straight Reaction Arm

    Straight Reaction Arm

    This arm is designed to accommodate a reaction point at a 90 degree angle from the drive.

    Weld Blank

    Weld Blank

    This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the RP Series and includes heat treating specifications.

    Nose Extension

    Nose Extension

    The extensions fasten directly to the nose of the tool, allowing for reach into hard to access applications. This works with the standard reaction arm.

    Pinch Avoidance Safety System

    Pinch Avoidance Safety System

    This safety system allows for dual handed operation of the RP Series. The operator keeps one hand on the trigger and the other on the PASS system - upon release of the PASS trigger, the tool immediately stalls.

    Tool Carrying Handle

    Tool Carrying Handle

    This ergonomic handle is durable and allows for left or right hand operation, as well as vertical and horizontal positioning. It can be factory or field installed and works on all RP models.
