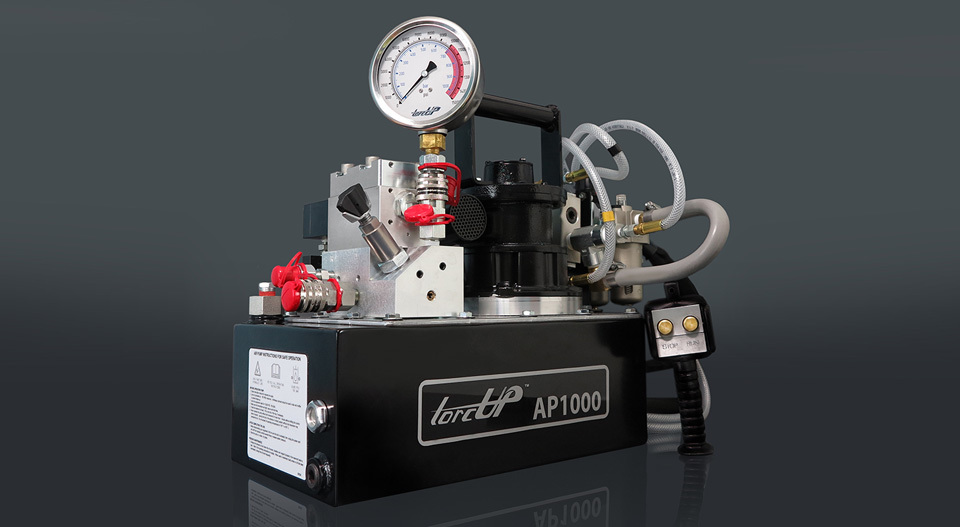

AP SERIES Hydraulic Torque Wrench Pump

The Most Perfectly Packaged Hydraulic Torque Wrench Pump In The Industry

The AP series hydraulic torque wrench pumps were designed to be driven by pneumatic means in the harshest and most demanding environments…SAFELY! Full range adjustability up to 10,000 PSI / 700 Bar.

THERE FOR YOU WHEN ELECTRICITY IS NOT

  • Made in the USA
  • Multi-Port Model Available
  • Air Driven 100 psi / 50 cfm
  • Supplied With 15′ (3 Meter) Hydraulic Hose
  • Genuine TorcUP Design

The AP series is there for you when electricity is not. In explosive environments or on applications when air is more readily available than electricity, the AP series pumps are another example of TorcUP’s attention to the needs of our customers. Capable of running up to four tools the AP series brings safety to your application.

  • Specifications

    Model #Reservoir CapacityModelValve System / FunctionPendantMotor SpecFlow RateWeight
    AP1000 1.5Gal /
    5.7 litre
    Torque Auto Retract / Advance/Retract Motor /
    Solenoid Control
    4HP @ 100psi /
    50cfm
    700 cu. in./min. @ 0 psi 55 cu.in./min.@10,000 psi (11.5 litres/min. @ 0 bar 0.9 / min. @ 700bar) 67.65lbs /
    30.7 kg

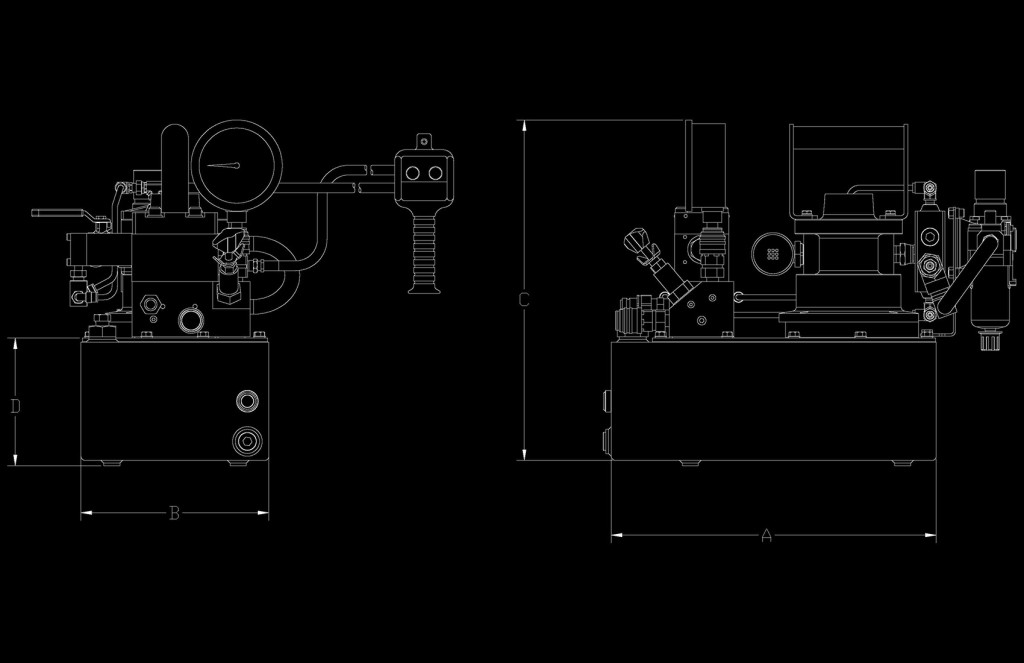

  • Dimensions

    Usable Reservoir CapacityABCD
    1.5 gal / 5.7 litre 15.13 in / 384 mm 8.75 in / 222 mm 16.09 in / 409 mm 5.94 in / 151 mm
  • Features

    Heavy Duty Air Motor

    Heavy Duty Air Motor

    The powerful 4HP motor driving the AP1000 Series runs on 50cfm / 90PSI. It is well suited for heavy industrial applications.

    High Output Two Stage Assembly

    High Output Two Stage Assembly

    The sub-pump assembly of the AP1000 is a two stage design which allows for a high flow rate with less drag on the air motor.

    Precise PSI/BAR Gauge

    Precise PSI/BAR Gauge

    The TorcUP gauge display shows PSI and Bar for use around the world.

    Rugged Remote

    Rugged Remote

    Each pump includes the 15' low-voltage ergonomic remote operation pendant. The durable design is suited for the harshest environments.

    Industrial Reservoir

    Industrial Reservoir

    Powder coated aluminum reservoir is lightweight yet durable for operating in the harshest environments. Both the single port and quad versions come with a 1.5 gallon reservoir.

    Easy View Sight Glass

    Easy View Sight Glass

    Sight glass enables operator to monitor reservoir oil levels..

    Quadra-Torc Option

    Quadra-Torc Option

    The pump can be ordered with an installed four port manifold for operating four tools concurrently. This version comes complete with a 1.5 gallon reservoir.

    Pressure Adjustment Knob

    Pressure Adjustment Knob

    The easily accessible knob allows the user to adjust the pressure output of the pump, increasing or decreasing torque when necessary.

    Twinline High Pressure Hydraulic Hoses

    Twinline High Pressure Hydraulic Hoses

    Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.

    No Drip Quick Connect Couplers

    No Drip Quick Connect Couplers

    These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation.
  • Accessories

    Storage/Shipping Cases

    Storage/Shipping Cases

    Cases ranging from aluminum to plastic for pump storage and delivery are available to fit the pumps and tools.
    Roll Cage

    Roll Cage

    A protective aluminum roll cage is available for all pumps. This cage is standard on all SV pumps.
    Twinline High Pressure Hydraulic Hoses

    Twinline High Pressure Hydraulic Hoses

    Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating. Longer lengths of hoses available to accommodate various needs.
