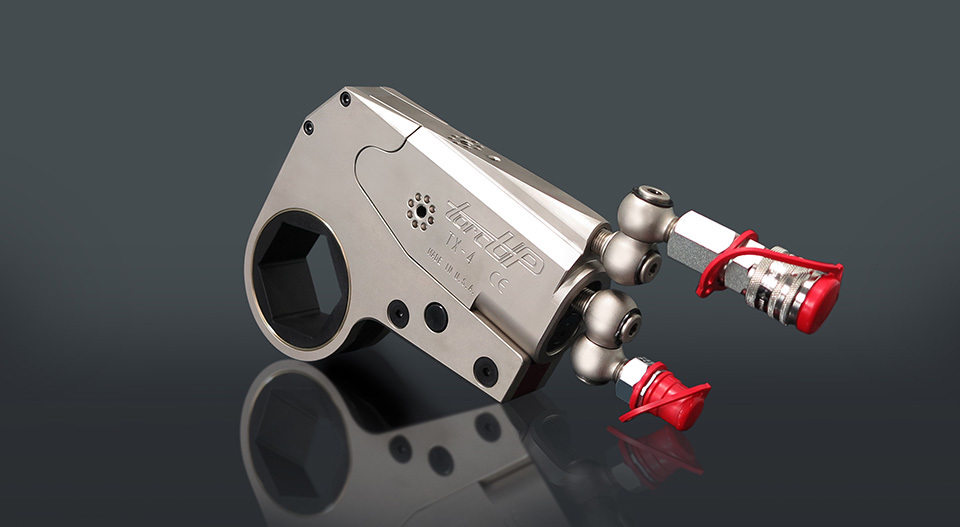

TX Series Low Profile Hydraulic Torque Wrench

The Flattest And Most Tight Fitting Hydraulic Bolting Tool In The Industry

The TX series is the “go-to” wrench when standard industrial torque tools are limited by size in their ability to engage the fastener. The TX eliminates issues around the nut, behind the nut and above the nut. On applications with extended stud protrusion, the TX easily slips over to get the torque applied with an accuracy of +/-3%.

A Tool With Multiple Personalities!

  • Made in the USA
  • Seven Models From 45 Ft/Lbs to 47,380 Ft/Lbs 61nm. to 64239nm.
  • Every Unit Calibrated In ISO17025 Laboratory
  • Manufactured With AQ Certified Alloys
  • Genuine TorcUP Design

When designing the TX series every application obstruction was taken into consideration. Every unnecessary and cumbersome component was eliminated which created a tool with multiple personalities! The TX prides itself on fitting where others can not and applying vast amounts of torque unheard of by most. All the while still being the most field serviceable tool capable of being utilized and maintained in some of the most demanding environments around the globe. Add to that a tight tolerance torque output that is repeatable over and over year after year!

  • Features

    Patented “Peanut-Shaped” Piston

    Patented “Peanut-Shaped” Piston

    This feature allows the cylinder and ratchet link to be the same width. Friction reducing sliders prevent wear on the piston.

    Dual Independent Swivels

    Dual Independent Swivels

    The unique swivel design allows for 360 degree by 360 degree independent movement of the hoses to avoid any and all reaction points.

    Hex Link Cassettes

    Hex Link Cassettes

    Each link is fitted with steel alignment pins connecting the lower reaction area for added strength.

    No Drip Quick Connect Couplers

    No Drip Quick Connect Couplers

    These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation.

    Cylinder and Link Material

    Cylinder and Link Material

    Both cylinder and link are manufactured from 4340 Aircraft Quality high strength steel alloy.

    Nose Radius

    Nose Radius

    Tight nose radius allows this tool to fit in applications where clearance constraints make other tools too bulky.

    In-Line Reaction Pad

    In-Line Reaction Pad

    This design ensures torsion-free reaction every time.

    Link Pin

    Link Pin

    One pin for link to cylinder engagement - no tool required for swapping ratchet links.
  • Technical Data

    Part #TX-1TX-2TX-4TX-8TX-16TX-32TX-45
    Minimum Torque(Ft/lbs) 45 192 395 830 1560 3220 4850
    Maximum Torque (Ft/lbs) 560 1928 3950 8630 16600 35650 47380
    Minimum Torque (Nm) 61 260 535 1125 2155 4365 6575
    Maximum Torque (Nm) 759 2614 5355 11699 22503 48327 64239
    Output Accuracy +-3% +-3% +-3% +-3% +-3% +-3% +-3%
    Repeatability 100% 100% 100% 100% 100% 100% 100%
    Duty Cycle 100% 100% 100% 100% 100% 100% 100%
    Cylinder Weight (lbs) 1.00 3.50 6.00 11.70 16.00 26.00 29.00
    Cylinder Weight (Kg) 0.45 1.58 2.70 5.00 7.30 11.50 13.00
    Link Weight From (lbs) 1.00 2.40 5.40 11.90 21.00 29.00 29.00
    Link Weight To (lbs) 1.00 3.50 7.60 14.50 28.00 39.50 39.50
    Link Weight From (Kg) 0.45 1.00 2.40 5.50 9.50 13.00 13.00
    Link Weight To (Kg) 0.45 1.50 3.40 6.50 13.00 17.90 17.90
    Hex Range From 1/2" / 13mm 3/4" / 19mm 1" / 25mm 1 7/8" / 49mm 2 3/16" / 55mm 3 1/8" / 80mm 3 1/8" / 80mm
    Hex Range To 1 5/8" / 50mm 2 9/16" / 65mm 3 1/8" / 80mm 4 5/8" / 120mm 5 5/16" / 135mm 8" / 205mm 8" / 205mm

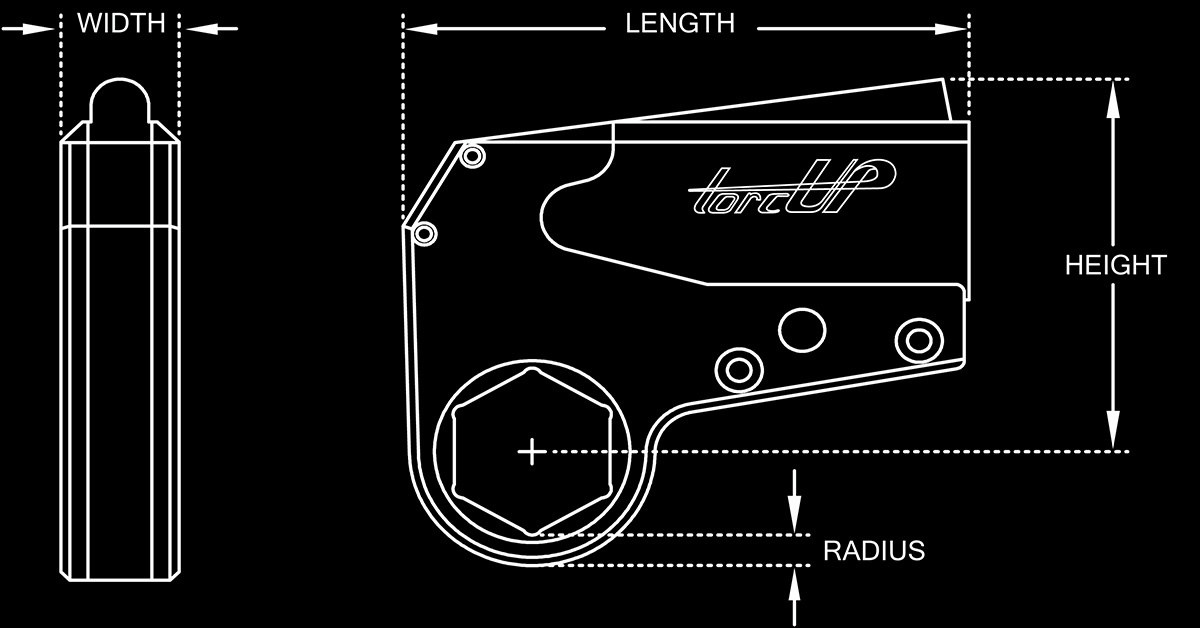

    Part #TX-1TX-2TX-4TX-8TX-16TX-32TX-45
    Length 4.37" / 111.0mm 6.45" / 163.8mm 7.87" / 199.9mm 10.18" / 258.6mm 12.93" / 328.4mm 15.8" / 401.3mm 16.75" / 425.5mm
    Width 0.78" / 19.8mm 1.25" / 31.8mm 1.63" / 41.4mm 2.05" / 52.1mm 2.50" / 63.5mm 3.24" / 82.3mm 4.88" / 124.0mm
    Radius 0.23" / 5.8mm 0.36" / 9.1mm 0.46" / 11.7mm 0.54" / 13.7mm 0.65" / 16.5mm 0.93" / 23.6mm 0.93" / 23.6mm
    Height 3.25" / 82.6mm 4.00" / 101.6mm 5.60" / 142.2mm 7.00" / 177.8mm 7.58" / 192.5mm 9.50" / 241.3mm 10.28" / 261.1mm
  • Accessories

    TX Inline Reaction Arm

    TX Inline Reaction Arm

    This arm can be attached to the drive cylinder and ratchet link to provide a reaction area further from the tool.
    TX Tool Handle

    TX Tool Handle

    This ergonomically designed handle for TorcUP hydraulic tooling can be attached to the tool for safe operation and positioning of the tool, while keeping hands clear of any reaction points.
    TX Low Point Reaction Paddle

    TX Low Point Reaction Paddle

    The paddle allows for a reaction point below the tool or against the edge of the flange.
    TX Link Pin With Landyard

    TX Link Pin With Landyard

    The lanyard design for this accessory allows the link pin to be tethered to the tool, preventing lost or dropped pins when switching out ratchet links.
    TX Spanner Wrench

    TX Spanner Wrench

    The line of spanner wrenches for the TX Series, available in closed end standard sizes and open or closed custom sizes, is a unique solution for applications where traditional links will not fit.
    TX Hex Reducer

    TX Hex Reducer

    Custom hex reducers are available for all TX models to reduce the hex openings on the links. These bushings can reduce 3/16” (5mm) or more, depending on need.
    TX Hex to Square Drive Adaptor

    TX Hex to Square Drive Adaptor

    Custom hex to square drive adaptors are available to insert a square drive (or hex drive) into a link for use with industrial impact sockets.
