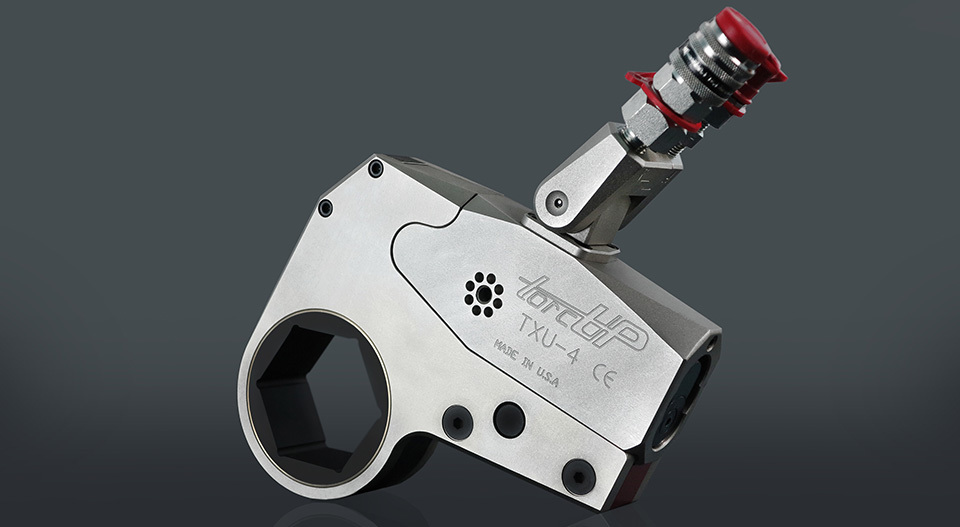

TXU SERIES Uniswivel Low Profile Hydraulic Torque Wrench

The Flattest And Most Application Rotatable Hydraulic Bolting Tool In The Industry

The TXU series covers all the bases when it comes to giving you tight clearance application fitment. Not only does this tool address nut circumference issues, it also allows for shorter tool length fitment between application obstructions. With the hose swivel assembly positioned above the tool housing torque can be applied on every application with an accuracy of +/-3%.

Even More Application Adjustable!

  • Made in the USA
  • Three Models From 192 Ft/Lbs to 8,630 Ft/Lbs 260nm. to 11699nm.
  • Every Unit Calibrated In ISO17025 Laboratory
  • Manufactured With AQ Certified Alloys
  • Genuine TorcUP Design

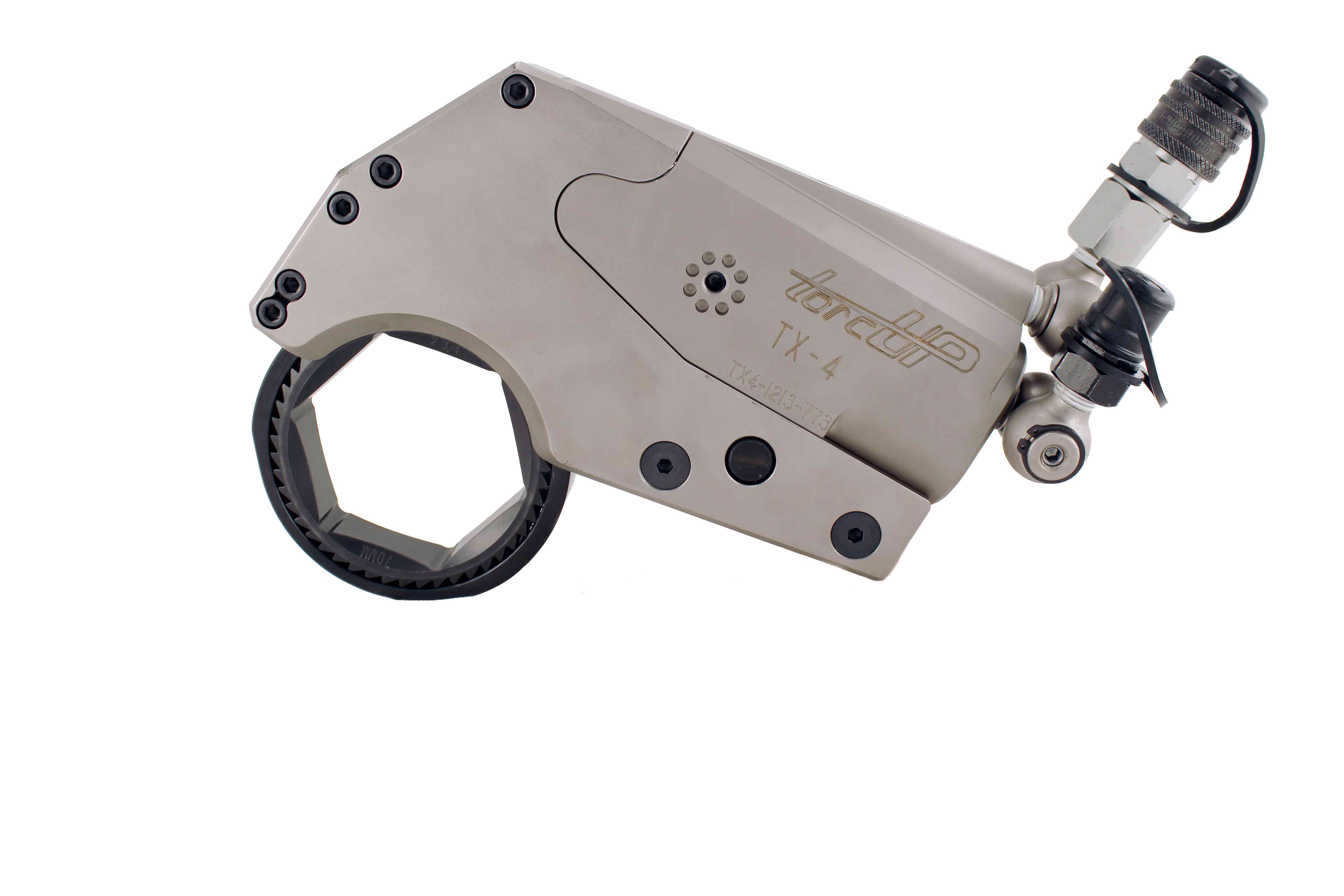

We started with the greatest low clearance hydraulic wrench, the TX series, and made it even more application adjustable. Every limited clearance bolting application poses a challenge, but now with the TXU further problems are solved. With the hose swivel assembly being positioned above the tool the hydraulic cylinder and link length are shortened, thus getting the tool into the “IN BETWEEN” challenging applications.

  • Features

    Uni-Swivel Design

    Uni-Swivel Design

    The 360 degree by 180 degree uni-swivel allows for shorter tool length, accommodating applications with obstructions.
    Patented “Peanut-Shaped” Piston

    Patented “Peanut-Shaped” Piston

    This feature allows the cylinder and ratchet link to be the same width. Friction reducing sliders prevent wear on the piston.
    Hex Link Cassettes

    Hex Link Cassettes

    Each link is fitted with steel alignment pins connecting the lower reaction area for added strength.
    No Drip Quick Connect Couplers

    No Drip Quick Connect Couplers

    These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation.
    Cylinder and Link Material

    Cylinder and Link Material

    Both cylinder and link are manufactured from 4340 Aircraft Quality high strength steel alloy.
    Nose Radius

    Nose Radius

    Tight nose radius allows this tool to fit in applications where clearance constraints make other tools too bulky.
    In-Line Reaction Pad

    In-Line Reaction Pad

    This design ensures torsion-free reaction every time.
    Link Pin

    Link Pin

    One pin for link to cylinder engagement - no tool required for swapping ratchet links.
  • Technical Data

    Model NumberTXU-2TXU-4TXU-8
    Min Torque (ft/lbs) 192 395 830
    Max Torque (ft/lbs) 1928 3950 8630
    Output Accuracy +/- 3% +/- 3% +/- 3%
    Repeatability 100% 100% 100%
    Duty Cycle 100% 100% 100%
    Cylinder Weight 4.00lbs / 1.8kg 6.90lbs / 3.1kg 12.50lbs / 5.7kg
    Link Weight From (lbs) 2.40 5.40 11.90
    Link Weight To (lbs) 3.50 7.60 14.50
    Link Weight From (kg) 1.00 2.40 5.50
    Link Weight To (kg) 1.50 3.40 6.50
    Hex range from 3/4" / 19mm 1" / 25mm 1 7/8" / 49mm
    Hex range to 2 9/16" / 65mm 3 1/8" / 80mm 4 5/8" / 120mm

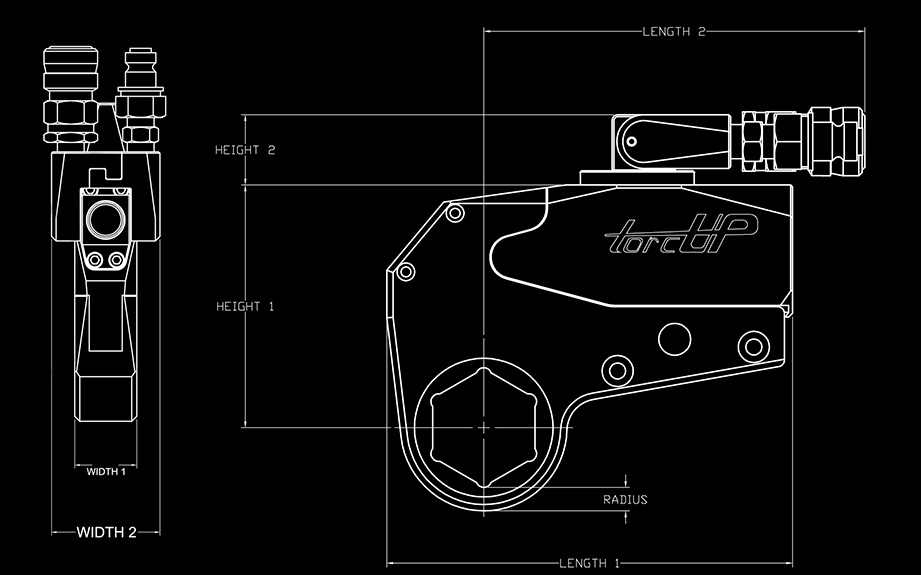

    Model NumberTXU-2TXU-4TXU-8
    Length 1 6.45" / 163.8mm 7.87" / 199.9mm 10.18" / 258.6mm
    Length 2 5.99" / 152.1mm 6.55" / 166.4mm 7.34" / 186.4mm
    Width 1 1.25" / 31.8mm 1.63" / 41.4mm 2.05" / 52.1mm
    Width 2 2.19" / 55.6mm 2.26" / 57.4mm 2.26" / 57.4mm
    Radius 0.36" / 9.1mm 0.46" / 11.7mm 0.54" / 13.7mm
    Height 1 3.84" / 97.5mm 4.93" / 125.2mm 6.18" / 157.0mm
    Height 2 1.11" / 28.2mm 1.30" / 33.0mm 1.30" / 33.0mm
  • Accessories

    TXU Inline Reaction Arm

    TXU Inline Reaction Arm

    This arm can be attached to the drive cylinder and ratchet link to provide a reaction area further from the tool.
    TXU Tool Handle

    TXU Tool Handle

    This ergonomically designed handle for TorcUP hydraulic tooling can be attached to the tool for safe operation and positioning of the tool, while keeping hands clear of any reaction points.
    TXU Low Point Reaction Paddle

    TXU Low Point Reaction Paddle

    The paddle allows for a reaction point below the tool or against the edge of the flange.
    TXU Link Pin With Landyard

    TXU Link Pin With Landyard

    The lanyard design for this accessory allows the link pin to be tethered to the tool, preventing lost or dropped pins when switching out ratchet links.
    TXU Spanner Wrench

    TXU Spanner Wrench

    The line of spanner wrenches for the TX Series, available in closed end standard sizes and open or closed custom sizes, is a unique solution for applications where traditional links will not fit.
    TXU Hex Reducer

    TXU Hex Reducer

    Custom hex reducers are available for all TX models to reduce the hex openings on the links. These bushings can reduce 3/16” (5mm) or more, depending on need.
    TXU Hex to Square Drive Adaptor

    TXU Hex to Square Drive Adaptor

    Custom hex to square drive adaptors are available to insert a square drive (or hex drive) into a link for use with industrial impact sockets.
