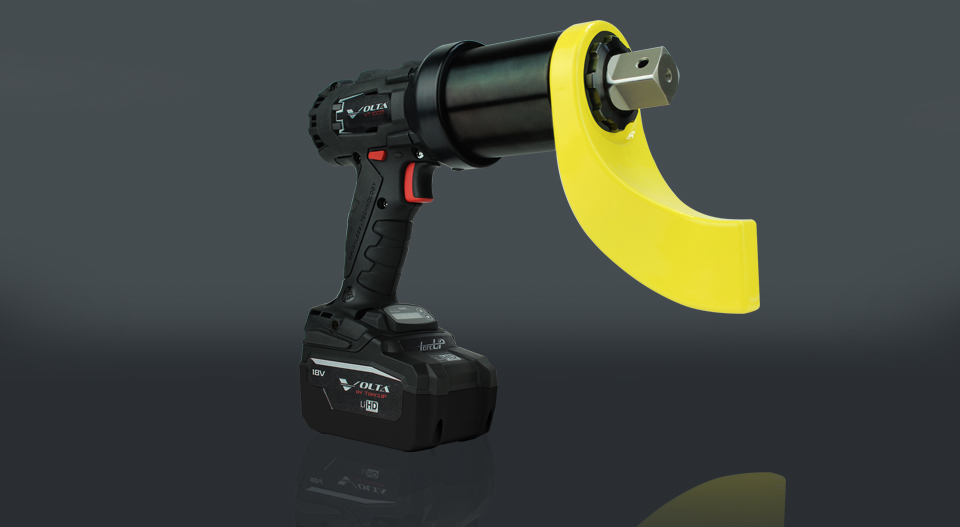

VT Series Battery-Powered Torque Wrench

The Freedom and Flexibility of Cordless Operation Combined with Industrial Torque Power

With the introduction of the VT Series, your ability to torque industrial fasteners has now become as simple as a quick charge away.  The VOLTA has been engineered to master any application effortlessly.  Fully charged in under 60 minutes, the VOLTA’s lithium battery provides enough power to take on hundreds of fastenings with no hoses or cords to limit your reach. Within the VOLTA is a digital motor vectoring system that provides accurate and repeatable torque throughout each model’s full range capabilities. The VOLTA exemplifies the durability, reliability and safety that has embodied every industrial wrench crafted by TorcUP since the company’s founding in 1996.

Cutting-Edge Internal Brushless Technology

  • Made In USA
  • Four Models From 120 Ft/Lbs to 3,000 Ft/Lbs - 175 Nm. to 4045 Nm.
  • Lithium Ion 6.2 Ah Rechargeable Battery
  • Every Unit Calibrated In ISO17025 Laboratory
  • Genuine TorcUP Design

The Volta’s precision-engineered brushless motor delivers efficiency, longer run-time and extended durability, while its configurable torque range capabilities ensure ease of use and repeatability. The tool’s internal brushless technology also allows the wrench to run cooler, providing bolting application safety and versatility in harsh environments. Additional features include digital display, torque memory settings, automatic reaction arm release and ft/lb to Nm conversion. Contact us for a Free Demo today!

  • Specifications

    Model NumberVOLTA-500VOLTA-1000VOLTA-2000VOLTA-3000
    Square Drive 3/4" 1" 1" 1"
    Min Torque (ft/lbs) 120 250 500 750
    Max Torque (ft/lbs) 500 1000 2000 3000
    Min Torque (nm) 175 350 700 1025
    Max Torque (nm) 655 1355 2700 4045
    Weight w/o Arm & Battery 8.3lbs/3.8kg 11.5lbs/5.2kg 13.1lbs/5.9kg 19.6lbs/8.9kg
    Weight w/ Arm & Battery 10.4lbs/4.7kg 14.5lbs/6.6kg 15.9lbs/7.2kg 22.5lbs/10.2kg
    RPM @ min torque 12 2 1 0.5
    RPM @ max torque 20 8 5 2
    Requirements Charger Requirements: 110 - 120 V (50-60 Hz)
    and 230 - 240 V (50-60 Hz)

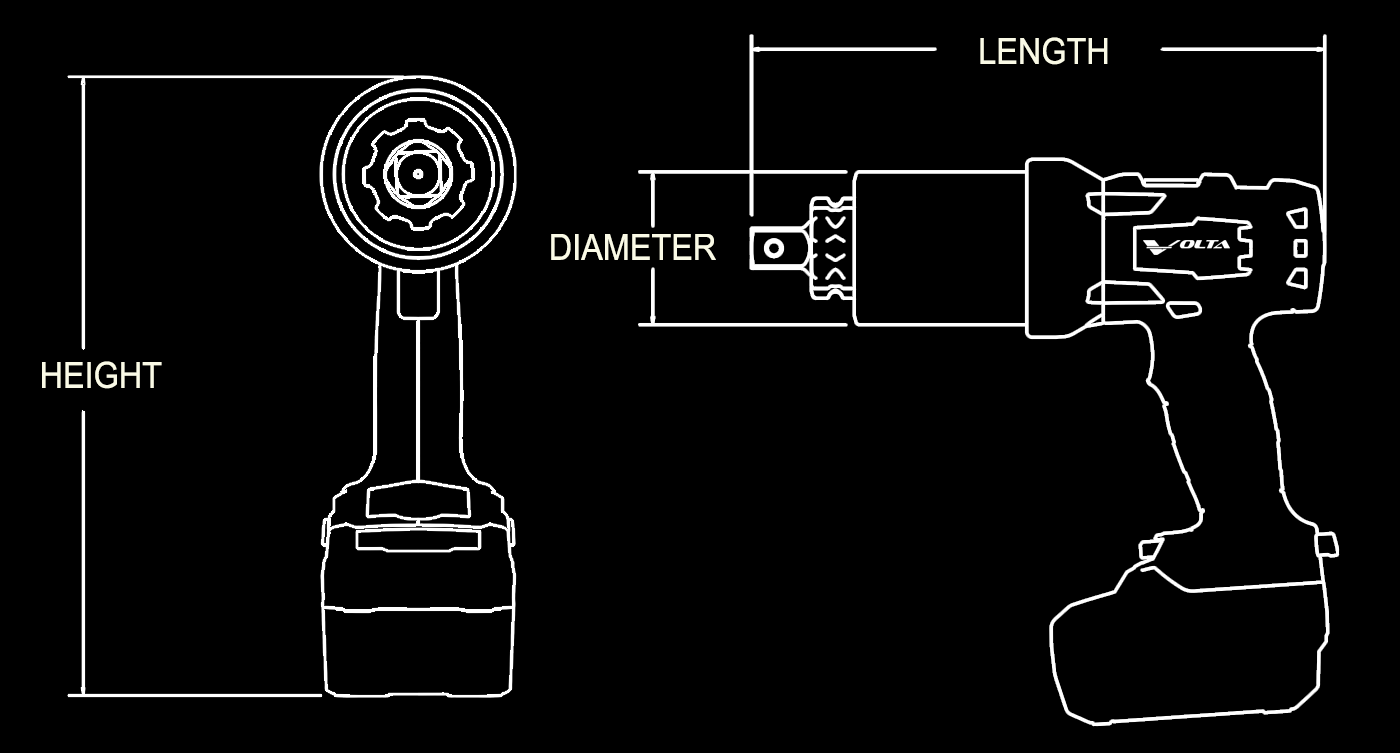

  • Dimensions

    Model NumberVOLTA-500VOLTA-1000VOLTA-2000VOLTA-3000
    Height 10.40” / 264.2mm 10.40” / 264.2mm 10.40” / 264.2mm 10.40” / 264.2mm
    Square Drive 0.75"/ 19.05mm 1" / 25.4mm 1" / 25.4mm 1" / 25.4mm
    Length 8.86” / 225.0mm 10.97” / 278.6mm 11.45” / 290.8mm 13.94” / 354.1mm
    Diameter 2.56" / 65.0mm 2.85" / 72.4mm 3.09" / 78.5mm 3.75" / 95.3mm
  • Features

    Alloy Steel Square Drive

    Alloy Steel Square Drive

    The hardened alloy steel square drive is designed for durability and direct socket engagement.

    Ergonomic Slip-Resistant Pistol Grip

    Ergonomic Slip-Resistant Pistol Grip

    The pistol grip of the VT Series is engineered to allow for firm and comfortable positioning. The glass-filled nylon handle has a sturdy, slip-resistant overmold.

    High-Efficiency Brushless Motor

    High-Efficiency Brushless Motor

    The high-efficiency brushless motor provides longer run-time and lower operational temperatures.

    Cast Reaction Arm

    Cast Reaction Arm

    The sturdy "non-welded" construction provides a safe and strong reaction point.

    Internal Gear Drive

    Internal Gear Drive

    The VT Series has a patented planetary gear design that provides consistent torque with no impacting.

    Soft-Start Trigger

    Soft-Start Trigger

    The soft-start trigger provides added safety to the operator, and the ergonomic selector allows forward and reverse operation without grip repositioning.

    18V 6.2 Ah LiHD Battery

    18V 6.2 Ah LiHD Battery

    The VT Series has an 18V 6.2 Ah LiHD rechargeable battery that provides extended run-time and the freedom of cordless operation.

  • Accessories

    6.2 Ah Rechargeable Battery

    6.2 Ah Rechargeable Battery

    The Volta's 18V 6.2 Ah LiHD Battery provides cordless freedom and extended run-time.

    Lithium Ion Volta Battery Charger

    Lithium Ion Volta Battery Charger

    The Volta's premium, air-cooled lightning fast charger will have you ready to torque in under 60 minutes.

    Long Extended Reaction Arm

    Long Extended Reaction Arm

    This arm provides a longer reach, working with deepwell sockets.
    Sliding Straght Arm

    Sliding Straght Arm

    This arm is designed for socket to socket reaction. The drive/cup design protects the adjacent nut from direct reaction and is adjustable from 4" to 12".

    Straight Reaction Arm

    Straight Reaction Arm

    This arm is designed to accommodate a reaction point at a 90 degree angle from the drive.
    Weld Blank

    Weld Blank

    This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the VT Series and includes heat treating specifications.

    Nose Extension

    Nose Extension

    The extensions fasten directly to the nose of the tool, allowing for reach into hard to access applications. This works with the standard reaction arm.
    Socket to Socket Reaction Arm

    Socket to Socket Reaction Arm

    Allows the operator to react against the adjacent nut using a cup to protect it. It allows to adjust the socket to socket between 4” and 6” away from the square drive of the tool.
