TorcUP STRYK SR electronic torque wrench
Electronically controlled tightening, with torque and angle control and recording
Features
USB port
For software updates and exporting measurement data.
Touchscreen operation
Control box with 7.5" display (640 × 480 pixels) and 512 kB memory: multiple operating modes, data recording and on-site calibration, in metric and imperial units.
Single cable
One cable between wrench and control box for both power and data.
Rugged square drive
For direct connection of the impact socket.
Servo motor with angle encoder
Electric servo motor that measures the torque, with an accurate angle encoder; for 115 V or 230 V.
Cast reaction arm
One piece, without welds: a safe and strong reaction point.
Planetary gearbox
A patented planetary gear train multiplies the torque without extra weight or size.
Ergonomic handle
Firm and comfortable to hold; made of durable, impact-resistant nylon.
Two-way trigger
Switch between tightening and loosening without moving your grip.
Accessories
Long reaction arm
For extra reach, with long (deep-well) impact sockets.

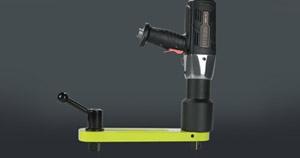

Sliding reaction arm
For reacting from socket to socket; the cap protects the adjacent nut. Adjustable from approx. 100 to 300 mm.
Straight reaction arm
For a reaction point at right angles (90°) to the drive.
Weld blank
Reaction arm of unmachined steel, to make your own custom arm. With spline for the SR and heat treatment specifications.
Nose extension
Fits directly onto the nose of the wrench, for hard-to-reach bolts; works with the standard reaction arm.
Positioning handle
Durable, ergonomic handle for left- and right-handed use, positionable vertically and horizontally. Fitted at the factory or on site; fits all SR models.
