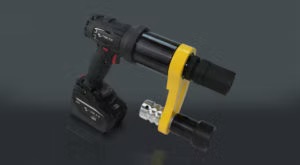

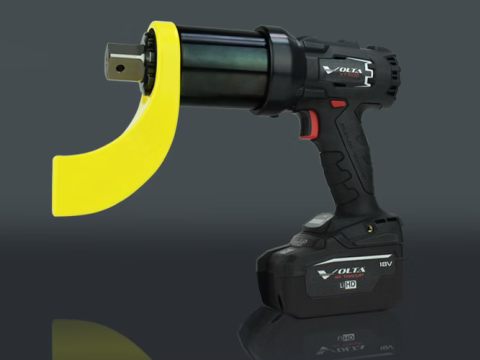

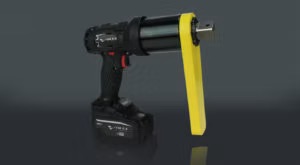

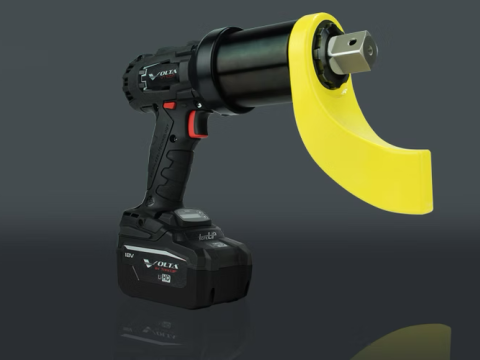

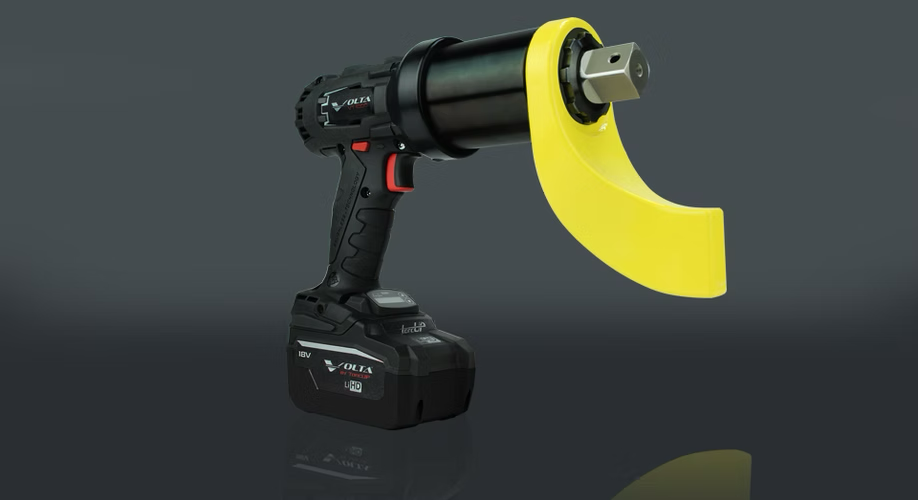

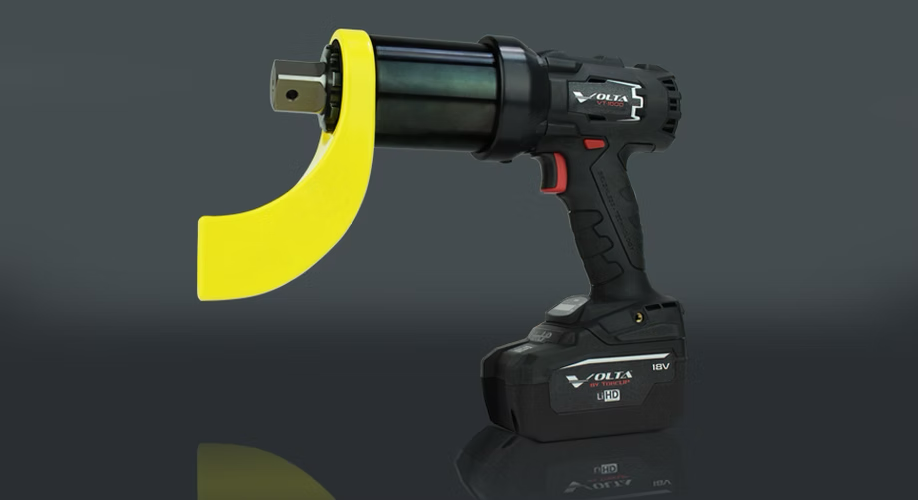

TorcUP Volta VT cordless torque wrench

Industrial torque without hoses or cords

Brand

TorcUP
Drive

Battery
Torque range

160 – 8,133 Nm
Available for

Buy, Rent

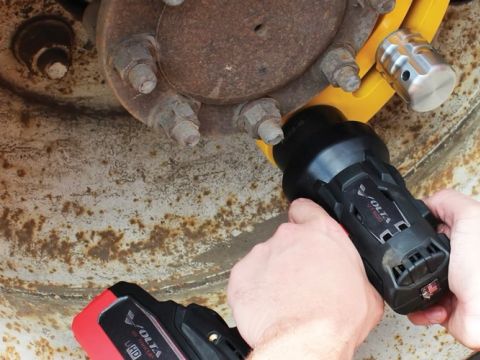

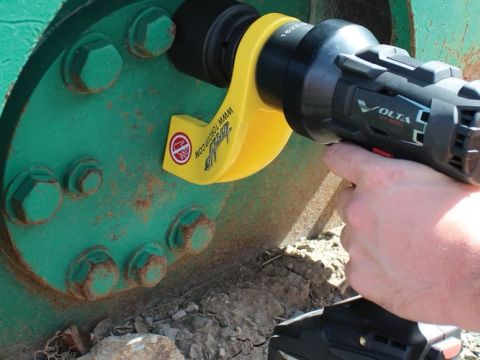

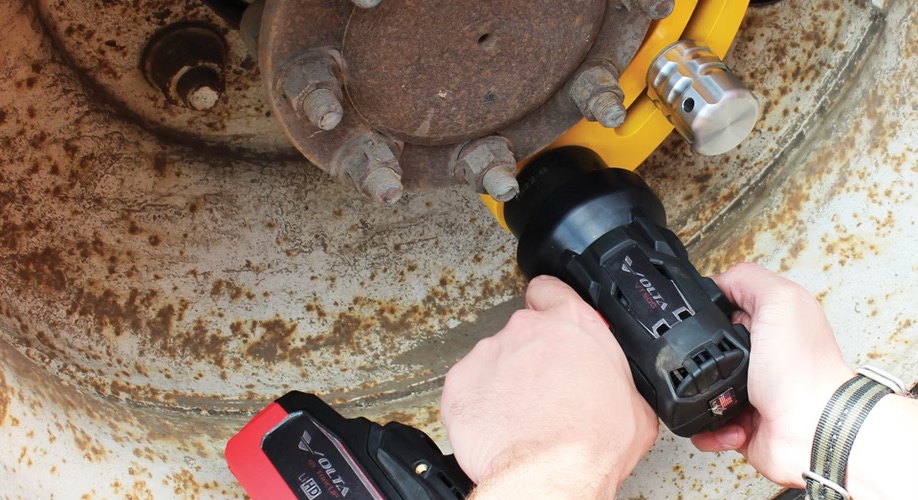

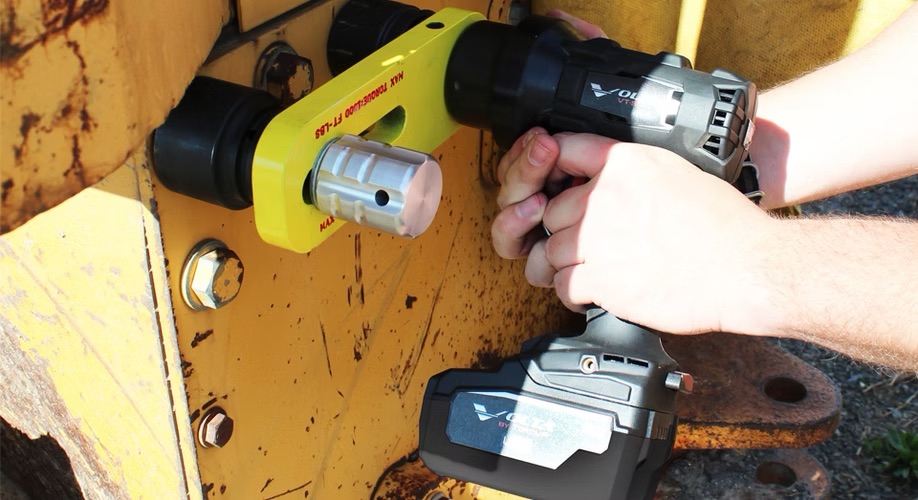

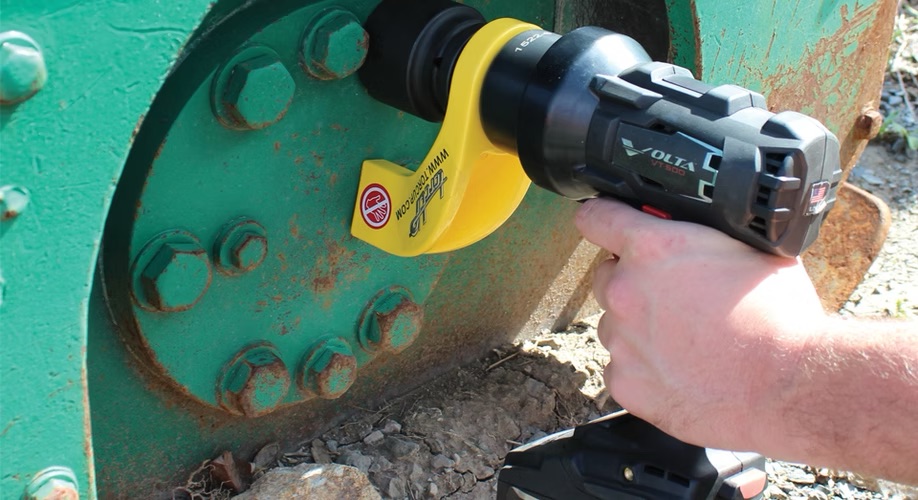

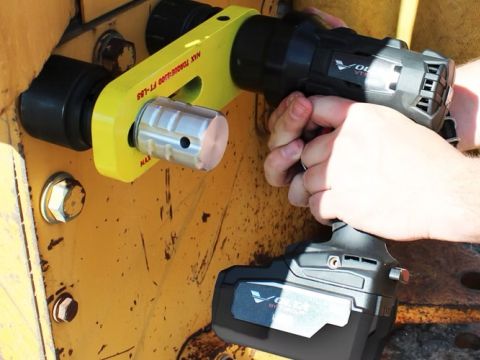

With the Volta VT you tighten industrial bolts without hoses or cords. The lithium-ion battery is full within 60 minutes and provides enough energy for hundreds of bolts. A digital motor vectoring system ensures accurate and repeatable torque across the full range of every model. Just as durable, reliable and safe as every TorcUP wrench since 1996.

Ergonomically shaped, suits any application with impact sockets
Brushless motor with digital motor vectoring system
Lithium-ion battery (18 V), fully charged within 60 minutes

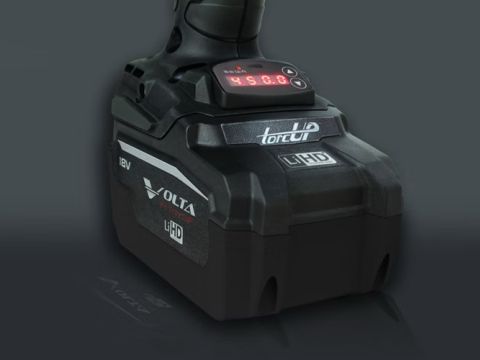

Digital display with torque memory and ft·lbs ↔ Nm conversion
Made in the USA
Every wrench calibrated in an ISO 17025 laboratory

The brushless motor is efficient, lasts a long time on one battery and has a long service life. It also runs cooler, which makes the wrench safe and suitable for harsh conditions. The Volta also has an adjustable torque range, a digital display, torque memory, automatic reaction arm release and conversion between ft·lbs and Nm.

Features

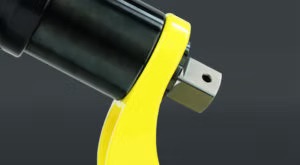

Alloy steel square drive

Hardened, durable and for direct connection of the impact socket.

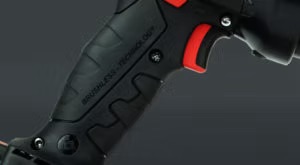

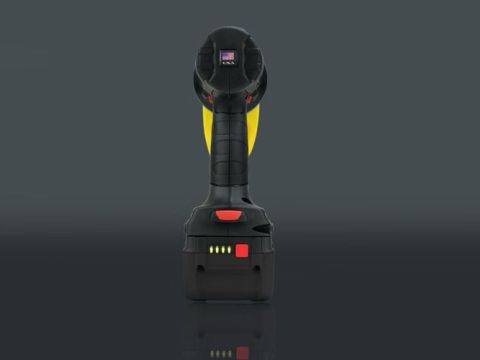

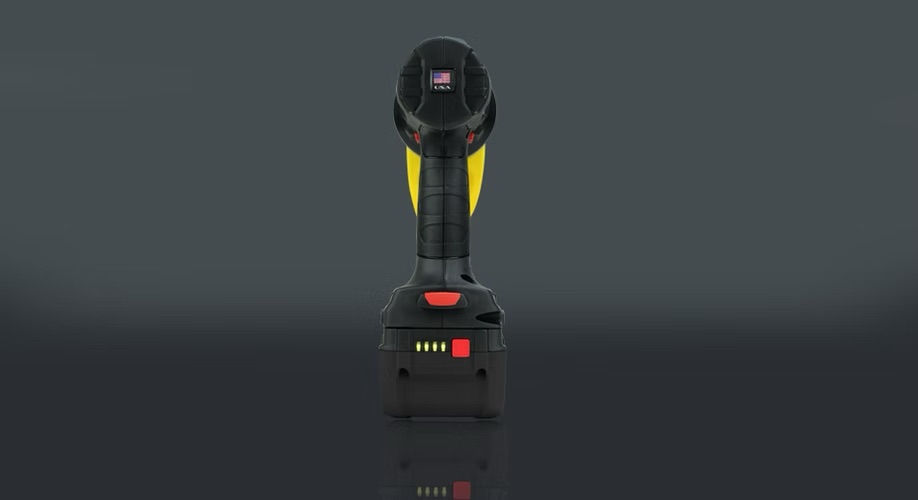

Ergonomic pistol grip

Firm and comfortable to hold: glass-fibre reinforced nylon grip with a non-slip rubber layer.

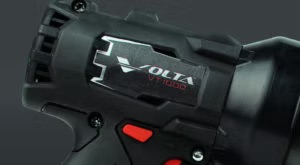

High-efficiency brushless motor

Work longer on one battery, with a lower operating temperature.

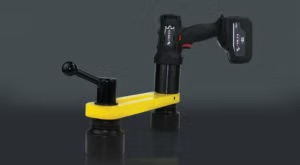

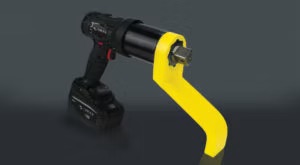

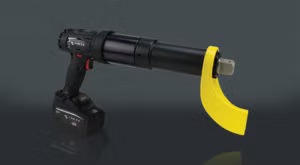

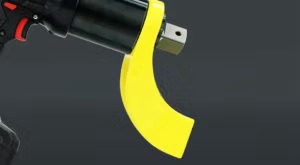

Cast reaction arm

One piece, without welds: a safe and strong reaction point.

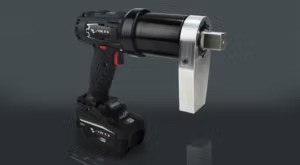

Cast reaction arm

One piece, without welds: a safe and strong reaction point.

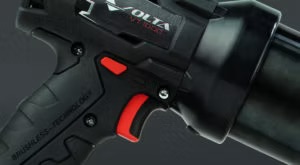

Soft-start trigger

Extra safe for the user; with the selector switch you change direction without moving your grip.

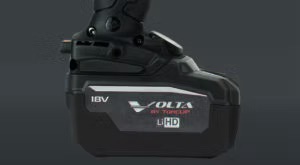

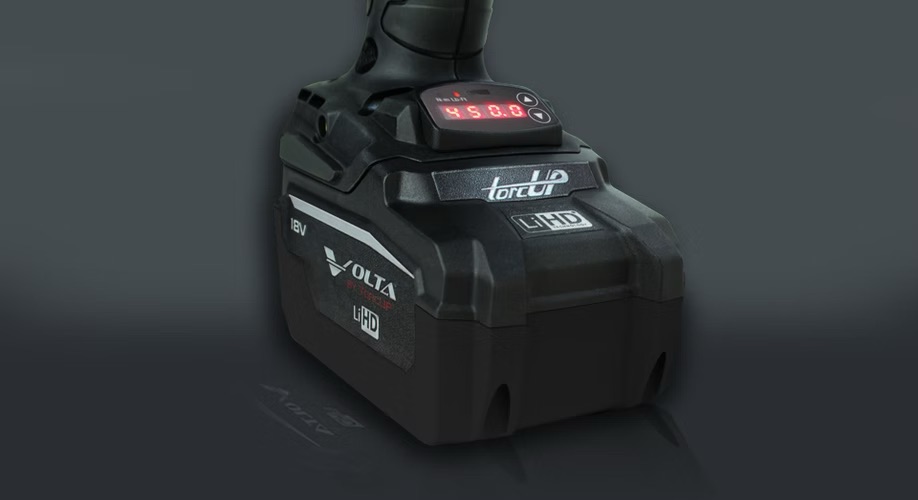

Battery 18 V / 8.0 Ah LiHD

Rechargeable battery for long, cordless work.

Specifications

Model

Min. torque (Nm)

Max. torque (Nm)

Power supply

Weight (kg)

In rental fleet

VT-500

160

670

3/4"

3.0

Yes

VT-1000

330

1360

4.3

Yes

VT-2000

680

2710

5.0

Yes

VT-3000

1020

4030

7.9

Yes

VT-6000

1626

8133

1 1/2"

14.7

Full technical specifications

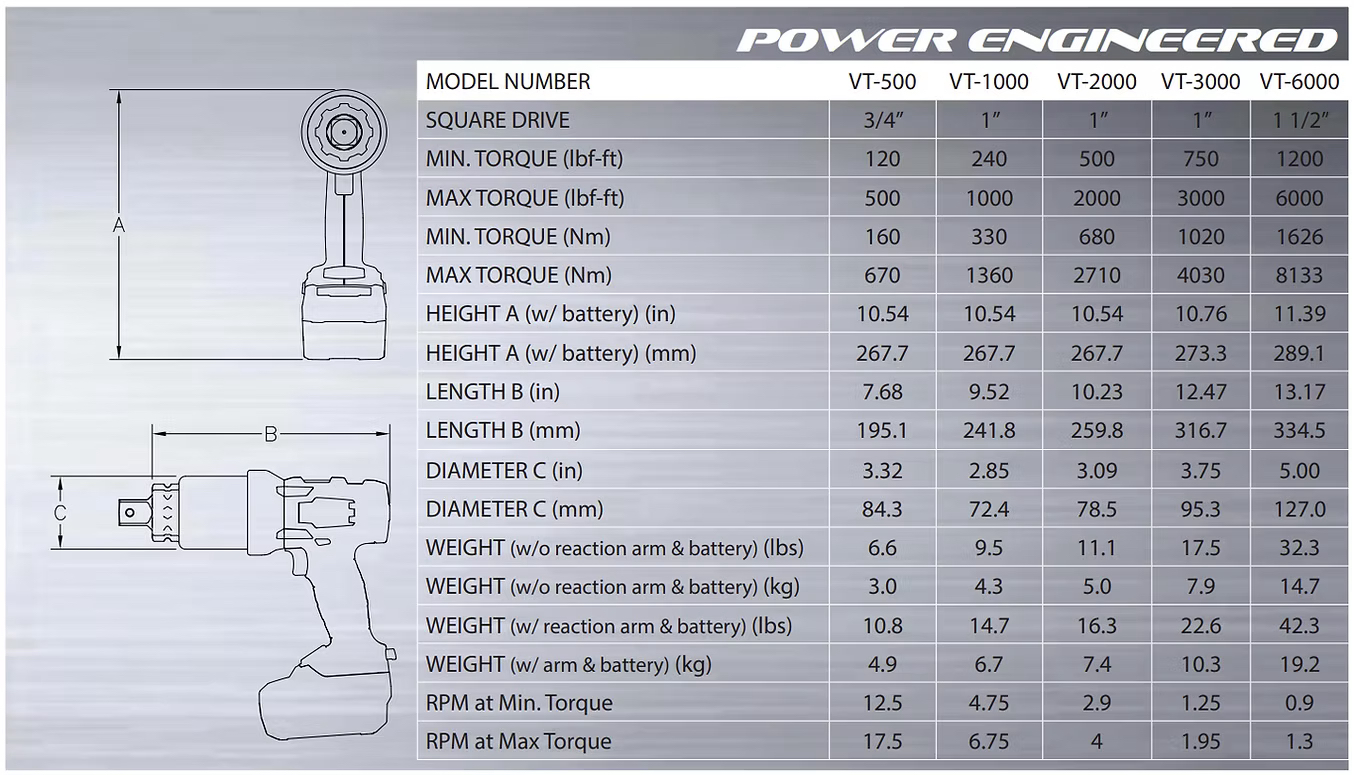

Specifications

Specification	VT-500	VT-1000	VT-2000	VT-3000	VT-6000
Square drive	3/4"	1"	1"	1"	1 1/2"
Min. torque (lbf-ft)	120	240	500	750	1200
Max. torque (lbf-ft)	500	1000	2000	3000	6000
Min. torque (Nm)	160	330	680	1020	1626
Max. torque (Nm)	670	1360	2710	4030	8133
Height A (with battery) (inch)	10.54	10.54	10.54	10.76	11.39
Height A (with battery) (mm)	267.7	267.7	267.7	273.3	289.1
Length B (inch)	7.68	9.52	10.23	12.47	13.17
Length B (mm)	195.1	241.8	259.8	316.7	334.5
Diameter C (inch)	3.32	2.85	3.09	3.75	5.00
Diameter C (mm)	84.3	72.4	78.5	95.3	127.0
Weight (without reaction arm & battery) (lbs)	6.6	9.5	11.1	17.5	32.3
Weight (without reaction arm & battery) (kg)	3.0	4.3	5.0	7.9	14.7
Weight (with reaction arm & battery) (lbs)	10.8	14.7	16.3	22.6	42.3
Weight (with arm & battery) (kg)	4.9	6.7	7.4	10.3	19.2
RPM at min. torque	12.5	4.75	2.9	1.25	0.9
RPM at max. torque	17.5	6.75	4	1.95	1.3
