Cube series – pipe cutting and bevelling

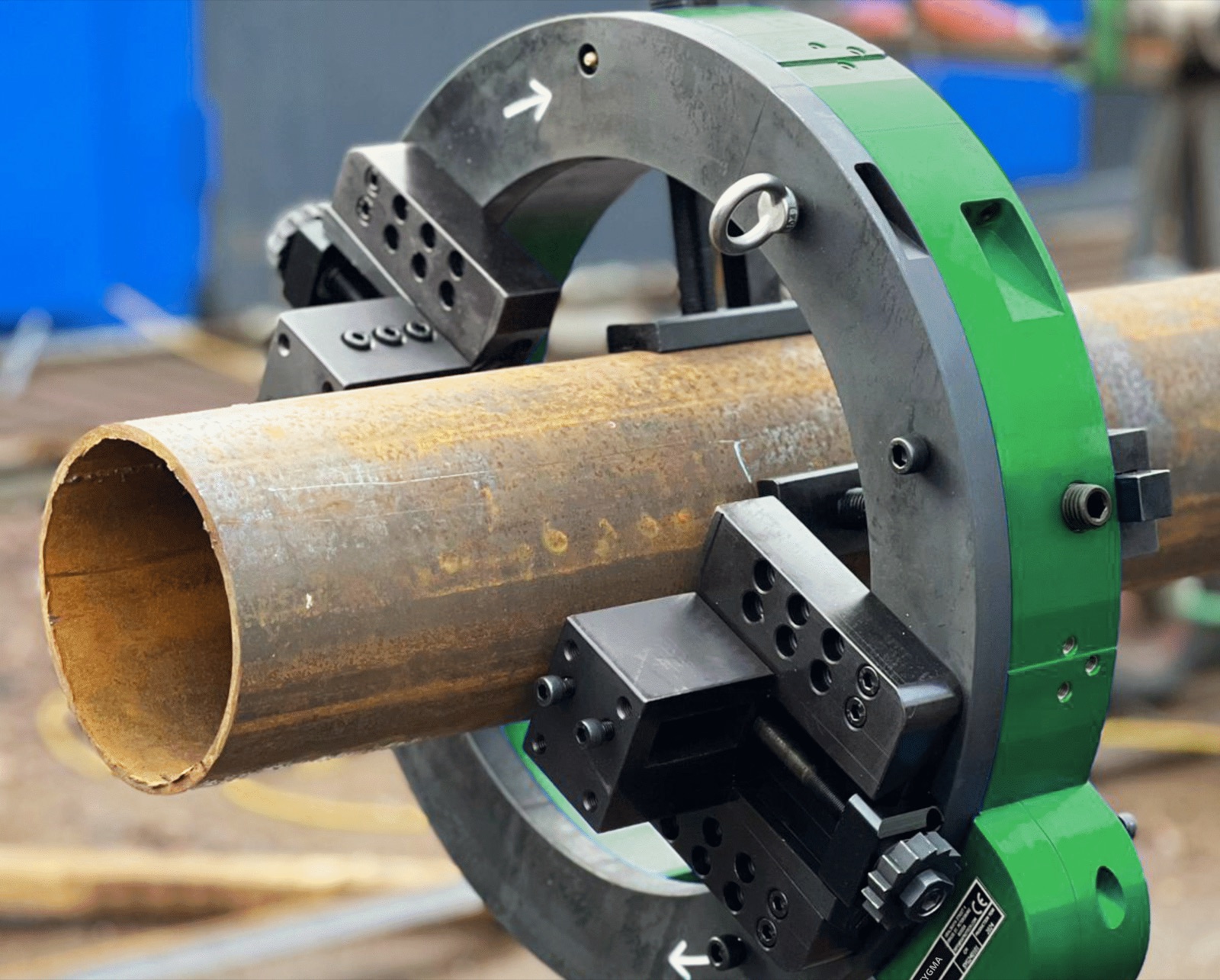

Sygma Cube pipe cutting and bevelling machines
Cutting, bevelling and preparing pipes for welding, from 1 to 56 inch
-
BrandSygma
-
Models21, in light and heavy-duty versions
-
MachiningCutting and bevelling
-
ClampingClamshell around the pipe
-
Clamping rangeØ 25 – 1,430 mm (1 – 56″)
-
Machining rangeØ 25 – 1,430 mm (1 – 56″)
-
Available forBuy
The Sygma™ Cube series is the solution for cutting and bevelling pipes and preparing welds. The machines are built for the harshest conditions. Thanks to the split frame (clamshell) you mount the machine quickly around the pipe, which considerably reduces downtime. The Cube cuts in-line, or cuts and bevels at the same time, for a fast and perfect result.
The models
| Model | Working range (inch) | Working range (mm) | Speed |
|---|---|---|---|
| Cube-89 | 1 – 3″ | 25 – 89 | 42 rpm |
| Cube-168 | 2 – 6″ | 50 – 168 | 22 rpm |
| Cube-230 | 3 – 8″ | 80 – 230 | 15 rpm |
| Cube-275 | 5 – 10″ | 125 – 275 | 14 rpm |
| Cube-305 | 6 – 10″ | 150 – 305 | 13 rpm |
| Cube-325 | 6 – 12″ | 168 – 325 | 13 rpm |
| Cube-377 | 8 – 14″ | 219 – 377 | 12 rpm |
| Cube-426 | 10 – 16″ | 273 – 426 | 12 rpm |
| Cube-457 | 12 – 18″ | 300 – 457 | 12 rpm |
| Cube-508 | 14 – 20″ | 355 – 508 | 12 rpm |
| Cube-560 | 16 – 22″ | 400 – 560 | 12 rpm |
| Cube-610 | 18 – 24″ | 457 – 610 | 11 rpm |
| Cube-630 | 20 – 26″ | 480 – 630 | 11 rpm |
| Cube-660 | 22 – 28″ | 508 – 660 | 11 rpm |
| Cube-715 | 24 – 30″ | 560 – 715 | 11 rpm |
| Cube-762 | 26 – 32″ | 600 – 762 | 11 rpm |
| Cube-830 | 28 – 34″ | 660 – 830 | 10 rpm |
| Cube-914 | 30 – 36″ | 762 – 914 | 10 rpm |
| Cube-1066 | 36 – 42″ | 914 – 1,066 | 10 rpm |
| Cube-1230 | 42 – 48″ | 1,066 – 1,230 | 10 rpm |
| Cube-1430 | 48 – 56″ | 1,230 – 1,430 | 8 rpm |
More technical data on request.
Features

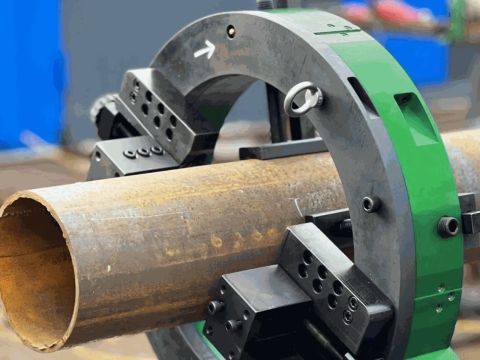

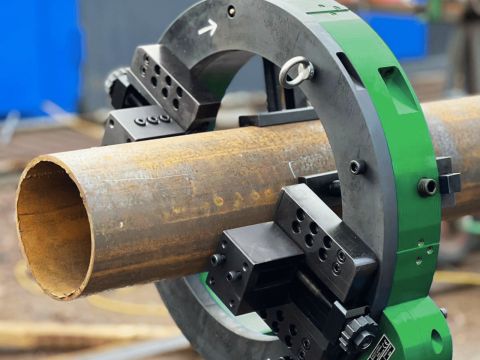

Split frame (clamshell)
The frame opens and clamps around the pipe: quickly mounted, much less downtime.
Cutting and bevelling
Accurate in-line cutting, or cutting and bevelling in one operation.
Light and heavy-duty versions
Choose a light or a heavy-duty version.
For harsh conditions
Designed and built for safe and guaranteed work on site.
Adaptable to your application
Doesn't the standard configuration suit your job? Sygma supplies options and custom solutions; we are happy to think along.
Applications

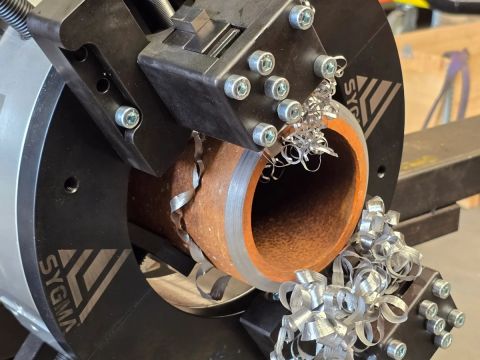

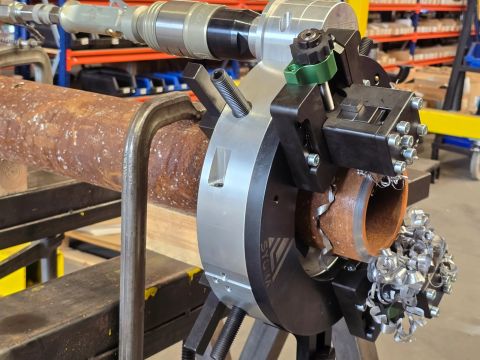

Pipe cutting
Accurate in-line cutting of pipes.

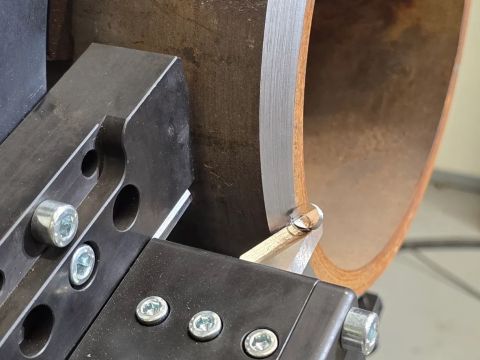

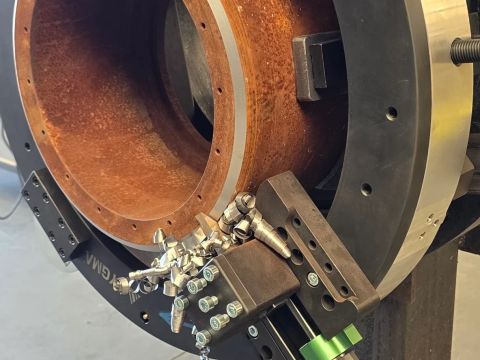

Bevelling
Cutting and bevelling in one operation.
Weld preparation
Preparing pipe ends for welding.
Technical data
-
Working rangeØ 25 – 1,430 mm (1 – 56″), across 21 modelsRange
-
Speed8 – 42 rpm (depending on model)Range
-
FrameSplit (clamshell)Construction
-
VersionsLight and heavy dutyConstruction
