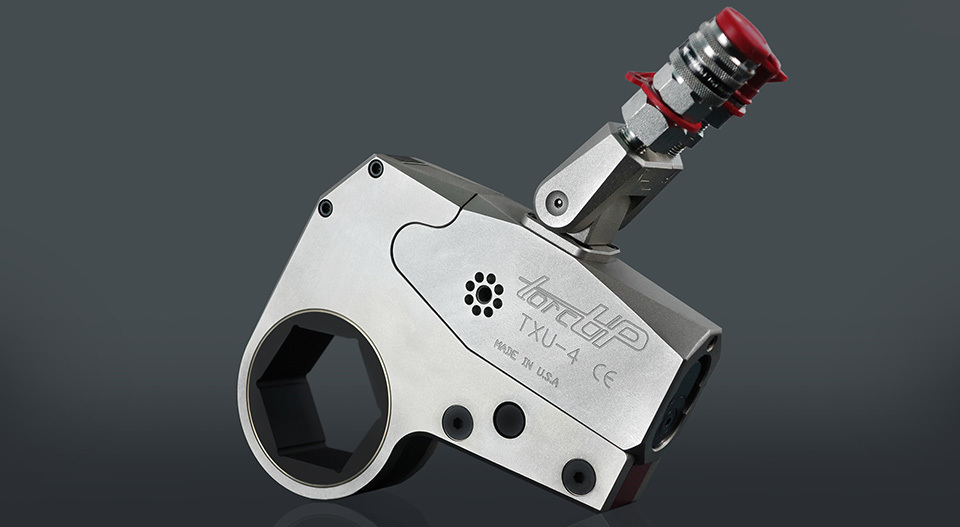

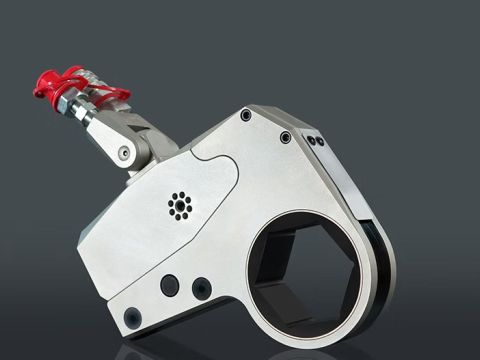

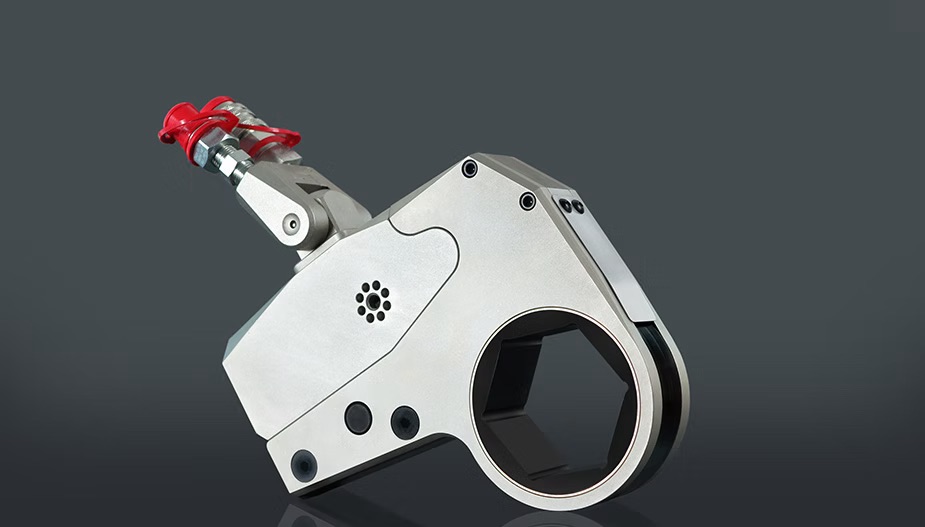

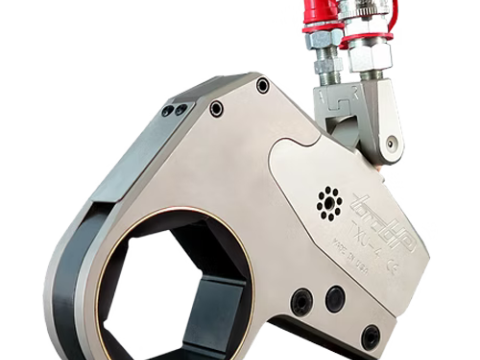

TorcUP TXU hydraulic torque wrench
The low-profile TX, with the hose connection on top: even shorter between obstacles
Features

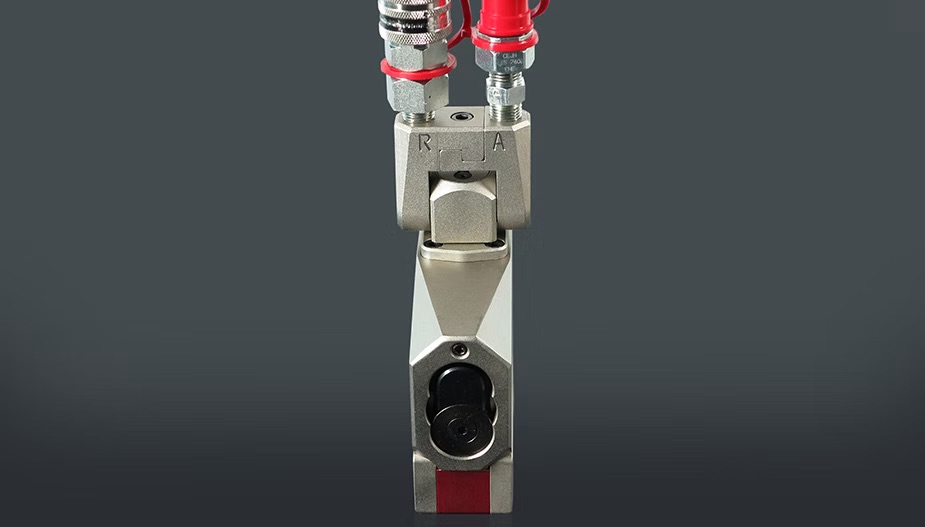

Uni-Swivel hose connection
Swivels 360° × 180° and makes the tool shorter, so it also fits between obstacles.

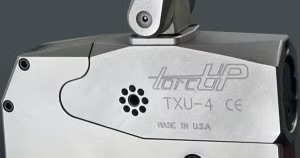

Patented peanut-shaped piston
Cylinder and cassette are the same width. Glide pads reduce the friction and wear of the piston.

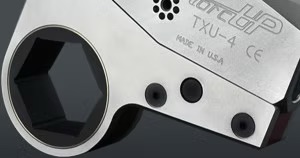

Hex cassettes (left)
Every cassette has steel alignment pins to the lower reaction surface, for extra rigidity.
Drip-free quick couplers
Safety couplers with a 3:1 safety factor, easy to connect; the collar locks the coupler.
Cylinder and cassette made of 4340 steel
Both are made of very strong aircraft-grade 4340 steel.
Small nose radius
This lets the wrench fit where other wrenches are too large.
In-line reaction surface
Ensures a reaction without torsion on the wrench every time.
Single connecting pin
One pin connects the cassette to the cylinder: change cassettes without tools.
Variants
SDL cassette with square drive
Spanner wrench cassette, for even less space
Slimline cassette, for example for BOPs
Fully split cassette
Ring wrench cassettes from 17 to 222 mm, or custom
Accessories

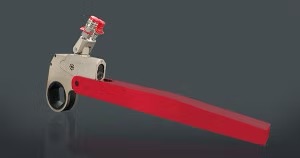

TXU in-line reaction arm
Attaches to the cylinder and the cassette, for a reaction point further from the wrench.

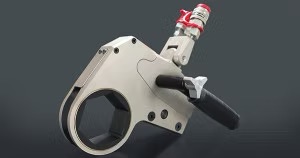

TXU handle
Ergonomic handle for safe operation and positioning, with hands clear of the reaction points.

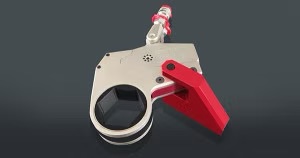

TXU low reaction paddle
Provides a reaction point under the wrench or against the edge of the flange.
TXU connecting pin with lanyard
The lanyard keeps the connecting pin on the wrench, so it does not get lost or fall when changing cassettes.

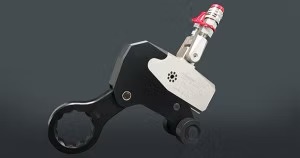

TXU spanner wrenches
Closed standard sizes and open or closed custom versions, for applications where normal cassettes do not fit.
TXU hex reducers
For all TX models, to reduce the hex of a cassette; 3/16" (5 mm) or more, as required.
TXU hex to square drive adapter
Turns a cassette into a square drive (or hex drive), for use with industrial impact sockets.
