Seiffert RollCheck MAX laser roll alignment tool (SX-6150)

For medium and large machines: rolls from 101 mm to 2.4 m, more than 3 m apart
  • Brand
    Seiffert
  • Model
    SX-6150
  • Laser
    Green
  • Max. distance between rolls
    3 m or more
  • Roll diameter
    101 – 2,400 mm
  • Accuracy
    < 0.09 mm/m (0.001″ per ft)
  • Power supply
    Rechargeable lithium-ion battery, 16 – 20 hours
  • Complete weight
    21.0 kg
  • Available for
    Buy
Request a quote
Seiffert RollCheck MAX laser roll alignment tool (SX-6150)

The Seiffert RollCheck® MAX is the laser system for aligning large rolls and rollers parallel in medium to large machines. You attach it with the supplied straps to rolls from 101 mm to 2.4 m in diameter, and measure over distances of 3 m or more. The bright green laser lines and the patented reflected laser beam show immediately whether the rolls are parallel.

We supply and rent out the RollCheck, and provide training with it. Prefer to have it measured? Our measurement service also aligns your rolls and rollers on site.

Features

For medium and large machines

Rolls from 101 mm to 2.4 m in diameter, over 3 m or more.

Green laser

A green laser line looks ten times brighter to the eye than a red one.

Patented reflected laser beam

The transmitter projects laser lines onto the reflector, which reflects them back to the transmitter. This shows you immediately whether the rolls are parallel.

Two angles at once

You see the vertical angle (pitch) and the horizontal angle (parallelism) at the same time, and adjust the roll directly.

One person, no training

One person aligns in a few minutes, without training.

Compact

Also fits in tight spaces; everything comes in a rugged case.

Crowned rolls too

Also suitable for measuring and aligning crowned rolls.

Less downtime and scrap

No more time-consuming trial and adjustment; this prevents rejects and lost production.

Rechargeable battery

Lithium-ion polymer battery (3.7 V, 4,000 mAh) for 16 to 20 hours of continuous use.

Applications

Paper and board

Aligning rolls and rollers of paper machines parallel.

Printing

Checking and aligning rolls in printing presses.

Film, plastics and textiles

Rolls in production lines for film, plastics and textiles.

Metal and food

Also in the metal and food industries.

Replacing rolls

After a roll change, the new roll is quickly parallel again.

Technical data

  • Max. distance between rolls
    3 m (10 ft) or more
    Measurement
  • Roll diameter
    101 – 2,400 mm (4″ – 8 ft)
    Measurement
  • Accuracy
    < 0.09 mm/m (0.001″ per ft)
    Measurement
  • Type
    2 green laser lines (532 nm), fan angle 45°
    Laser
  • Power
    < 1 mW, class 2
    Laser
  • Line width
    0.43 mm at 2.8 m
    Laser
  • Calibration
    In the factory; check annually
    Laser
  • Battery
    Lithium-ion polymer, 3.7 V, 4,000 mAh
    Power supply
  • Operating time
    16 – 20 hours continuous at 22 °C
    Power supply
  • Temperature
    Operating 0 – 52 °C; storage −20 – 60 °C
    Environment
  • Protection
    Water resistant, dustproof and shock resistant
    Environment
  • Transmitter
    SX-6150T, 305 × 419 × 152 mm, 4.0 kg
    Construction
  • Reflector
    SX-6150R, 305 × 419 × 152 mm, 4.1 kg
    Construction
  • Mounting
    2 elastic straps (254 – 1,143 mm) and 2 tension straps of 3 m
    Construction
  • Case
    736 × 457 × 275 mm, 12.8 kg
    Construction
  • Complete weight
    21.0 kg
    Construction

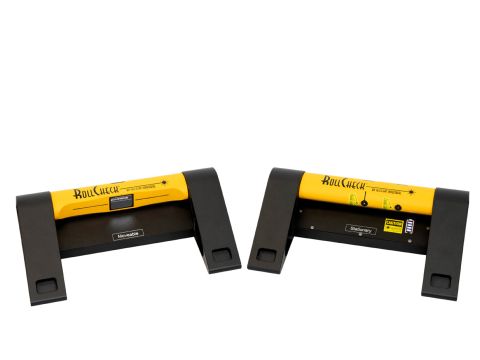

  • Supplied as standard
    Laser transmitter
    Reflector
    Mounting straps
    Case with foam insert
    Scope of delivery
