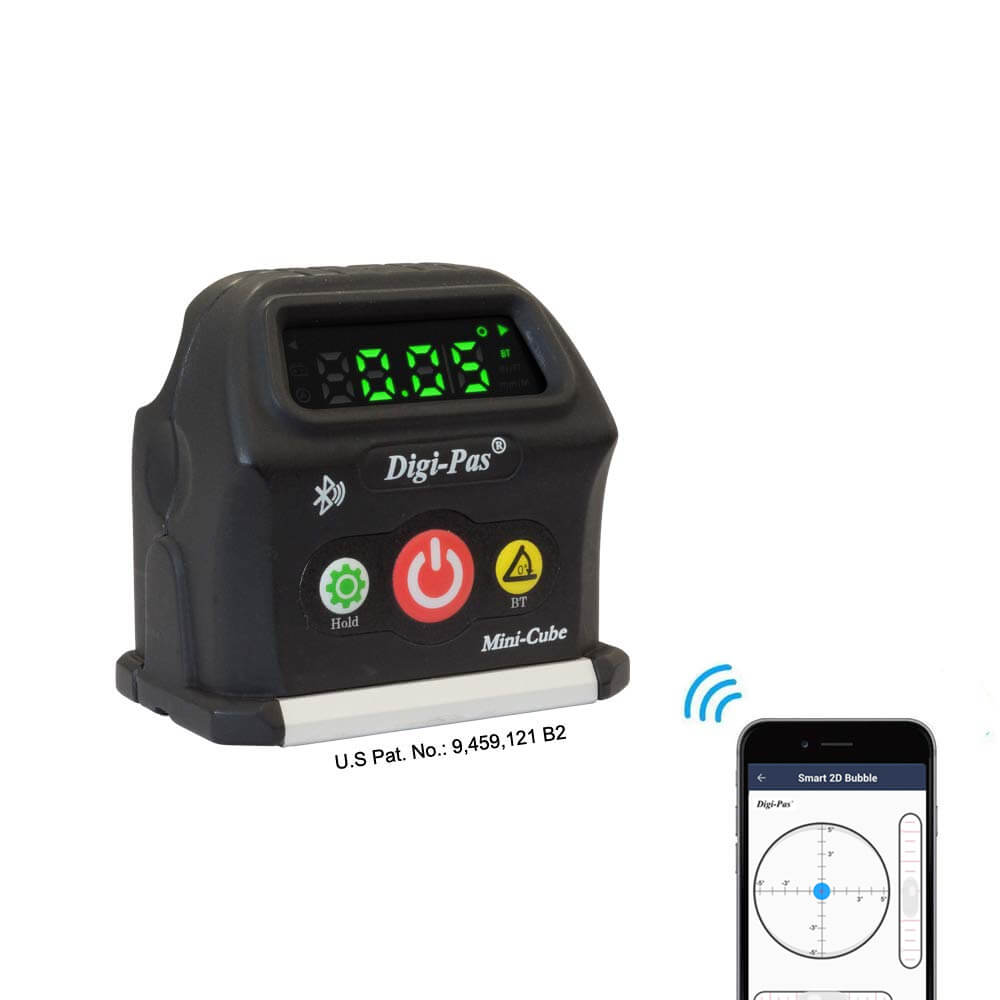

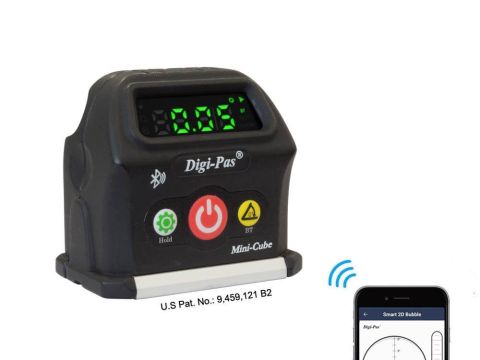

DWL-90Pro Smart Cube level 0.05°
2-axis Smart Cube level with Bluetooth and magnet, 0.05°
Features
Mode key
Switch the display between the X and Y axis at the push of a button.
Resolution 0.05°
Measuring resolution of 0.05°.
Measuring range
360° (4 × 90°) for the X-axis (1-axis); 0 – 5° for X and Y at the same time (2-axis).
Instant unit conversion
Switch instantly between degrees (°), mm/m and inch/ft.
Alternate zero
Set any angle as the reference (zero) and measure relative angles to that plane.

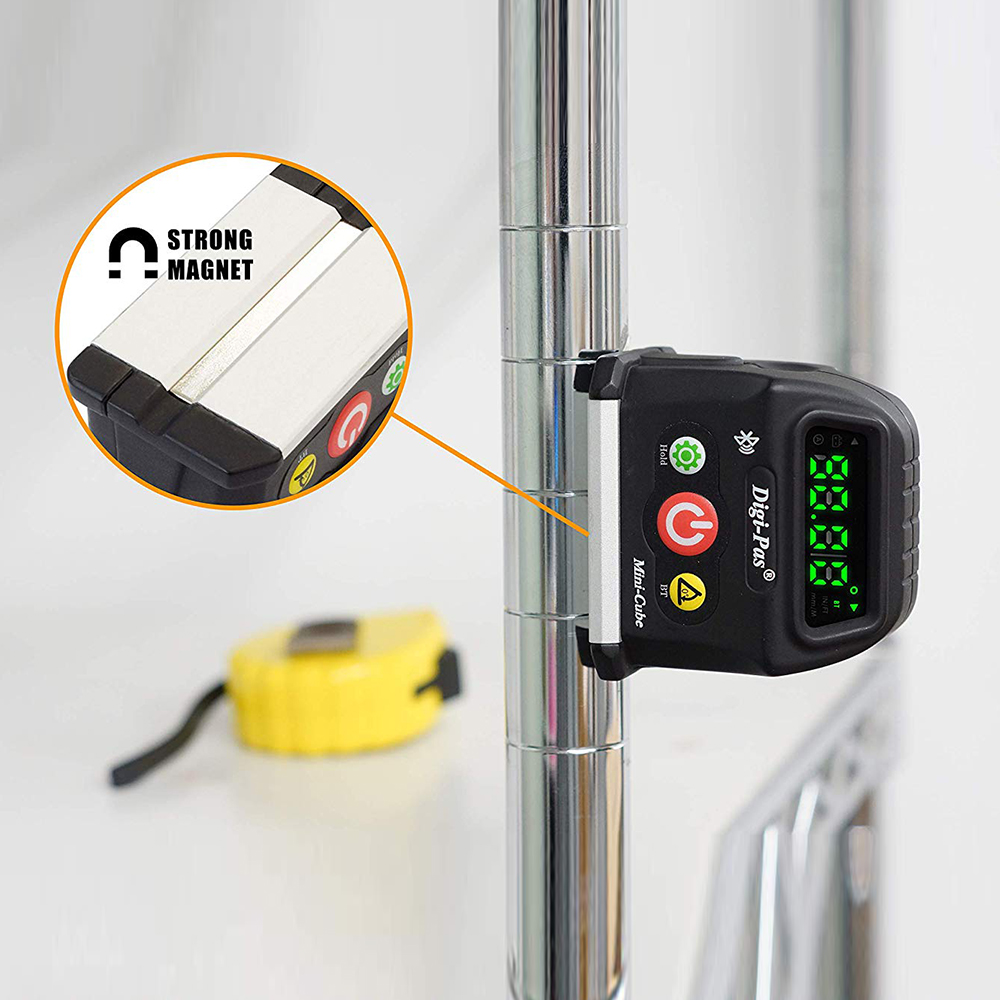

Built-in magnet
Strong magnets in the base hold the level on metal surfaces, so you can work hands-free.
Absolute level setting (ABS)
Symmetrical, absolute measurement in both the forward and the reversed (180°) position, at any measuring angle.
User self-calibration
Easily restore the level yourself to the accuracy set in the factory.
Applications
Satellite dishes
Align a satellite dish quickly and effortlessly: level the mast and set the dish to the correct elevation angle.
Physiotherapy
Measuring range of motion (flexion and extension of arms and legs) to track patients' recovery.
Orthopaedics
Assessing bone positions in diagnosis and orthopaedic surgery (in the operating theatre the instrument must be sterilised).
Window frames
Accurate measurements when installing window frames.
Frames and doors
Installing and checking frames: square, level relative to the wall and with right angles.
Solar panels
Installing solar panels and periodically checking the correct tilt angle.

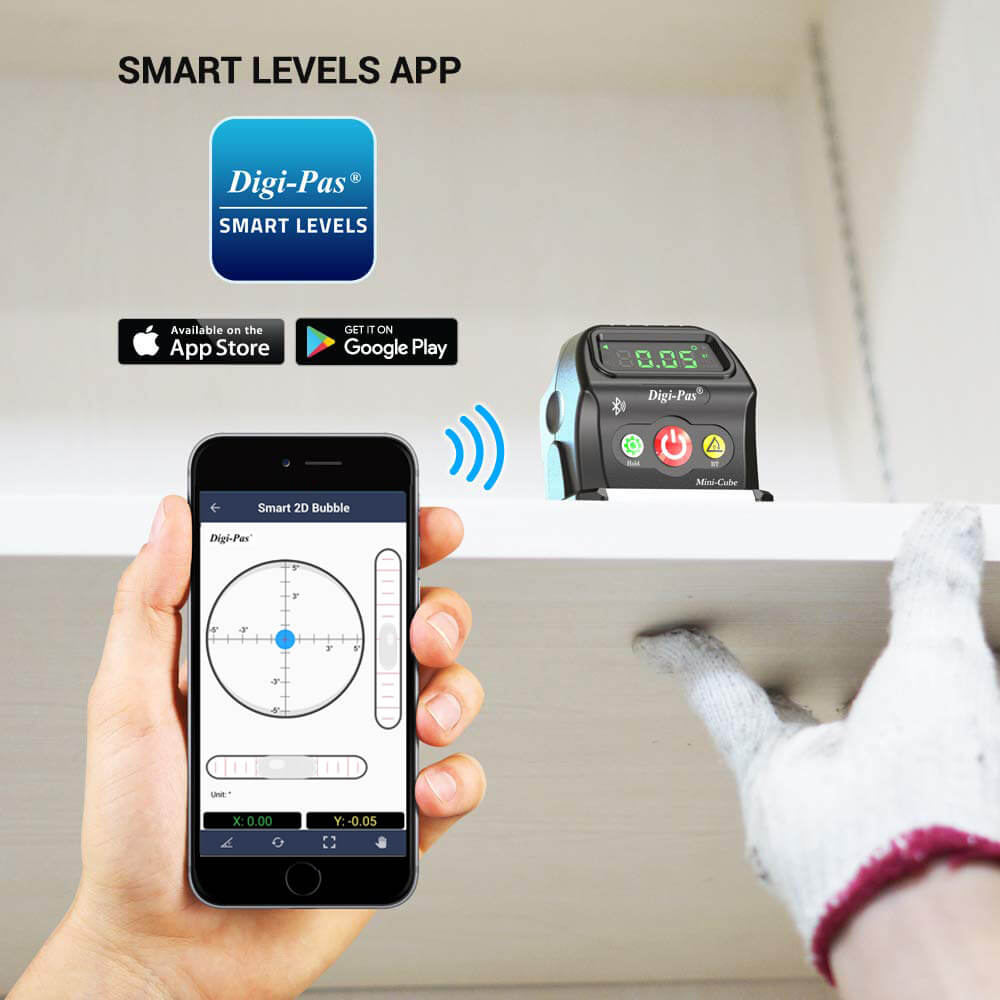

Software & apps
