Alpha series – flange machining
Sygma Alpha-I 4-30 flange facing machine
Versatile flange facing machine with S-Gear™ and three clamping options, from 4 to 30 inch
-
BrandSygma
-
MachiningFlange machining
-
ClampingInternal (ID)
-
Clamping rangeØ 99.5 – 756 mm (3.9 – 29.8″)
-
Machining rangeØ 100 – 780 mm (3.9 – 30.7″)
-
Machine weight38.5 kg (without base)
-
Available forBuy, Rent

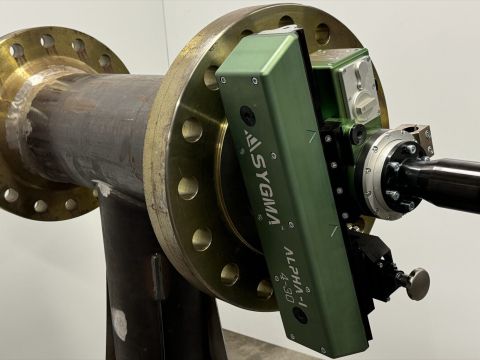

The Sygma™ Alpha-I 4-30 is an exceptionally versatile flange facing machine with the S-Gear™ system. Thanks to the triple clamping, with a collet and two clamping feet, you clamp it in bores from Ø 99.5 to 756 mm. It machines flanges from Ø 100 to 780 mm (4 to 30 inch).
Like all machines in the Alpha series, the Alpha-I 4-30 is available with different, interchangeable drives. Thanks to the modular design you can also quickly and easily convert an Alpha-I for orbital milling, with the Legacy milling unit.
Does the standard version not meet your requirements, or would you like to rent the machine for one job? Contact us; we will be happy to discuss the possibilities.
Features
Quick to set up, easy to operate
Plug & play: the machine is quickly mounted on the flange and can be operated without extensive instruction.

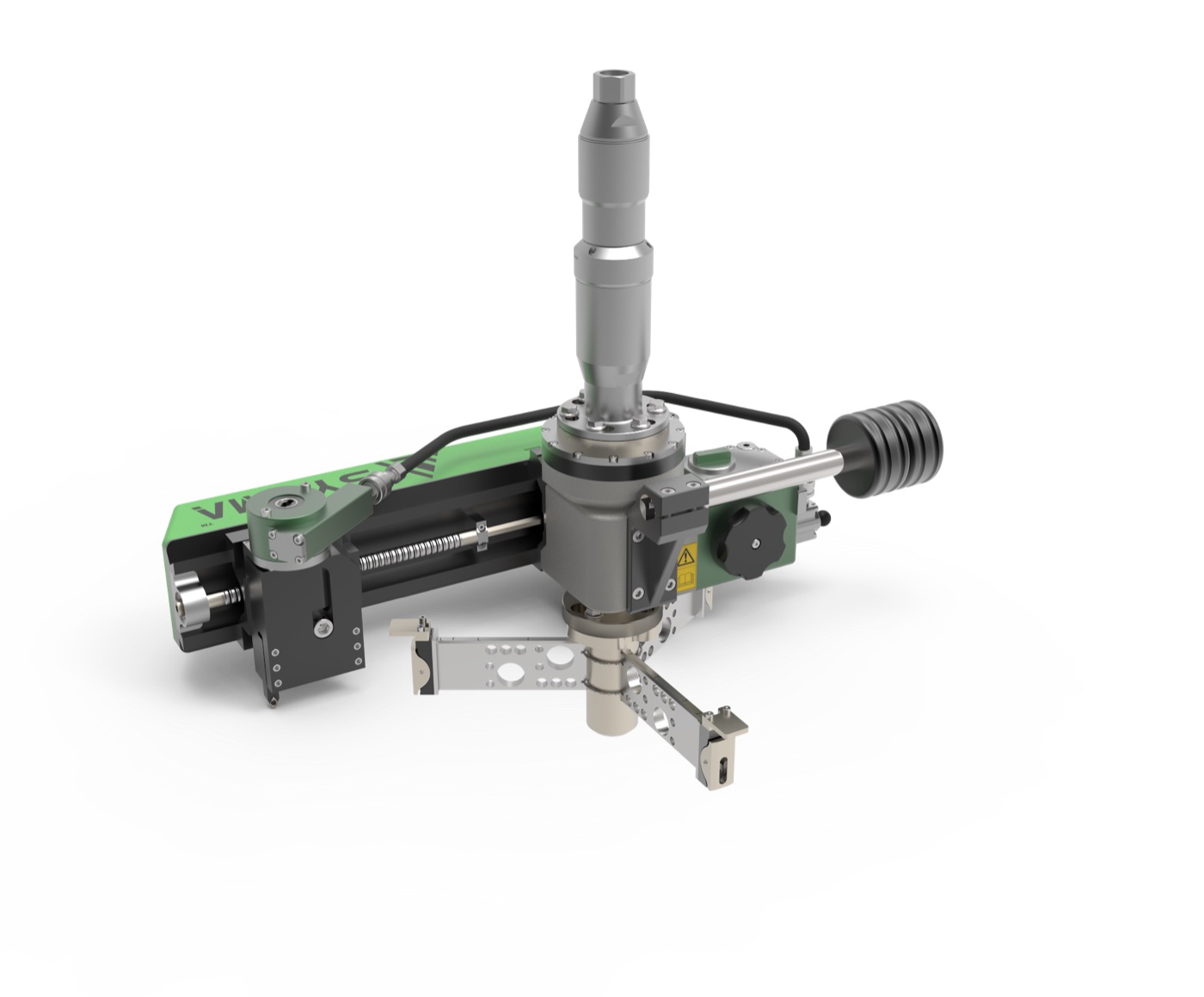

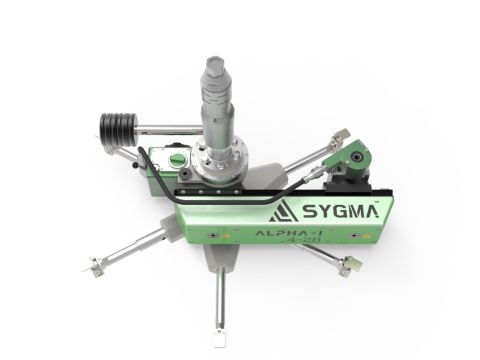

Three ways of clamping
A collet and two clamping feet: this lets one machine fit a large range of bores.
S-Gear™ gearbox
Five preset axial feeds; between those settings you can adjust the feed if a different finish is needed. The tool moves in both directions (feed in and feed out).
Automatic toolpost (optional)
The tool feeds automatically, for an even result without manual work.
Variable feed with presetting
Preset the feed and adjust it during work.
Multiple surface finishes
From a spiral groove (stock finish) to a smooth finish: you choose the finish that suits the gasket.
Adaptable to your application
Doesn't the standard configuration suit your job? Sygma supplies options and custom solutions; we are happy to think along.
Applications

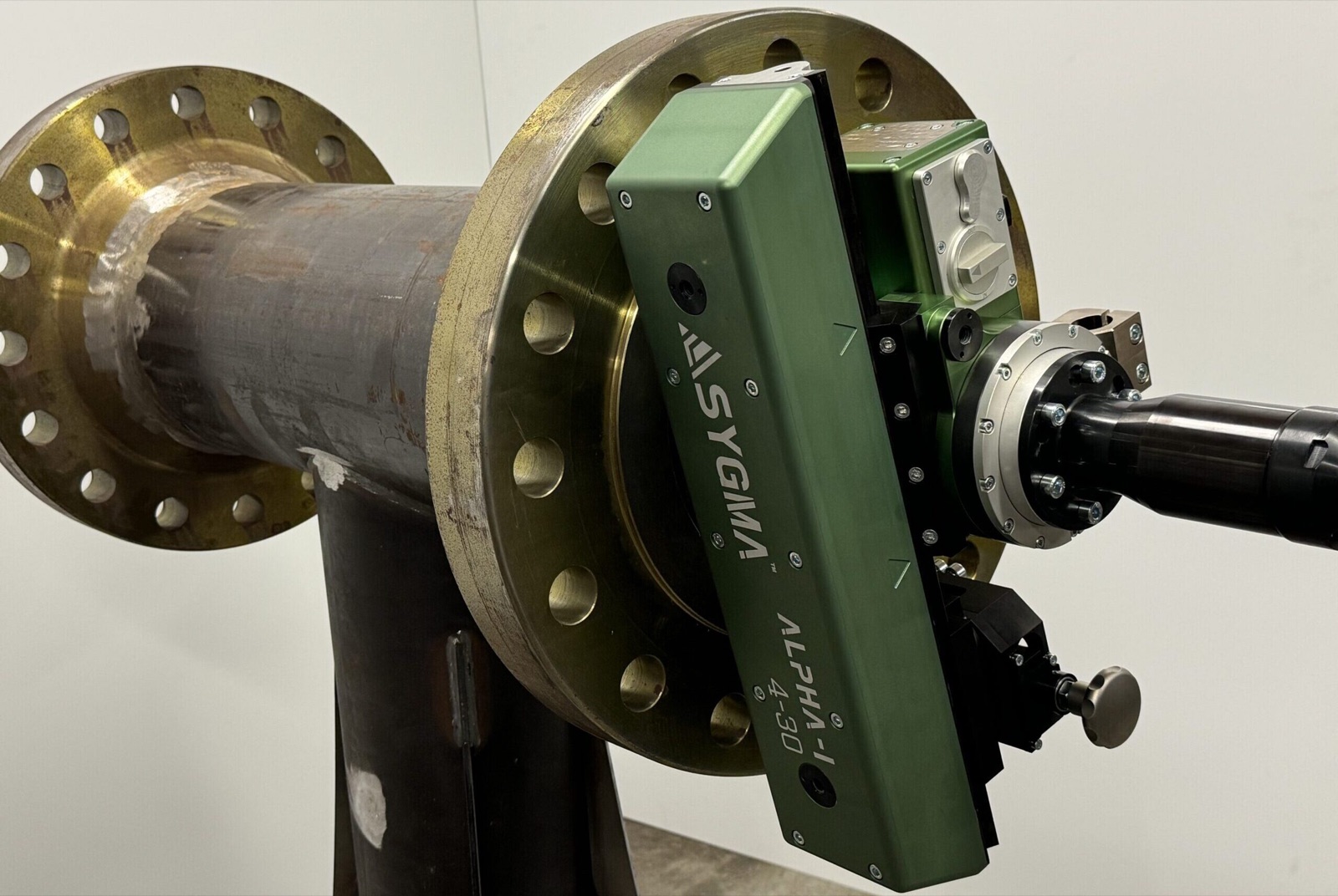

Machining flange faces
Restoring flange gasket faces to flat and the right finish, on site.
RTJ grooves
Machining or repairing ring type joint grooves.
Seal grooves
Making or repairing grooves for O-rings and other seals.
Weld preparation
Preparing pipe and flange ends for welding.
Heat exchangers
Repairing gasket faces of heat exchangers, with the optional back-facing and mounting plate kits.
Orbital milling
With the Legacy milling unit you quickly convert an Alpha-I for orbital milling of large surfaces.
Technical data
-
ColletØ 99.5 – 292 mm (3.92 – 11.5″)Clamping range
-

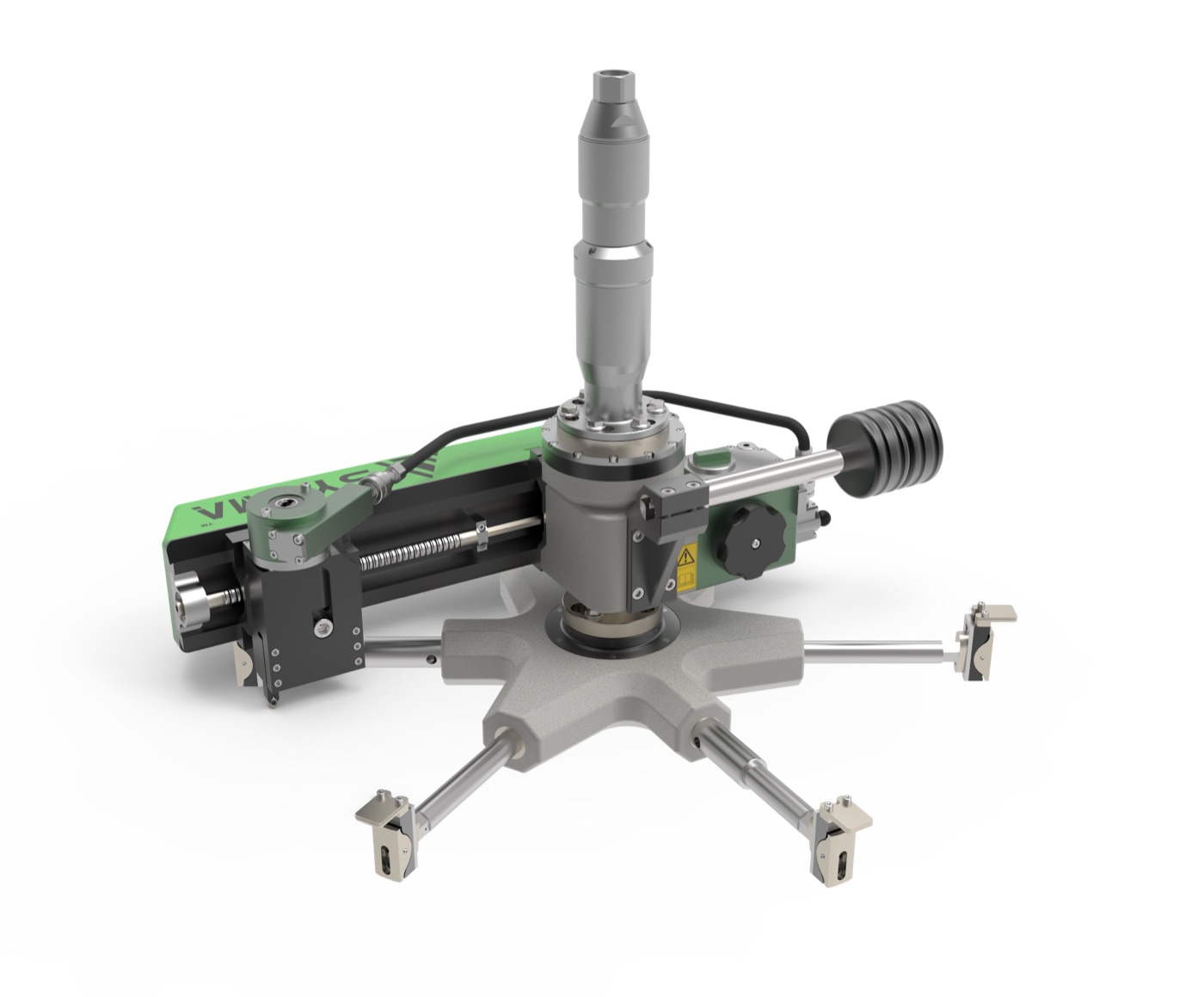

Clamping foot 1Ø 201.5 – 504 mm (7.93 – 19.84″)Clamping range
-
Clamping foot 2Ø 476 – 756 mm (18.74 – 29.76″)Clamping range
-
MinimumØ 100 mm (3.94″)Machining range
-
MaximumØ 780 mm (30.71″)Machining range
-
Case dimensions900 × 800 × 546 mmDimensions and weight
-
Weight of complete case150 kgDimensions and weight
-
Machine weight (without base)38.5 kgDimensions and weight
-
Machine height510 mmDimensions and weight
Accessories
Automatic toolpost
360° rotatable, with built-in end-of-stroke limiter top and bottom.
