TorcUP offset gearbox for plate heat exchangers

Opening and closing plate heat exchangers quickly and evenly, without an impact wrench

Brand

TorcUP
Drive

Pneumatic
Hex

55 – 95 mm
Inserts

36 – 90 mm
For

Raptor 500 – 6000
Available for

Buy

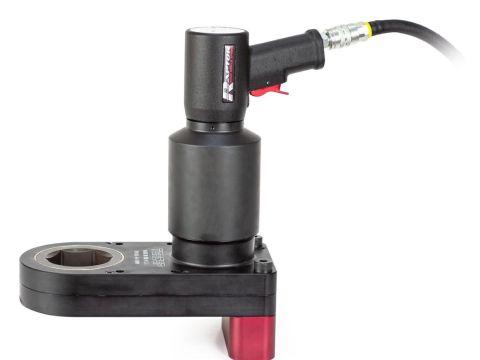

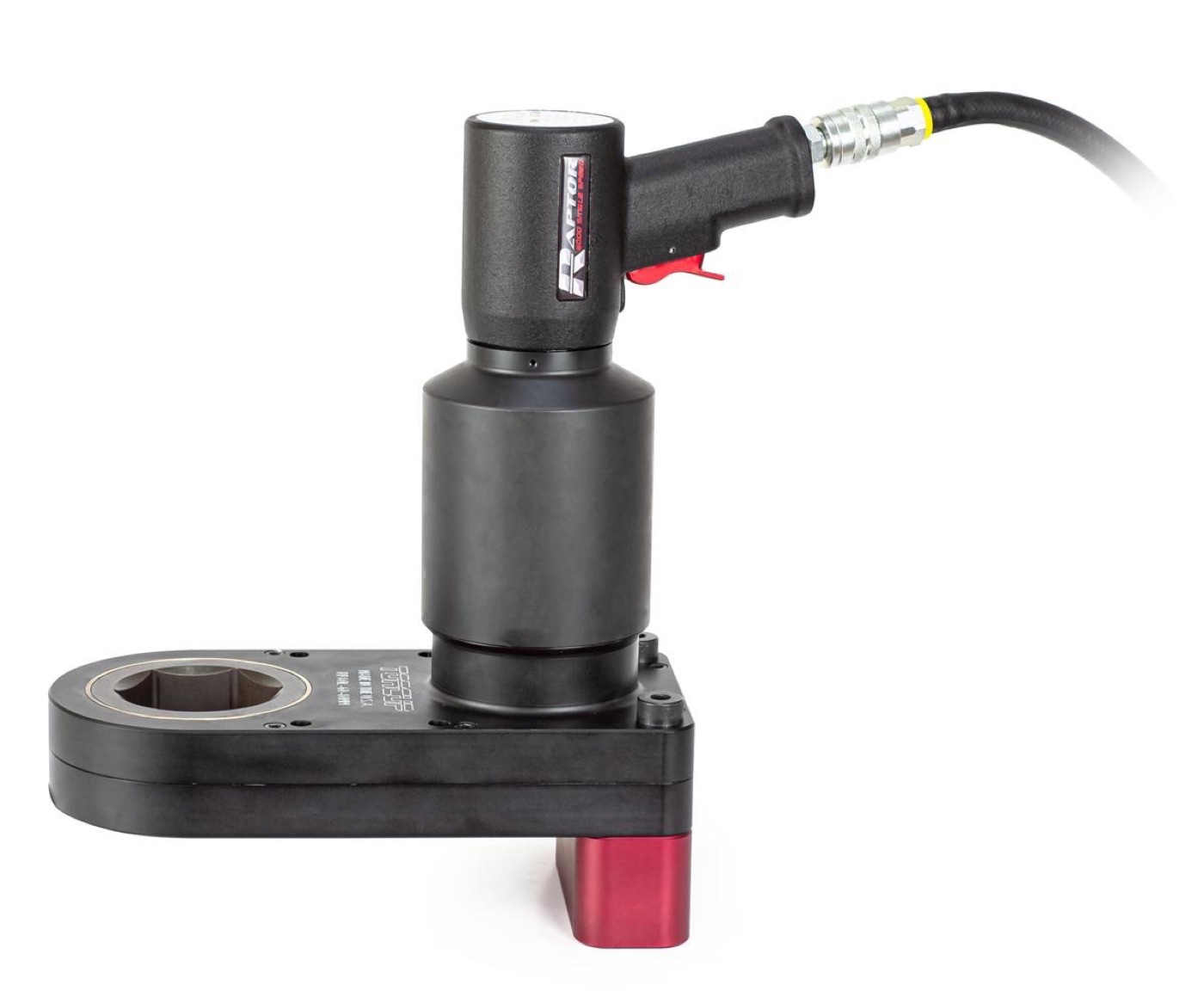

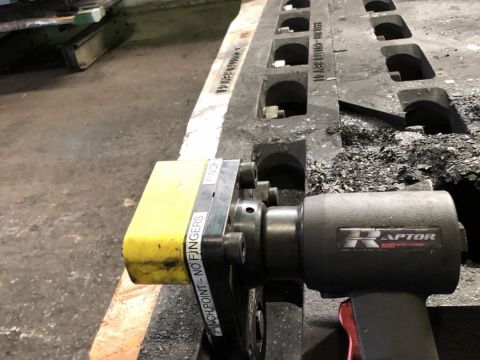

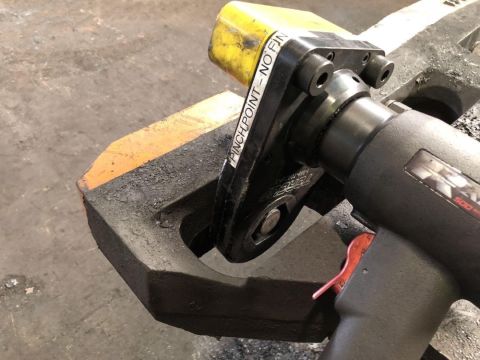

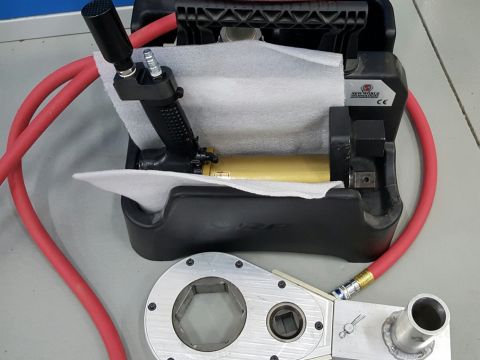

Offset gearbox for plate heat exchangers

With this offset gearbox you open and close plate heat exchangers easily and efficiently. A pneumatic Raptor torque wrench (or an electric wrench) drives the long tie rods continuously via the gearbox, without the hammering of an impact wrench. The gearbox fits hex sizes from 55 to 95 mm (2 3/16 to 3 3/4 inch); with hex inserts you can also use it for smaller nuts.

Versions

For Raptor	Link	Max. hex (inch)	Max. hex (mm)	A (mm)	B (mm)	C (mm)
Raptor 500 / 1000	1	2 3/16"	55	223.2	127.0	31.7
Raptor 500 / 1000	2	3 1/8"	80	298.7	141.2	31.7
Raptor 2000 / 3000	1	2 3/16"	55	223.2	127.0	42.4
Raptor 2000 / 3000	2	3 1/8"	80	298.7	141.2	42.4
Raptor 2000 / 3000	3	3 3/4"	95	329.9	160.3	42.4
Raptor 6000	1	3 3/4"	95	351.0	166.1	52.8

A = overall length, B = height, C = thickness; according to the BRAND TS brochure. Other versions on request.

Not sure which tool best suits your application? Contact us; we will be happy to advise you.

Features

Specially for plate heat exchangers

Fits on the bolt head or the nut, on both sides of the heat exchanger.

Continuous rotation

Turns the long tie rods quickly and evenly, without hammering.

Modular

With wrench inserts; one tool for all bolt sizes.

Rugged design

Reliable and faster than with an impact wrench.

Also custom

Other versions are possible; ask us about the possibilities.

Applications

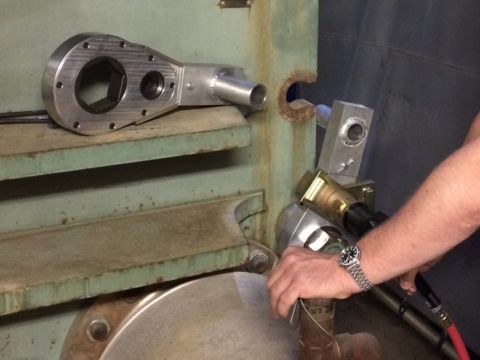

Plate heat exchangers

Opening the plate pack for cleaning or inspection and closing it again to size.

Long tie rods

Wherever many bolts have to be turned over a great length.

Technical data

Hex size

55 – 95 mm (2 3/16 – 3 3/4")

General
Hex inserts

36, 41, 46, 50, 55, 60, 65, 70, 75, 80, 85 en 90 mm

General
Drive

Pneumatic TorcUP Raptor torque wrench (500 to 6000), or electric

General
Reaction

Two ø 19.1 mm holes for reaction pins

General

Accessories

Hex inserts

36 to 90 mm, for smaller nut sizes.

Raptor pneumatic torque wrench

To drive the gearbox.

Documentation

Offset gearbox brochure
