OziShim stainless steel shims

Pre-cut stainless steel shims with squeeze tab, in 6 sizes and thicknesses from 0.05 to 6 mm
  • Brand
    OziShim
  • Sizes
    50 × 50 – 200 × 200 mm (A – F)
  • Thicknesses
    0.05 – 6 mm
  • Material
    stainless steel 304/304L
  • Available for
    Buy, Rent
Request a quote
Renting? View rates
OziShim stainless steel shims

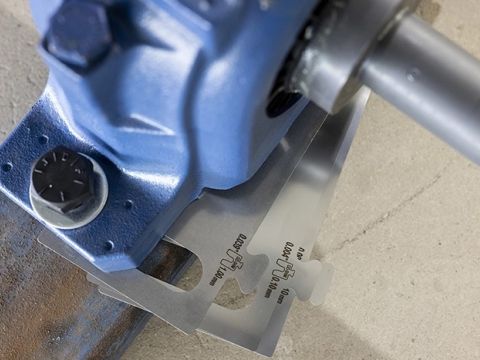

With shims you accurately pack machine feet when aligning shafts and other machine parts. BRAND TS supplies OziShim: pre-cut shims of certified 304/304L stainless steel, chemically etched, with an extra-high slot and a large hollow tab (the 'squeeze tab'). This lets you pull the shim out from under the machine foot easily. There are six sizes, from 50 × 50 to 200 × 200 mm, in thicknesses from 0.05 to 6 mm.

Thicknesses per size

Thickness (mm)Thickness (inch)ABCDFE
0.0500,002✓✓✓✓✓✓
0.0750,003✓✓✓✓––
0.1000,004✓✓✓✓✓✓
0.1250,005✓✓✓✓––
0.2000,008✓✓✓✓✓✓
0.2500,010✓✓✓✓✓✓
0.4000,015✓✓✓✓✓✓
0.5000,020✓✓✓✓✓✓
0.7000,027✓✓✓✓✓✓
1.0000,039✓✓✓✓✓✓
2.0000,079✓✓✓✓✓✓
3.0000,118✓✓✓✓✓✓
4.0000,157✓✓✓✓✓✓
6.0000,236✓✓✓✓✓✓

Part number: Ozi--, for example Ozi-B-25 for a B shim of 0.25 mm.

SKF TMAS too

In addition to OziShim we also supply SKF TMAS shims, types A to E, in 10 thicknesses: 0.05 – 0.10 – 0.20 – 0.25 – 0.40 – 0.50 – 0.70 – 1.00 – 2.00 – 3.00 mm.

Not sure which solution best suits your machine and foundation? Contact us; we will be happy to advise you.

Features

Squeeze tab

Extra-high slot and a large hollow tab: you pull the shim out from under the machine foot effortlessly.

Certified stainless steel

Made of certified 304/304L stainless steel, with accurate thickness tolerances.

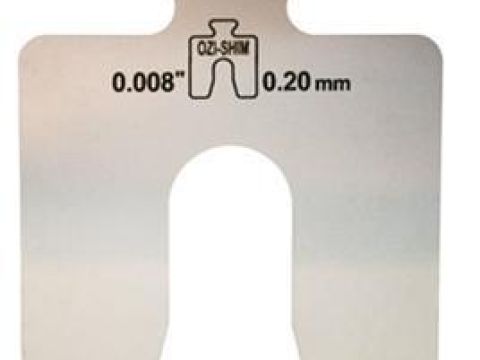

Chemically etched

In metric and inch thicknesses; the size is marked in mm and inches.

Fewer shims needed

Thanks to the many thicknesses you quickly build up the required thickness, with fewer shims.

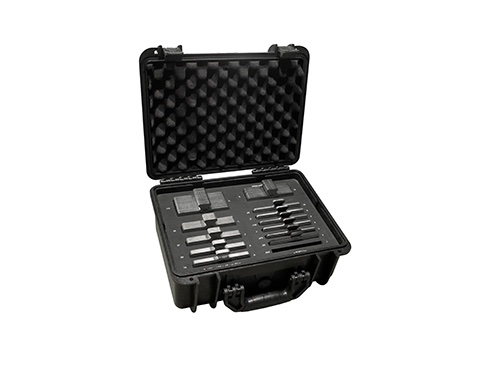

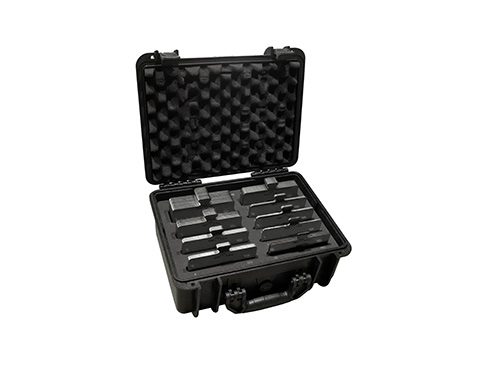

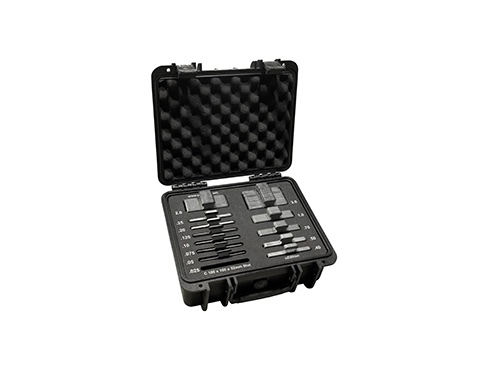

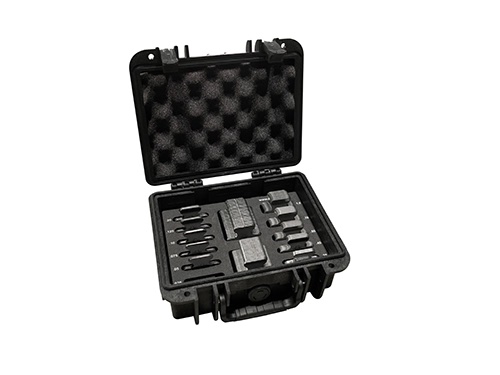

Rugged cases

Cases with 20 or 10 shims per thickness; refill packs with 10 per thickness.

Custom

Need other sizes or another grade? Custom shims are also possible.

Applications

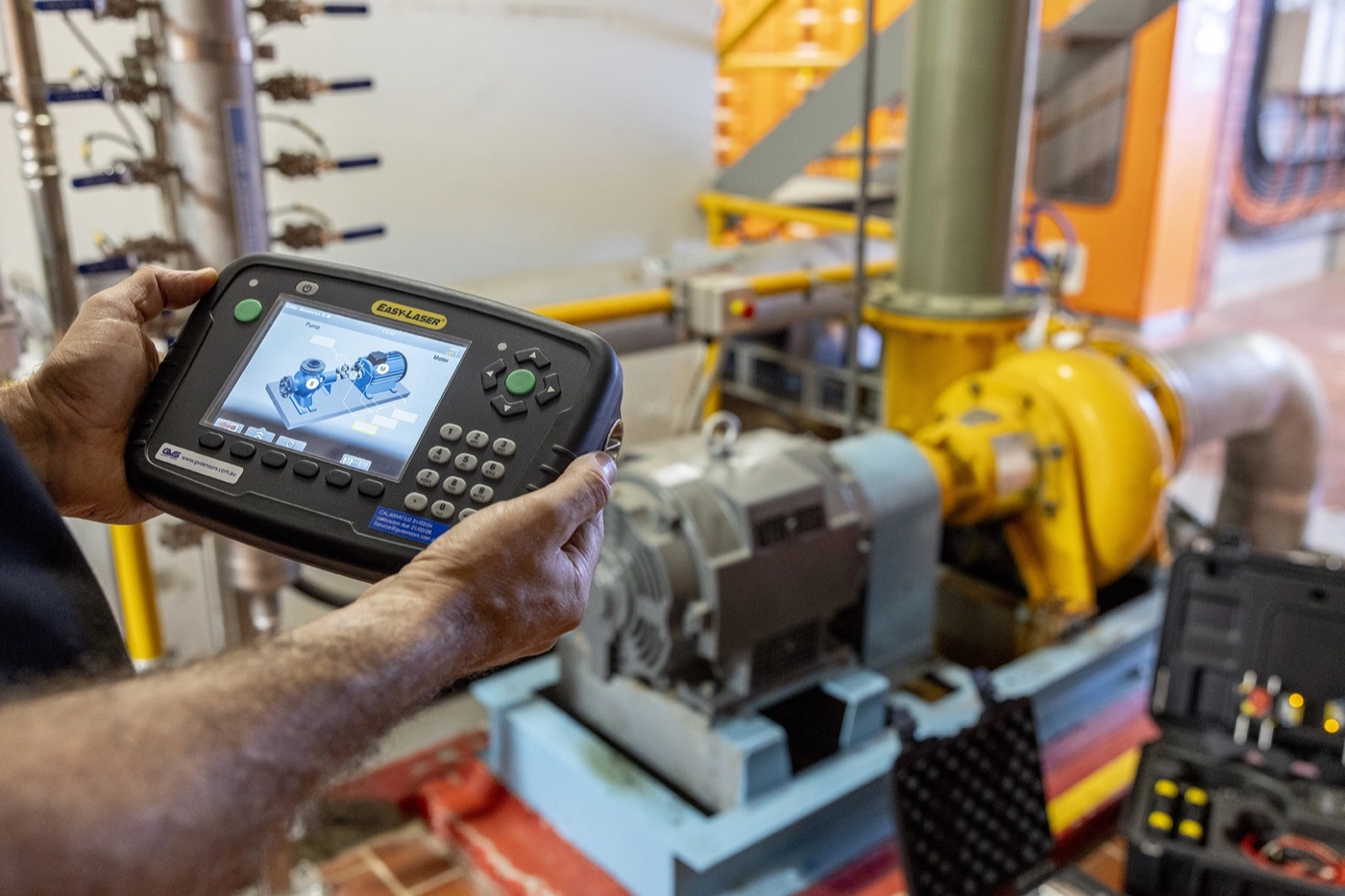

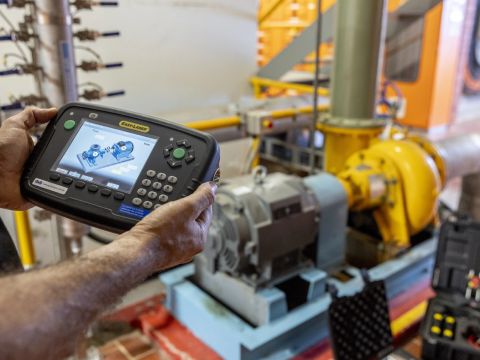

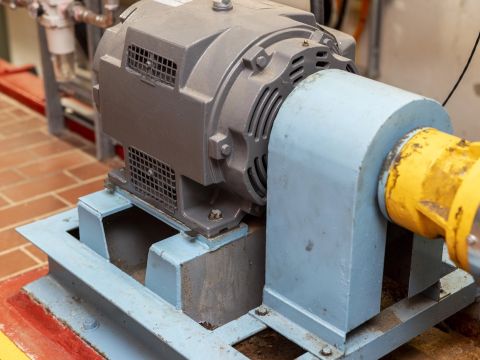

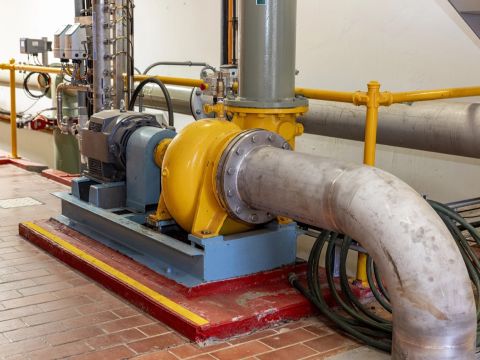

Shaft alignment

Accurately shimming machine feet of pumps, motors and gearboxes.

Drive trains

Good alignment reduces friction, energy consumption, wear, vibration and heat.

All industries

From mining and steel to water treatment and pharmaceuticals.

Variants

A-shim

50 × 50 mm, slot 16 mm

B-shim

75 × 75 mm, slot 22 mm

C-shim

100 × 100 mm, slot 32 mm

D-shim

125 × 125 mm, slot 45 mm

F-shim

150 × 150 mm, slot 55 mm

E-shim

200 × 200 mm, slot 55 mm

Technical data

  • Grade
    Certified stainless steel 304 – 304L
    Material
  • Production
    Chemically etched
    Material
  • A-shim
    50 × 50 mm, slot 16 mm
    Sizes
  • B-shim
    75 × 75 mm, slot 22 mm
    Sizes
  • C-shim
    100 × 100 mm, slot 32 mm
    Sizes
  • D-shim
    125 × 125 mm, slot 45 mm
    Sizes
  • F-shim
    150 × 150 mm, slot 55 mm
    Sizes
  • E-shim
    200 × 200 mm, slot 55 mm
    Sizes
  • A, B, C and D shim
    0.05 – 6.00 mm (14 thicknesses)
    Thicknesses
  • F and E shim
    0.05 – 6.00 mm (12 thicknesses; not in 0.075 and 0.125 mm)
    Thicknesses
  • Cases

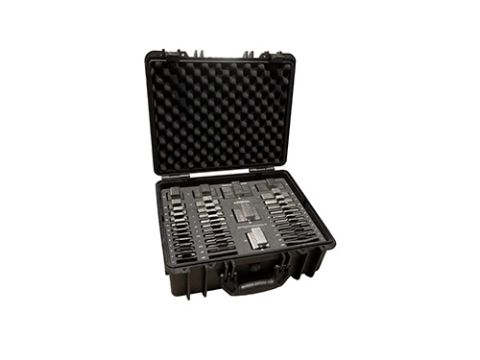

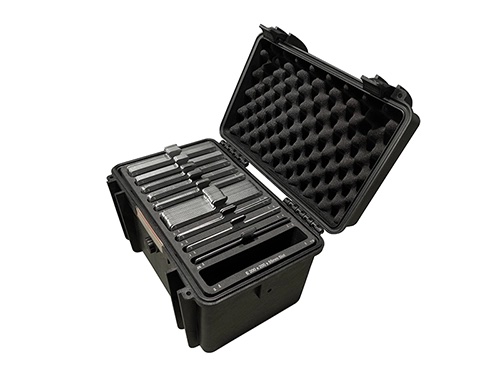

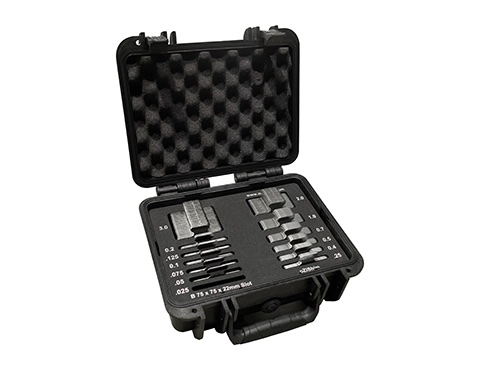

    A, B, C, D, F and E box, A+B combo and A+B+C combo; 20 or 10 shims per thickness
    Packaging
  • Refill
    10 shims per thickness
    Packaging

Accessories

Custom shims

Other dimensions, slots or materials on request.
