Legacy series – portable milling

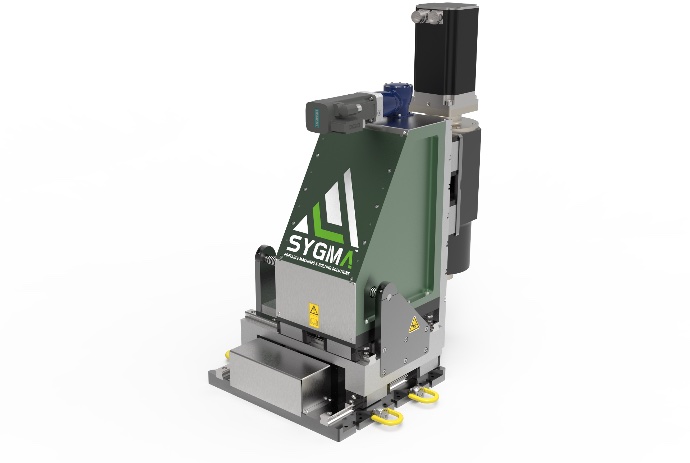

Sygma Legacy EOS CNC milling and drilling machine
CNC-controlled milling, thread milling and drilling on site
-
BrandSygma
-
Spindle motor4.7 kW
-
Tool holderISO 40
-
MachiningMilling and drilling
-
ClampingLinear guide
-
Machining rangeX/Y 110 – 390 mm, Z 300 – 460 mm
-
DriveCNC / servo
-
Machine weight215 – 270 kg
-
Available forBuy

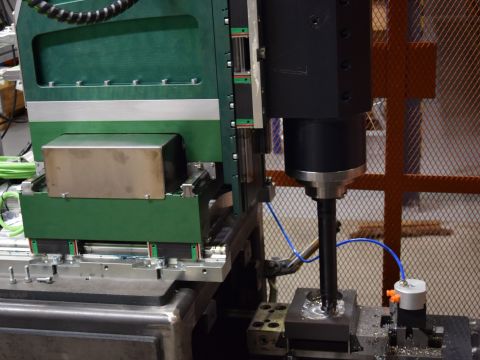

The Sygma™ Legacy EOS (Enhanced Operational System) is made for accurate, rugged and reliable milling, thread milling and drilling. With servo motors, a touchscreen control panel and user-friendly programming software you work quickly and repeatably. The EOS comes in three versions: EOS 100, EOS 200 and EOS 300.
The versions
| EOS 100 | EOS 200 | EOS 300 | |
|---|---|---|---|
| X stroke | 110 mm | 222 mm | 390 mm |
| Y stroke | 110 mm | 222 mm | 390 mm |
| Z stroke | 300 mm | 460 mm | 460 mm |
| Control box | yes | yes | yes |
| Weight (ready for use) | 215 kg | 270 kg | 270 kg |
| Spindle motor power | 4.7 kW | 4.7 kW | 4.7 kW |
| Tool holder | ISO 40 | ISO 40 | ISO 40 |
| Milling motor | servo | servo | servo |
All Legacy machines are modular: you configure the machine for the job, and easily expand later. Would you like to know which version suits your application? Contact us.
Features
Control panel in heavy-duty case
With touchscreen, well protected on the work site.
User-friendly programming software
Easy programming of operations.
Adjustable end of stroke
Set the stroke for safe and repeatable work.
Milling motor speed control
For the optimum speed per operation.
Emergency stop
Fitted as standard.
Accurate and repeatable
Precision guides and ball screws for exact movements.
Adaptable to your application
Doesn't the standard configuration suit your job? Sygma supplies options and custom solutions; we are happy to think along.
Applications
Repairing damaged threads
Re-milling threads, internal and external.
Drilling and making threaded holes
Accurate in depth and diameter, and repeatable.
Studs
Studs of rotating equipment and reactor studs.
Reactors, heat exchangers, pump casings and turbines
Making and repairing threaded holes.
Slots, pockets and keyways
Milling slots, pockets and keyways.
Index drilling and orbital boring
Multiple operations with one set-up.
Technical data
-
Spindle motor power4.7 kWConstruction
-
Tool holderISO 40Construction
-
Milling motorServoConstruction
-
ControlControl box with touchscreen in heavy-duty caseConstruction
-
PropertiesLess vibration; heavy-duty; quick tool change; accurate tool repositioningSygma spindle
