Belt alignment tool TKBA 31

Belt alignment with green laser, two transmitters and extensive accessories
  • Brand
    SKF
  • Laser
    Green
  • Mounting
    Magnetic on the side
  • Angular accuracy
    0.02° (at 2 m)
  • Offset accuracy
    0.5 mm
  • Suitable for
    V-belts, Timing belts, Multi-rib belts, Chain drives
  • Battery life
    6 hours
  • IP rating
    IP 40
  • Available for
    Buy
Request a quote
Belt alignment tool TKBA 31

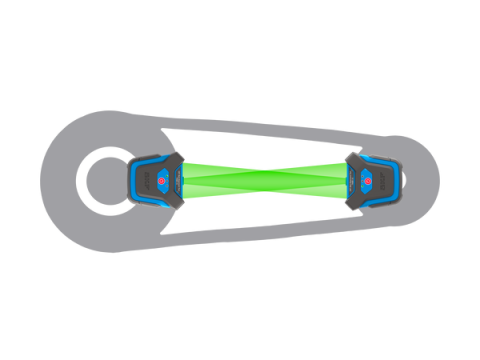

The alignment tool has two components: a laser unit and a receiver. Each part is quick and easy to attach – using a powerful magnet – to the inner or outer face of a pulley or sprocket. The tool can be used on most machines with V-belts, flat belts and ribbed belts, as well as those with sprockets. It uses a green laser diode and can be used over long distances, even outdoors in sunny conditions. The tool is supplied in a case with extra items such as belt tension checkers and additional targets to support professional alignment.

  • Quick, easy attachment – using powerful magnets
  • Two laser receivers
  • Three targets - for simple alignment tasks
  • Belt tension checkers - to help achieve the correct belt tension and prevent wear of belt and pulley
  • Groove gauges – help detect early pulley wear
  • Simultaneous adjustment of tension and alignment
  • Suitable for most machines using V-belts, flat belts, ribbed belts and sprockets
  • Uses a green laser beam that is clearly visible in daylight and can be used over long distances

Technical data

  • Recommended applications
    Most machines using V-belts, flat belts, ribbed belts and most other belts
    Sprockets
  • Mounting
    Magnetic, side-mounted
  • Laser type
    Visible green line laser
  • Laser wavelength
    520 nm
  • Laser power, max
    1 mW
  • Laser line length (at 2 m)
    2.4 m
  • Angular measuring accuracy (at 2 m)
    0.02 °
  • Offset measuring accuracy
    0.5 mm
  • Transmitter weight
    0.25 kg
  • Target type
    Second transmitter or set of 3 passive targets
  • Target weight
    0.25 kg
  • Housing material
    PC/ABS blend, overmoulded with TPU rubber
  • Colour
    Blue
    Dark grey
  • Battery
    3x AAA (alkaline (incl.) or rechargeable)
  • Battery life
    6 h
  • Protection rating (IP)
    IP 40
  • Operating temperature range
    0 – 40 °C
  • Recommended storage temperature
    -20 – 60 °C
  • Relative humidity
    10 to 90%, non-condensing
  • Contents
    2x TKBA 31 transmitter
    3x passive target
    6x AAA battery
    1x pulley groove gauge
    3x belt tension checkers
    1x printed instructions for use
    1x carrying case (size B)
  • Net weight
    1.79 kg
