Seiffert RollCheck MINI laser roll alignment tool (SX-4150)
Compact laser system for aligning small rolls parallel, up to 1.2 m apart
-
BrandSeiffert
-
ModelSX-4150
-
LaserRed
-
Max. distance between rolls1.2 m
-
Roll diameter25 – 101 mm
-
Accuracy< 0.09 mm/m (0.001″ per ft)
-
Power supplyRechargeable lithium-ion battery
-
Complete weight2.4 kg
-
Available forBuy, Rent

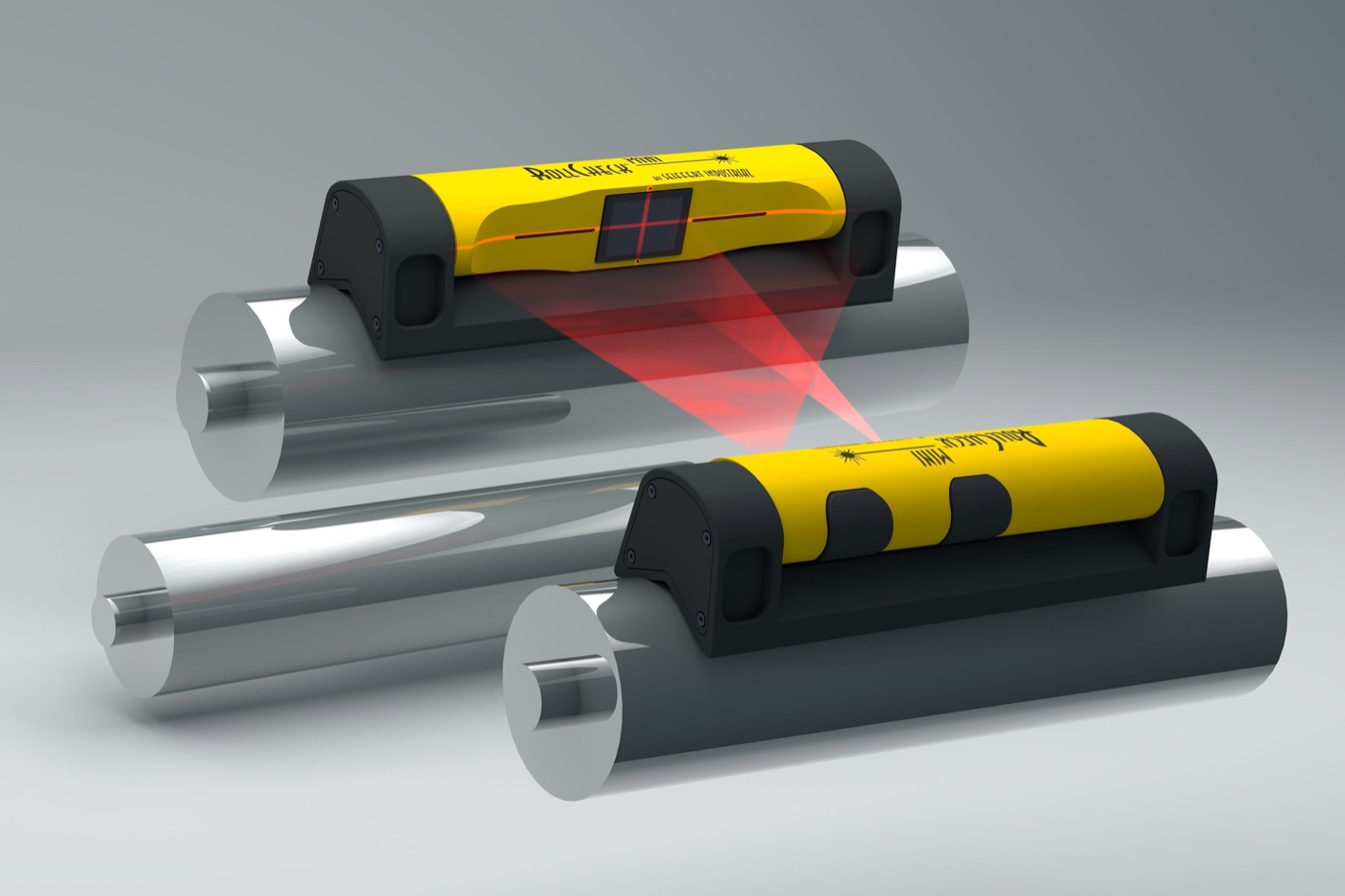

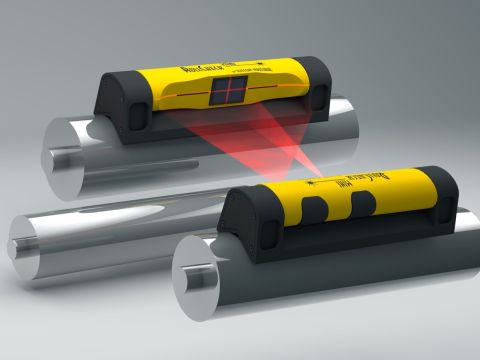

The Seiffert RollCheck® MINI is a light, compact and rugged laser system for aligning rolls in small machines parallel. You attach the transmitter and reflector with the supplied straps to rolls up to 101 mm in diameter. The transmitter projects two red laser lines onto the reflector, which reflects them back: this shows you immediately whether the rolls are parallel. One person aligns in a few minutes, without training.
We supply and rent out the RollCheck, and provide training with it. Prefer to have it measured? Our measurement service also aligns your rolls and rollers on site.
Features
Patented reflected laser beam
The transmitter projects laser lines onto the reflector, which reflects them back to the transmitter. This shows you immediately whether the rolls are parallel.
Two angles at once
You see the vertical angle (pitch) and the horizontal angle (parallelism) at the same time, and adjust the roll directly.
One person, no training
One person aligns in a few minutes, without training.
Compact
Also fits in tight spaces; everything comes in a rugged case.
Crowned rolls too
Also suitable for measuring and aligning crowned rolls.
Less downtime and scrap
No more time-consuming trial and adjustment; this prevents rejects and lost production.
Applications

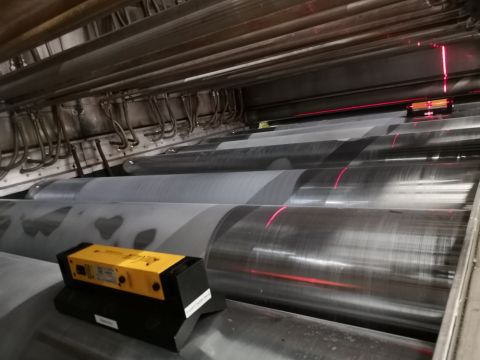

Paper and board
Aligning rolls and rollers of paper machines parallel.
Printing
Checking and aligning rolls in printing presses.
Film, plastics and textiles
Rolls in production lines for film, plastics and textiles.
Metal and food
Also in the metal and food industries.
Replacing rolls
After a roll change, the new roll is quickly parallel again.
Technical data
-
Max. distance between rolls1,200 mm (4 ft)Measurement
-
Roll diameter25 – 101 mm (1 – 4″)Measurement
-
Accuracy< 0.09 mm/m (0.001″ per ft)Measurement
-
Type2 red laser lines (635 nm), fan angle 45°Laser
-
Power< 1 mW, class 2Laser
-
Line width0.43 mm at 1.2 mLaser
-
CalibrationIn the factory; check annuallyLaser
-

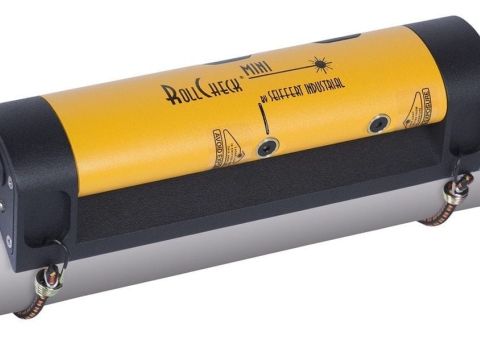

TransmitterSX-4150TConstruction
-

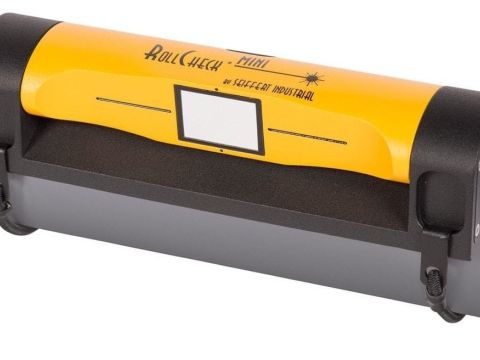

ReflectorSX-4150R, 25 × 36 mm; 216 × 62 × 50 mm; 0.70 kgConstruction
-
ProtectionWater resistant, dustproof and shock resistantConstruction
-
Mounting2 elastic straps of 254 mm, for diameters up to 101 mmConstruction
-
Case432 × 305 × 105 mm, 1.0 kgConstruction
-
Complete weight2.4 kgConstruction
-
Supplied as standardLaser transmitter
Reflector
Mounting straps
Case with foam insertScope of delivery
