Shaft alignment tools

Shaft alignment tool TKSA 71

High-end shaft alignment tool
  • Brand
    SKF
  • Operation
    App on smartphone/tablet
  • Measuring method
    Free measurement
  • Min. shaft rotation
    40°
  • Measuring distance
    0.07 – 10 m
  • Sensor
    20 mm PSD, inclinometer ±0.1°, red line
  • Wireless measuring units
    Yes
  • Alignment applications
    Horizontal shafts, Vertical shafts, Soft foot, Spacer shaft, Machine train, Dial gauge mode
  • IP rating
    IP 67 for measuring units and carrying case
  • Available for
    Buy, Rent
Request a quote
Renting? View rates
Shaft alignment tool TKSA 71

The TKSA 71 is designed for alignment work in harsh industrial environments and offers a range of functions for alignment specialists. It is very versatile, with ultra-compact measuring units for use in extremely tight spaces. Dedicated software applications make it easy to align different types of applications, including horizontal and vertical shafts, spacer shafts and machine trains.

  • Intuitive software applications
  • Guided alignment processes and explanatory videos
  • Extensive accessories and dedicated software applications
  • Measuring distance up to 10 m, disturbance compensation and full measuring flexibility
  • Only 40° of shaft rotation required, automatic measuring mode and custom alignment with target values
  • Protection against harsh environments (IP 67)
  • Ultra-compact measuring units allow alignment in very tight spaces
  • Free apps, demo mode and instruction videos for carrying out alignments
  • Rugged trolley case with wireless charging

Features

Easy to use

Intuitive apps, a guided alignment process and explanatory videos.

Wide range of applications

Extensive accessories and dedicated software applications.

Best-in-class alignment performance

Measuring distance up to 10 metres, a filter for vibrations or other external influences, measuring flexibility, only 40 degrees (2 x 20°) of rotation required, automatic measurement and alignment/measurement to target values.

Optimum protection in industrial environments

Fully sealed measuring unit housings, IP67 dust and water protection.

Ultra-compact measuring units

For use in very confined spaces.

Rugged carrying case

Full protection, easy transport and wireless charging in the case.

Applications

Horizontal shaft alignment

Easy, intuitive alignment of horizontal shafts, with automatic measurement, a minimum total rotation of 40°, 9-12-3 guidance and alignment to target values.

Vertical shaft alignment

Easy, intuitive alignment of machines with vertical shafts, with shimming guidance for different bolt configurations.

Machine train alignment

Align three coupled machines with a complete overview of the alignment of the whole train; the operator chooses which feet are fixed.

Spacer shaft alignment

Takes the specific requirements of spacer shafts into account and simplifies the alignment process.

Soft foot

Checking and correcting a loose or springy foot (soft foot) before alignment, so the machine sits stably on its foundation.

Dial indicator mode (values)

Use the system as a digital dial indicator: record absolute, zeroed and halved values for custom alignments with your own calculations.

Variants

TKSA 71

Measuring units with wireless charging stations, a case that meets the hand luggage requirements of most airlines, and standard accessories.

TKSA 71D

TKSA 71 plus a protected display for industrial use (TKSA DISPLAY).

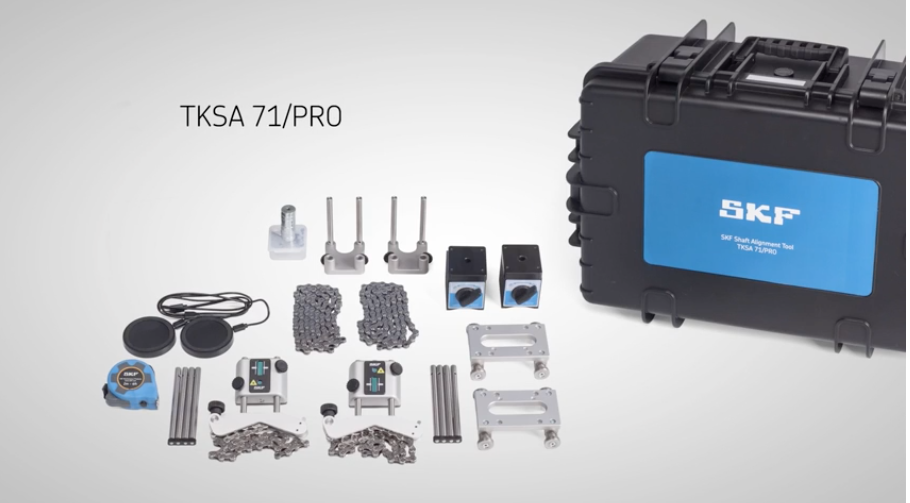

TKSA 71/PRO

Measuring units with wireless charging stations, a trolley case with extra storage space, and standard and advanced accessories.

TKSA 71D/PRO

TKSA 71/PRO plus a protected display for industrial use (TKSA DISPLAY).

Upgrade kit TKSA 71/ACCESS

Upgrade from TKSA 71 to 71/PRO, to be ordered separately: advanced accessories and the large trolley case.

TKSA DISPLAY

Android tablet (at least 7 inch) with a protective cover for industrial environments and pre-installed apps; also available separately.

Technical data

  • Alignment methods
    3-position measurement 9-12-3
    Automatic measurement
    Free measurement (only 40° shaft rotation required)
  • Recommended applications
    Horizontal shafts
    Vertical shafts
    Machine trains
    Spacer shafts
    Soft foot
    Values
  • Live correction values
    Vertical and horizontal
  • Special features
    Machine library
    Images in reports
    QR code reading
    Target values
    Disturbance compensation
    Free 3D machine view
    Screen rotation on tablets
    Automatic .pdf report
  • Sensors
    20 mm PSD
    Inclinometer ±0.1°
  • Communication
    Bluetooth 4,0 LE
  • Measuring distance
    0.07 – 10 m
  • Measurement error (percentage)
    1 %
  • Material
    Measuring units: front of anodised aluminium and back of PC/ABS plastic
  • Battery
    Measuring units: rechargeable 1,000 mAh Li-ion battery
  • Operating temperature range
    0 – 45 °C
  • Battery life
    8 h
  • Display
    None, smartphone or tablet required
  • Operating system
    Android 9 or later
    min. Apple iOS 9
  • Software update
    Via the Apple App Store and Google Play Store
  • Suitable display device
    Android tablet or smartphone with Android 9 or later
    Apple iPad, iPhone with min. iOS 9
  • Laser type
    Red line
  • Mounting
    2x V-brackets (width 15 mm) with chains and magnets
  • Shaft diameter
    20 – 150 mm
  • Shaft diameter (with extension chains)
    Up to 450 mm with extension chains (included)
  • Maximum coupling height
    45 mm
  • Maximum coupling height with extension
    165 mm
  • Power adapter
    Wireless charging via the supplied charging pods
    Including micro-USB to USB split charging cable
    Compatible with standard 5 V USB chargers (not included)
  • Protection rating (IP)
    IP 67 for measuring units and carrying case
  • Certifications
    Calibration certificate (valid for 2 years)
  • Part of a kit
    No, but also available as TKSA 71/KIT380 or TKSA 71/KIT720
  • Case dimensions (l x h x w)
    365 x 170 x 295 mm
  • Contents
    Set of 2 measuring units (M and S)
    Set of 2 shaft brackets with 480 mm (18.9 in) chains, 80 mm (3.2 in) threaded rods and magnets
    Set of 4 threaded extension rods of 120 mm (4.7 in)
    Set of 2 extension chains of 1 m (3.3 ft)
    Micro-USB to USB split charging cable
    Set of 2 wireless charging pads
    Measuring tape
    Certificate of calibration and conformity
    Quick start guide
    Carrying case
  • Net weight
    4.33 kg

Accessories

TKSA 41-QR

Spare set of five sheets of stickers with 6 QR codes per sheet (30 unique stickers in total)

TKSA 51-EXT50

Accessory offset bracket 50 mm with two threaded rods for shaft alignment tool

TKSA 51-ROD120

Accessory set of four threaded extension rods for shaft alignment tool

TKSA 51-ROD80

Accessory set of four threaded extension rods for shaft alignment tool

TKSA 51-SLDBK

Sliding mounting bracket for shaft alignment tool

TKSA 51-SPDBK

Accessory spindle bracket with two rods for shaft alignment tools

TKSA MAGBASE

Accessory set of 2 magnetic bases for use with offset brackets only, for shaft alignment tool

Software & apps

SKF TKSA 71 apps

iOS and Android
Alignment apps for iOS and Android (smartphone, tablet or TKSA DISPLAY); scan the QR code for the apps.
