Shims and chocks

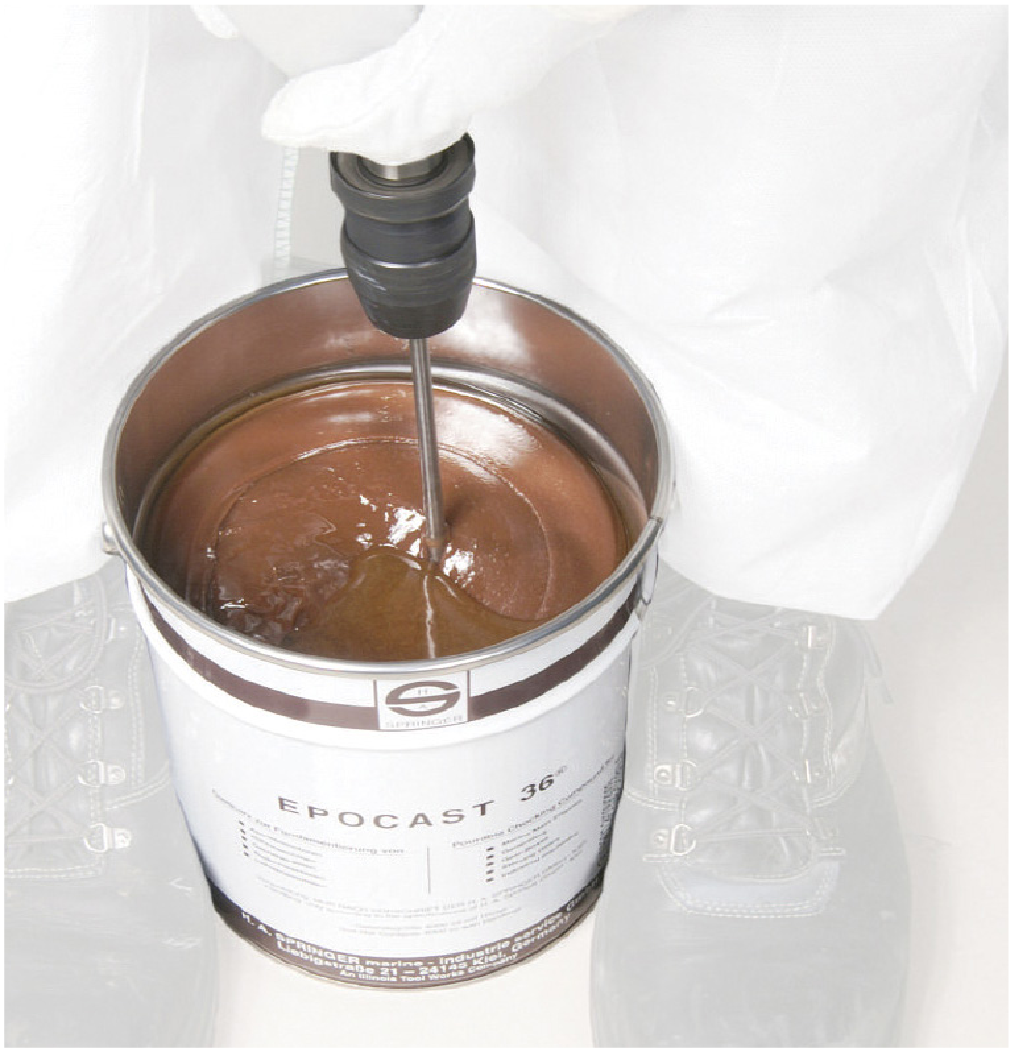

EPOCAST 36 pourable chocking compound

Two-component epoxy compound that replaces steel chocks under engines and gearboxes
  • Brand
    ITW Performance Polymers
  • Compressive strength
    164 N/mm²
  • Chock thickness
    up to 100 mm in one pour
  • Packaging
    2.0 and 4.0 litres (resin + hardener)
  • Available for
    Buy
Request a quote
EPOCAST 36 pourable chocking compound

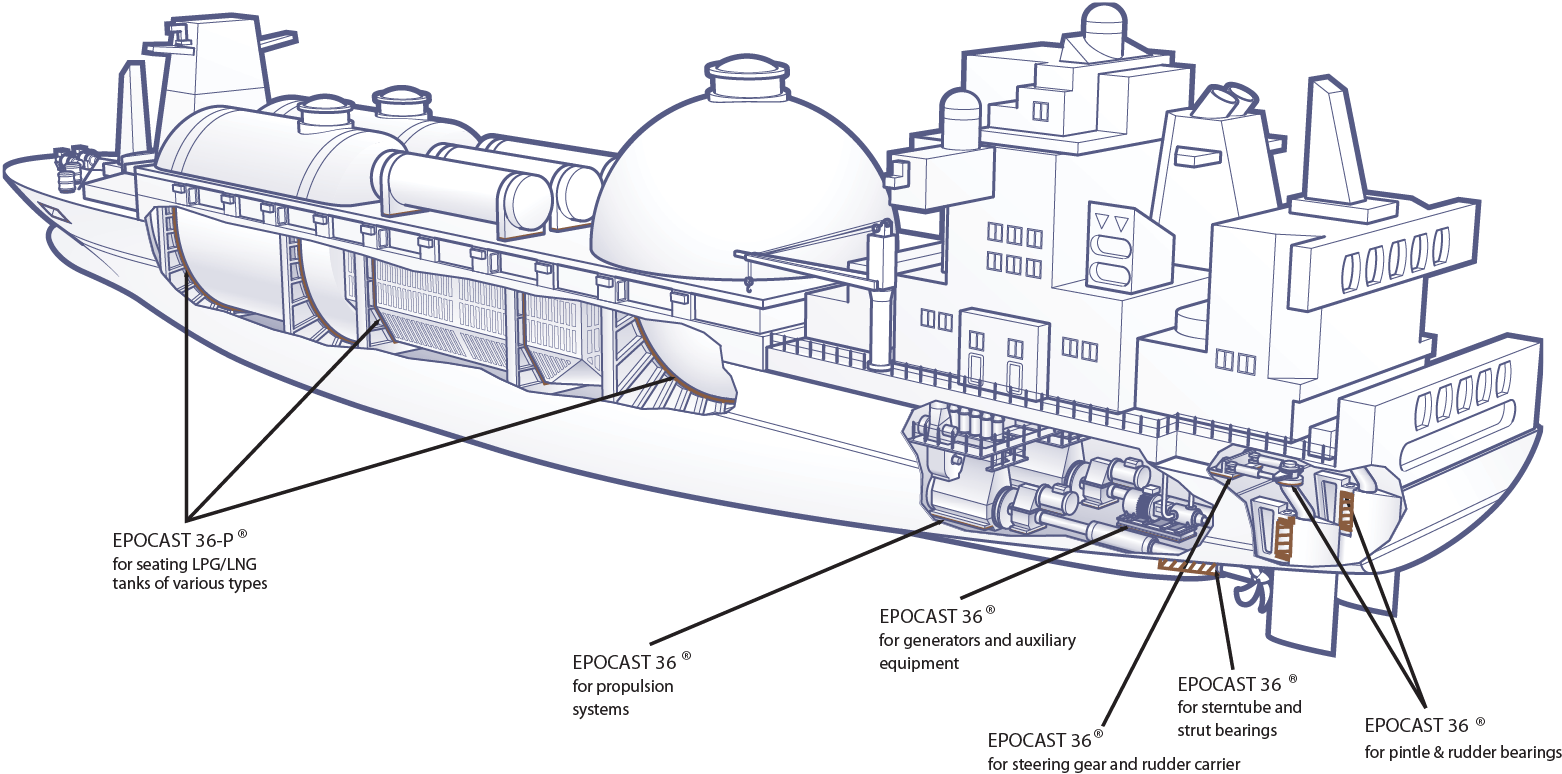

EPOCAST 36® is a two-component, pourable chocking compound with excellent physical properties. It replaces traditional steel chocks when mounting main and auxiliary engines, gearboxes, steering gear, thrust bearings, stern tubes and rudder trunks. The poured chocks fill any reasonable unevenness between machine and foundation, and dampen noise and vibration. EPOCAST has been used for more than 40 years, on cruise ships, bulk carriers, LPG and LNG tankers and naval vessels, among others.

Not sure which solution best suits your machine and foundation? Contact us; we will be happy to advise you.

Features

Simple and cost-effective

Easy to apply, and a cost-effective alternative to steel chocks.

No machining of the foundation

Compensates for unevenness and distortion of the foundation.

Thick chocks

Up to 100 mm in one homogeneous pour, depending on environment and temperature.

Strong

High compressive and impact strength; virtually all lines of force go to the foundation.

Resistant to seawater and chemicals

And prevents crevice corrosion.

Less noise and vibration

Noise reduction of 5 – 7 dB, depending on the installation.

Weight saving

Lighter than steel chocks.

Adjustable viscosity

By pre-heating the resin, to suit the ambient temperature.

Applications

Main and auxiliary engines

Gearboxes

Steering gear and thrust bearings

Stern tubes and rudder trunks

Newbuild and retrofit

Shorter and simpler installations than with traditional metal chocks.

Technical data

  • Compressive strength (ASTM D 695)
    164 N/mm² (−50 °C: 196; +80 °C: 123)
    Mechanical
  • Compressive yield strength
    131 N/mm²
    Mechanical
  • Modulus of elasticity (compression)
    5,610 N/mm²
    Mechanical
  • Tensile strength
    49.4 N/mm²
    Mechanical
  • Barcol hardness
    55
    Mechanical
  • Coefficient of friction
    0.57
    Mechanical
  • Application temperature
    13 – 50 °C
    Application
  • Pot life
    30 min at 25 °C; 10 min at 50 °C
    Application
  • Curing time
    28 hours at 21 °C; longer at lower temperatures
    Application
  • Linear shrinkage
    0.0015 cm/cm
    Application
  • Temperature resistance
    −100 to +80 °C (constant load)
    Use
  • Noise reduction
    5 – 7 dB (depending on the installation)
    Use
  • Packaging
    Units of 2.0 and 4.0 litres (resin + hardener)
    Supply
  • Shelf life
    18 months
    Supply
