Bearing heaters

SKF TWIM 15 portable induction heater

Portable induction heater without yokes, for bearings up to 20 kg
  • Brand
    SKF
  • Heater type
    Portable
  • Max. bearing weight
    up to 20 kg
  • Bore diameter
    30 – 250 mm
  • Power
    2,300 W
  • Power supply
    230 V
  • Heater weight
    6.64 kg
  • Available for
    Buy, Rent
Request a quote
Renting? View rates
SKF TWIM 15 portable induction heater

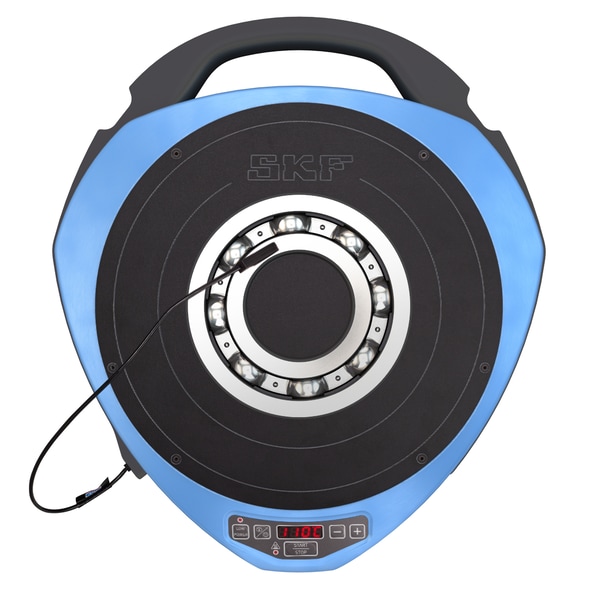

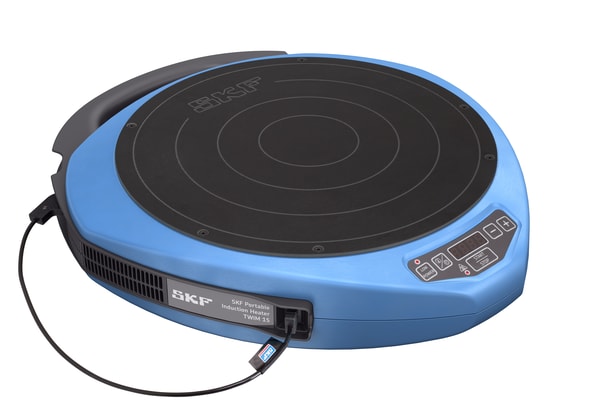

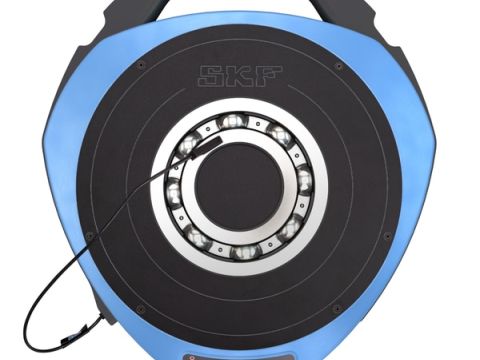

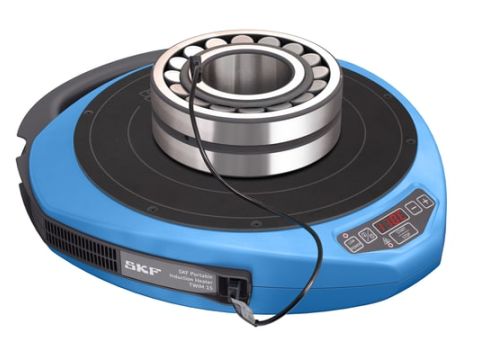

The SKF TWIM 15 is a portable, rugged induction heater for safely heating bearings for hot mounting. It is designed primarily for use in the field, but is just as suitable for the workbench. You lay the bearing flat on the heating plate: no yokes are needed. The TWIM 15 recognises the bearing size and adapts the heating accordingly.

  • Portable, light, compact and rugged
  • No support yokes needed
  • Recognises the bearing size and adapts the heating accordingly
  • Automatic temperature control
  • Four power settings
  • Quiet operation

Features

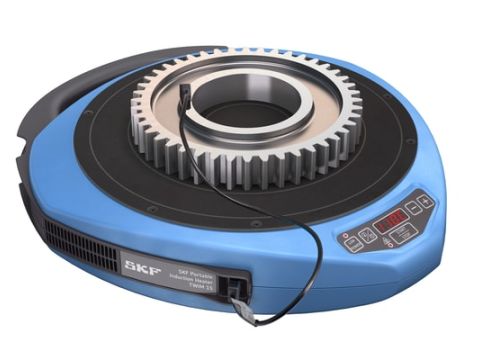

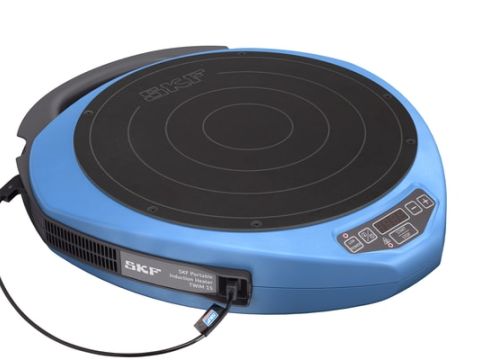

No yokes needed

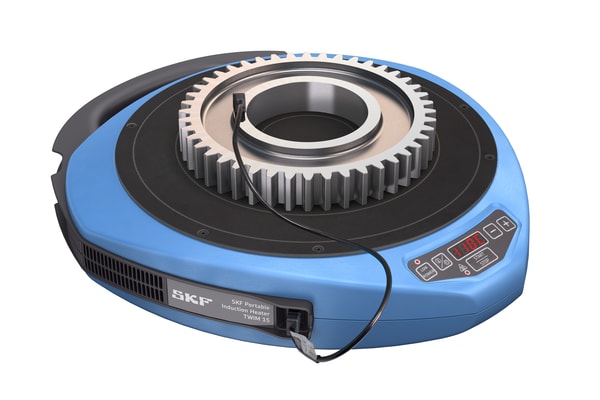

Thanks to the flat heating plate, a support yoke is not needed. This lets you heat more types of components with fewer accessories.

Innovative bearing heating

Smart design and control software keep the temperature difference between inner and outer ring small. This limits the stress in the bearing.

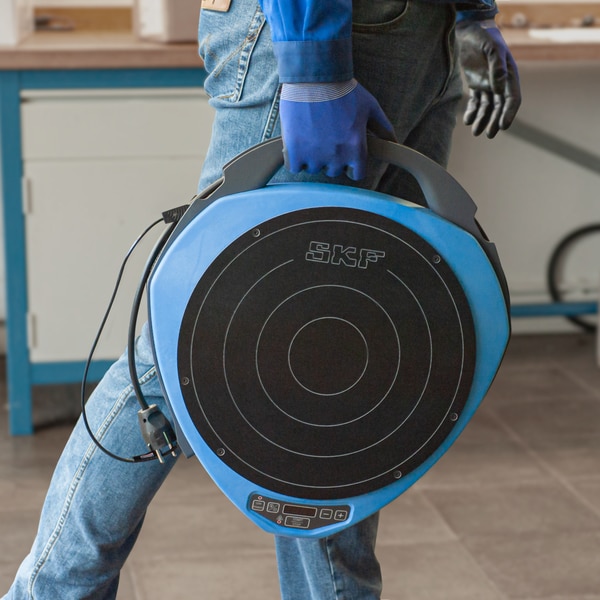

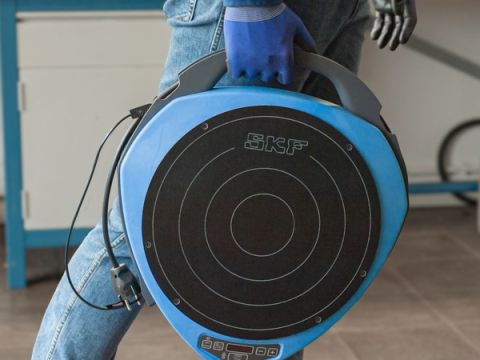

Portable

Light and compact, with built-in handle: just as easy to use in the field as on the workbench.

Four power settings

From 10 to 100%: you heat sensitive components, such as bearings with seals or shields, gently.

Quiet operation

The medium-frequency technology makes virtually no noise; an LED shows that the heater is working.

Technical data

  • Type
    Portable
    Application
  • Heating method
    Induction, medium frequency
    Application
  • Max. bearing weight
    20 kg
    Application
  • Max. weight of solid workpiece
    10 kg
    Application
  • Workpiece bore diameter
    30 – 250 mm
    Application
  • Workpiece outside diameter
    42 – 320 mm
    Application
  • Max. workpiece width
    85 mm
    Application
  • Voltage
    200–240 V
    Electrical
  • Max. current
    10 A
    Electrical
  • Frequency
    50/60 Hz
    Electrical
  • Max. power
    2,300 W
    Electrical
  • Temperature range
    40 – 200 °C
    Operation
  • Time control
    5 – 1,800 s
    Operation
  • Power settings
    10%, 25%, 50%, 100 %
    Operation
  • Temperature measurement
    Magnetic probe type K
    Operation
  • Remote control (wired)
    No
    Operation
  • Display
    LED display (7 segments)
    Operation
  • Automatic demagnetisation
    Yes
    Operation
  • Forced air cooling
    Yes
    Construction
  • Heater weight
    6.64 kg
    Construction
  • Supplied as standard
    Heater
    Temperature probe (TWIM 15-3)
    1 pair of heat-resistant gloves (TMBA G11)
    1 Schuko mains plug for mains power
    Scope of delivery

Accessories

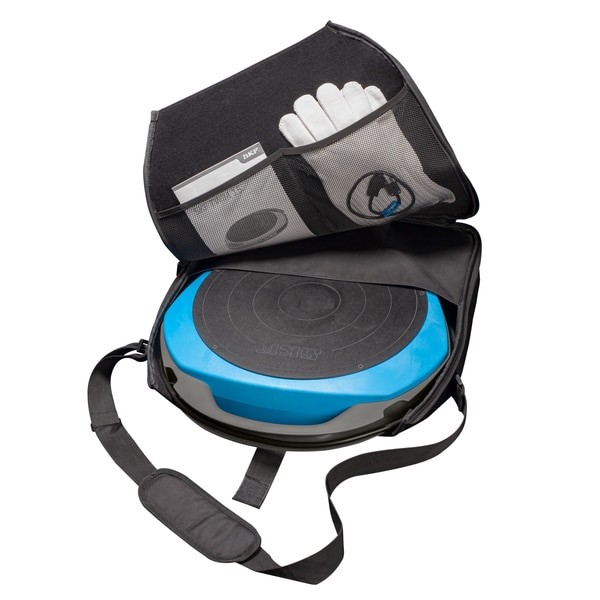

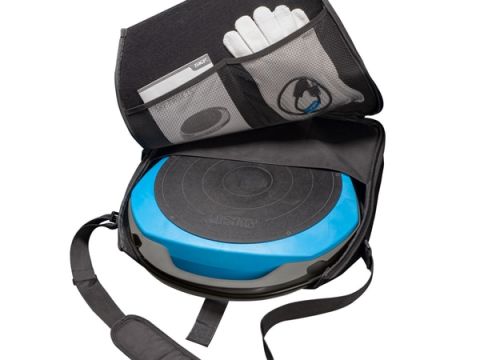

TWIM 15-BAG

Carrying bag
