Alpha series – flange machining
Sygma Alpha-I 8-40 flange facing machine
Versatile flange facing machine with S-Gear™ and automatic toolpost, from 8 to 40 inch
-
BrandSygma
-
MachiningFlange machining
-
ClampingInternal (ID)
-
Clamping rangeØ 203 – 1,017 mm (8 – 40″)
-
Machining rangeØ 203 – 1,017 mm (8 – 40″)
-
DrivePneumatic
-
Machine weight220 kg
-
Available forBuy

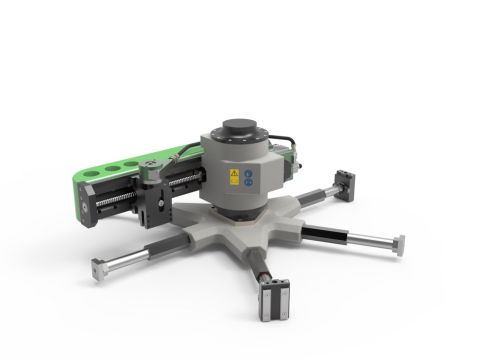

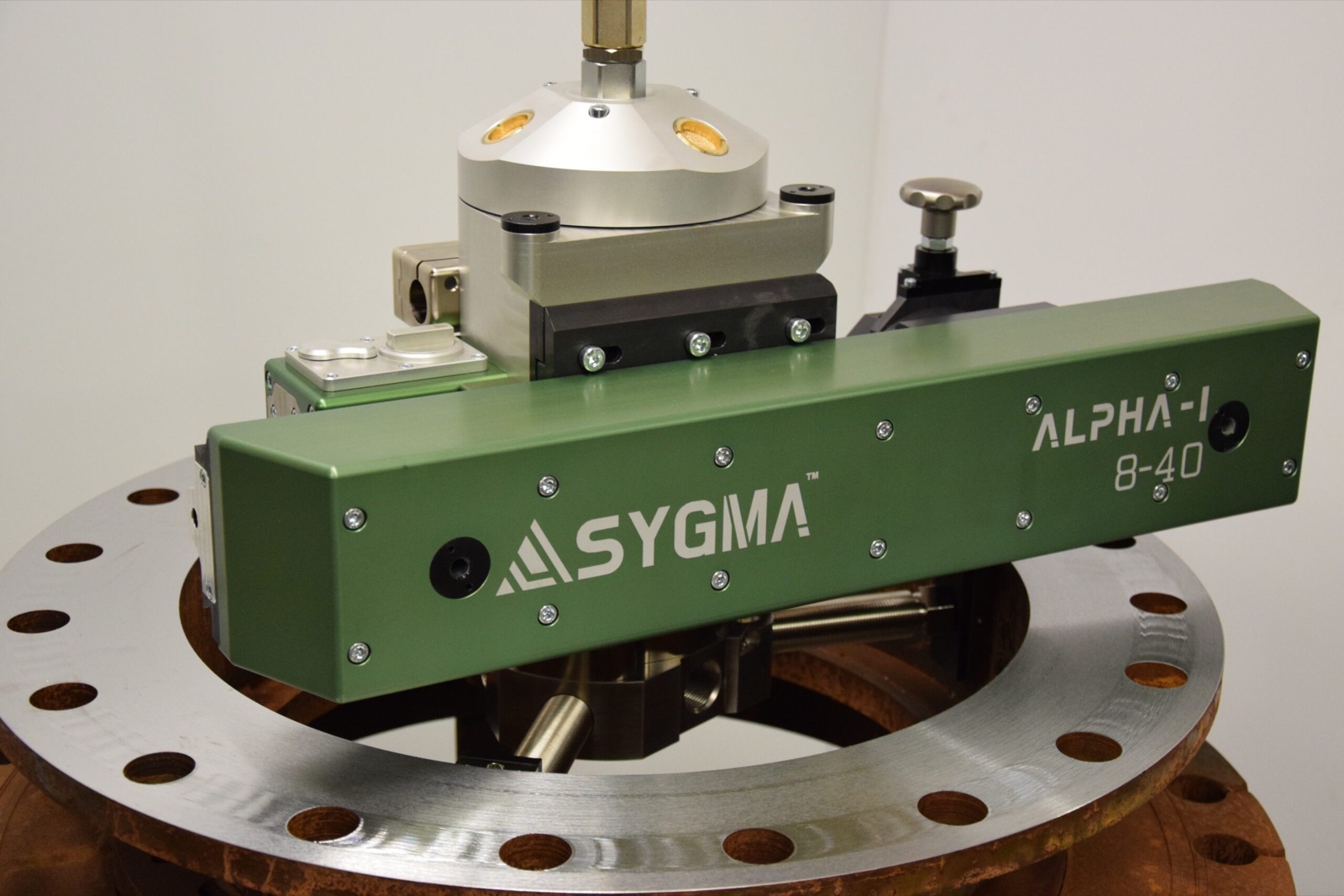

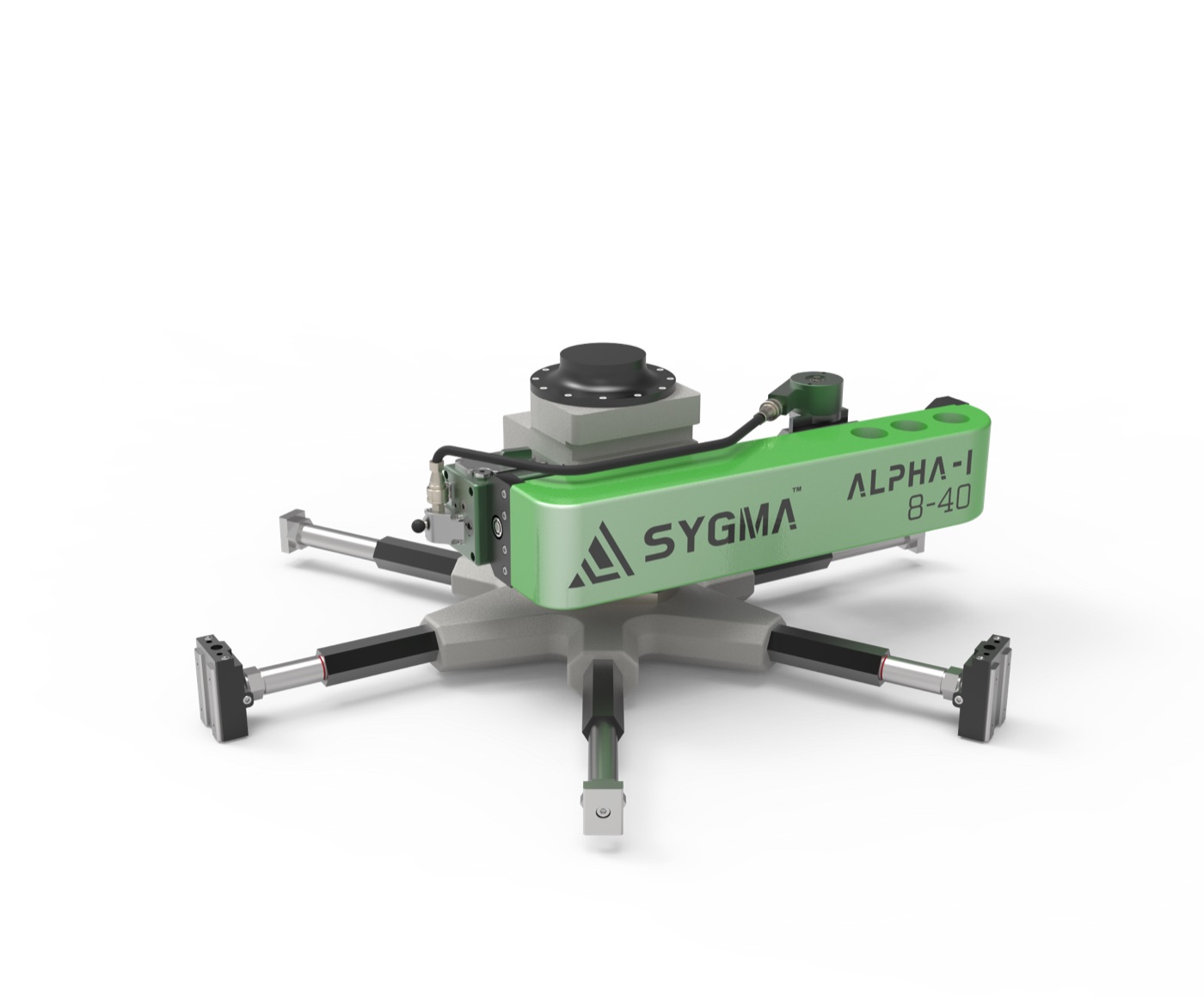

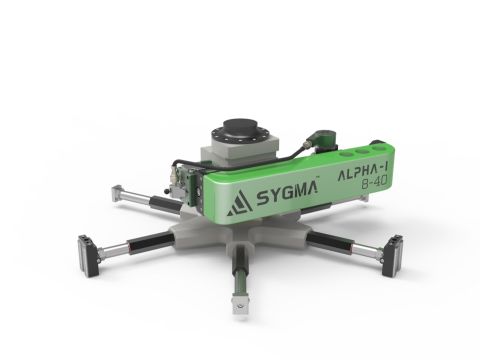

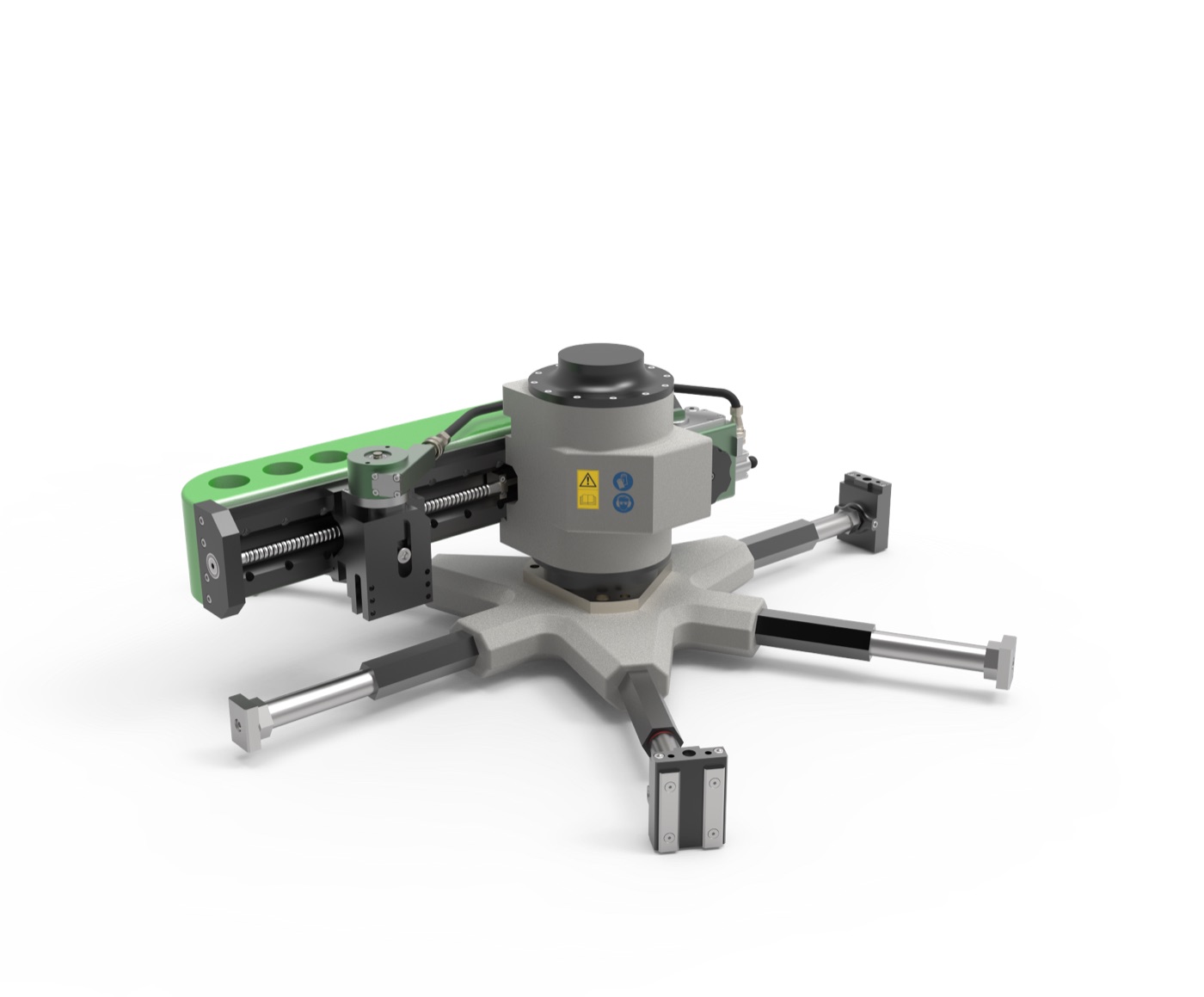

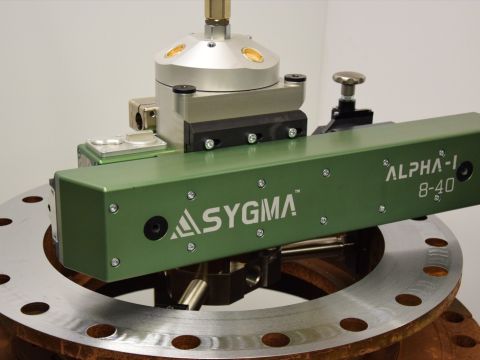

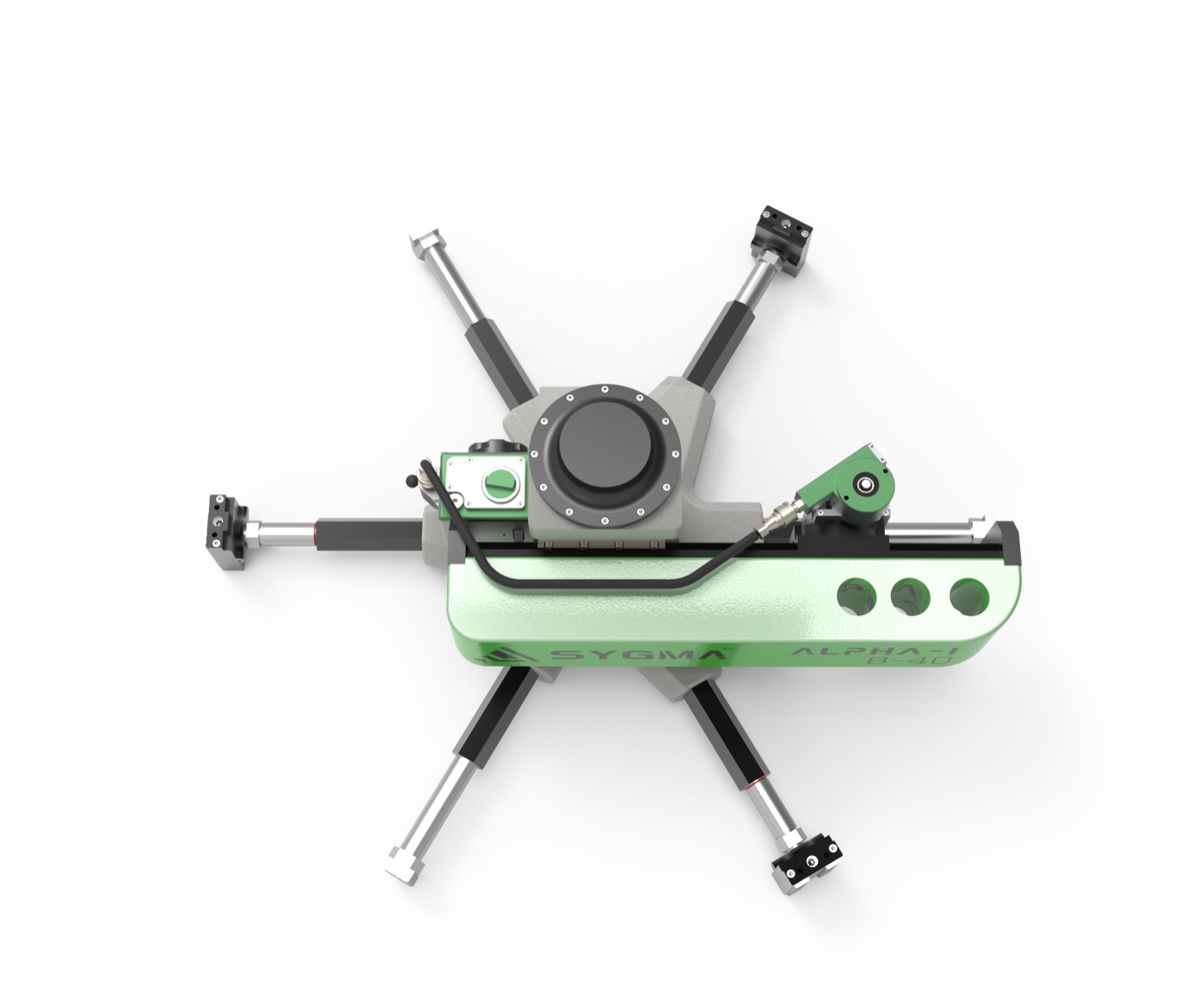

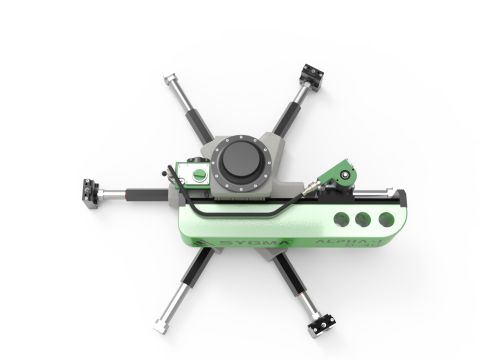

The Sygma™ Alpha-I 8-40 is an exceptionally versatile flange facing machine with the S-Gear™ system and an automatic toolpost. The machine clamps internally in bores from Ø 203 mm (8″) and machines flanges up to Ø 1,017 mm (40″).
Like all machines in the Alpha series, the Alpha-I 8-40 is available with different, interchangeable drives. Thanks to the modular design you can also quickly and easily convert an Alpha-I for orbital milling, with the Legacy milling unit.
Does the standard version not meet your requirements, or would you like to rent the machine for one job? Contact us; we will be happy to discuss the possibilities.
Features
Quick to set up, easy to operate
Plug & play: the machine is quickly mounted on the flange and can be operated without extensive instruction.
S-Gear™ gearbox
Five preset axial feeds; between those settings you can adjust the feed if a different finish is needed. The tool moves in both directions (feed in and feed out).
Automatic toolpost
360° rotatable, with built-in end-of-stroke limiter top and bottom.
Variable feed with presetting
Preset the feed and adjust it during work.
Multiple surface finishes
From a spiral groove (stock finish) to a smooth finish: you choose the finish that suits the gasket.
Adaptable to your application
Doesn't the standard configuration suit your job? Sygma supplies options and custom solutions; we are happy to think along.
Applications
Machining flange faces
Restoring flange gasket faces to flat and the right finish, on site.
RTJ grooves
Machining or repairing ring type joint grooves.
Seal grooves
Making or repairing grooves for O-rings and other seals.
Weld preparation
Preparing pipe and flange ends for welding.
Heat exchangers
Repairing gasket faces of heat exchangers, with the optional back-facing and mounting plate kits.
Orbital milling
With the Legacy milling unit you quickly convert an Alpha-I for orbital milling of large surfaces.
Technical data
-
MinimumØ 203 mm (8″)Clamping range
-
MaximumØ 1,017 mm (40″)Clamping range
-
MinimumØ 203 mm (8″)Machining range
-
MaximumØ 1,017 mm (40″)Machining range
-
Case dimensions730 × 830 × 690 mmDimensions and weight
-
Machine weight220 kgDimensions and weight
-
Machine height560 mmDimensions and weight
-
Pneumatic motor1,700 W (2.3 pk)Drive
