Hydraulic pumps

TorcUP EMAX electric pump

Electric pump for continuous use, up to four wrenches at once

Brand

TorcUP
Drive

Electric
Max. working pressure

700 bar (10,000 psi)
Power supply

230 V or 115 V
Motor

1.6 kW (2.2 pk)
Oil flow

10.0 / 2.4 / 1.1 l/min (3 stages)
Reservoir

8.4 l
Weight

28 kg
Available for

Buy, Rent

The EMAX is an electric pump for hydraulic torque wrenches, made for reliable, prolonged use on site. The pressure is infinitely adjustable up to 700 bar (10,000 psi).

Three-stage pump with oil cooler
Multi-port version: up to four wrenches at once
Available in 115 V and 230 V
Hour meter for planning maintenance
Remote control on a 4.5 m (15 ft) cable

The EMAX is built for rough conditions and heavy work. You set the pressure that matches the required torque, and achieve that torque every time. With one wrench or with four at once.

Features

Heavy-duty electric motor

2.2 hp, for 50 and 60 Hz.

Accurate pressure gauge (psi and bar)

Large and easy to read, in psi and bar.

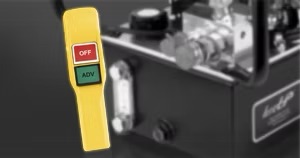

Rugged remote control

Full control at the push of a button.

Protective cage

Supplied as standard.

Industrial reservoir

Light and durable.

Sight glass

Oil level and oil temperature at a glance.

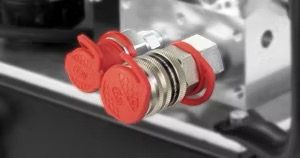

Drip-free quick couplers

Safety couplers with a 3:1 safety factor, easy to connect; the collar locks the coupler.

Oil cooler

Built in as standard.

Electrical control box

Sealed, and easily accessible for maintenance.

Specifications

Full technical specifications

Technical data

	EMAX-115V / EMAX-230V
Reservoir capacity	8.4 l (2.2 gal)
Valve	Auto-retract
Motor	1.6 kW (2.2 hp), 115 V or 230 V
Weight	28 kg (62 lbs)
Equipment	Oil cooler and remote control with 15 ft cable

Oil flow

	Max. oil flow
Stage 1 (70 bar / 1,000 psi)	10.0 l/min (610 cu.in/min)
Stage 2 (270 bar / 3,900 psi)	2.4 l/min (145 cu.in/min)
Stage 3 (700 bar / 10,000 psi)	1.1 l/min (65 cu.in/min)

Dimensions

	Pump	Reservoir
Length	419 mm (16.5 in)	320 mm (12.6 in)
Width	381 mm (15.0 in)	239 mm (9.4 in)
Height	406 mm (16.0 in)	130 mm (5.1 in)

Accessories

Quadra-Torc option

Factory-fitted with a four-port manifold, to operate four wrenches at once.

Twinline high-pressure hoses

From 4.5 to 15 m; longer hoses to order.

Rental

From € 125 excl. VAT

per day

Request rental

All rental rates
