Measuring systems · Digi-Pas

Digital levels and inclinometers

Digi-Pas: digital precision levels, inclinometers and sensor modules, from 0.05° to 0.2 arcsecond.

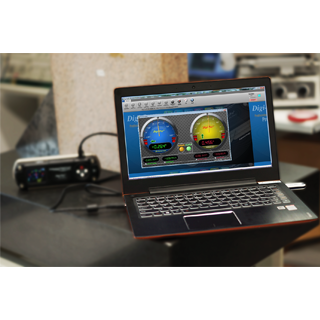

With Digi-Pas digital levels you measure inclination in one or two axes at the same time. You read them on the built-in display, wirelessly on a tablet or smartphone, or on a PC with the PC Sync software; some models also measure vibration.

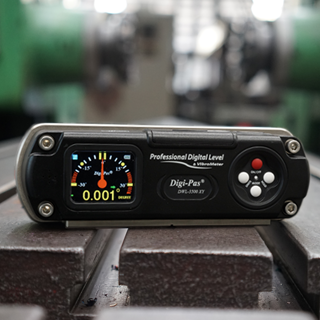

The range runs from handheld levels to machine levels, ultra-precision inclinometers and sensor modules for fixed installations.

Digital levels and inclinometers

Compare the models

The key data side by side. Click a model for all details.

Model
Type
Resolution
Measuring range
Accuracy
Communication
Magnetic base

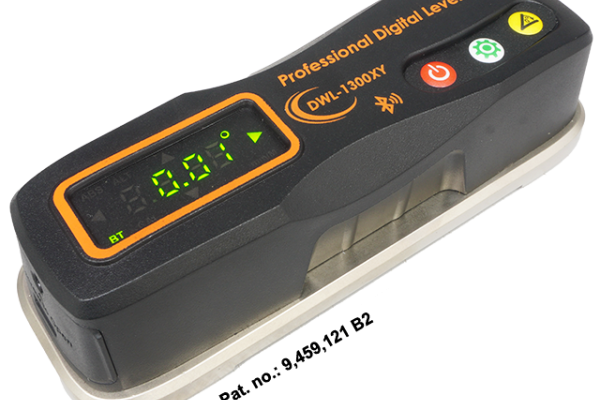

Type
Machine level
Resolution
0.01°
Measuring range
±5° (2-axis)
Accuracy
±0.02°
Communication
Bluetooth
Magnetic base
No

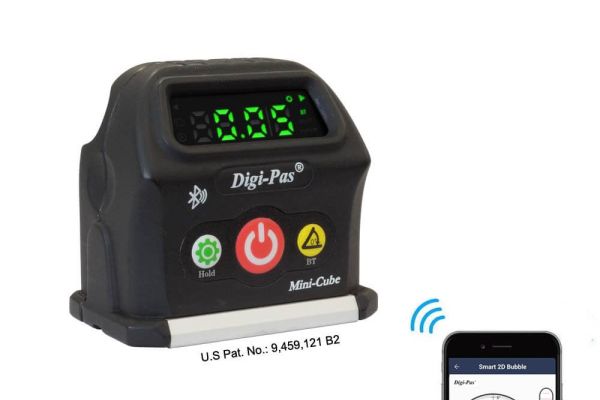

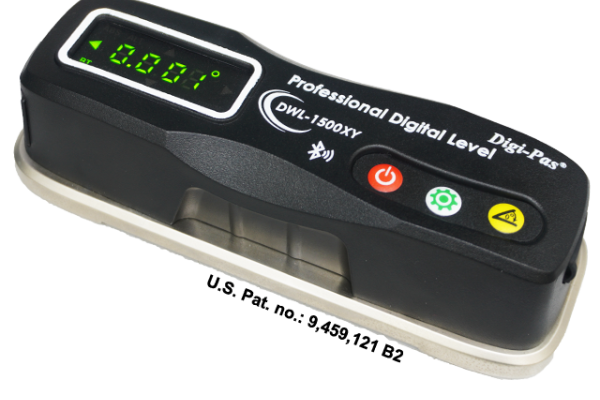

Type
Machine level
Resolution
0.001°
Measuring range
±2° (2-axis)
Accuracy
±0.002°
Communication
Bluetooth
Magnetic base
No

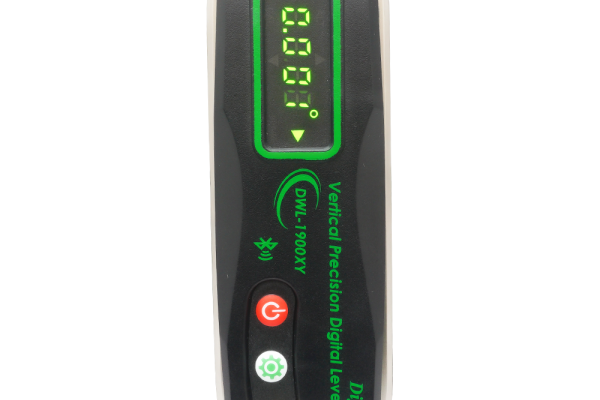

Type
Vertical level
Resolution
0.001°
Measuring range
90° ±5° (2-axis)
Accuracy
±6 µm/150 mm
Communication
Bluetooth
Magnetic base
No

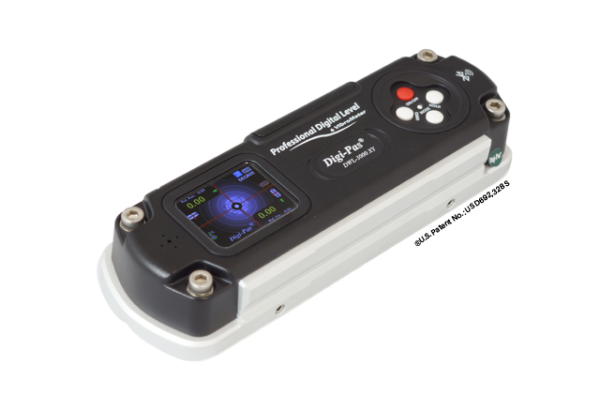

Type
Machine level
Resolution
0.01°
Measuring range
±90° (1-axis), ±15° (2-axis)
Accuracy
±0.01°
Communication
Bluetooth, USB
Magnetic base
Yes

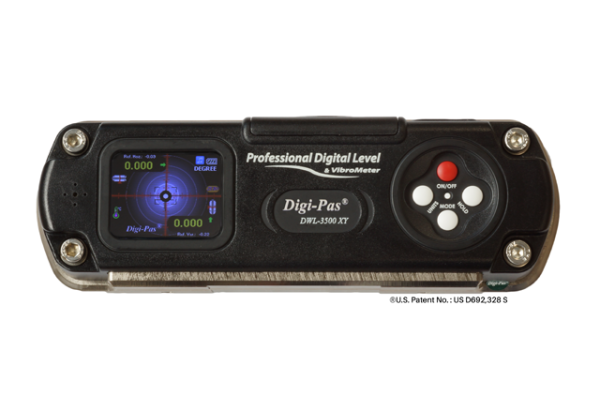

Type
Machine level
Resolution
0.001°
Measuring range
±20° (1-axis), ±10° (2-axis)
Accuracy
±0.001°
Communication
Bluetooth, USB
Magnetic base
No

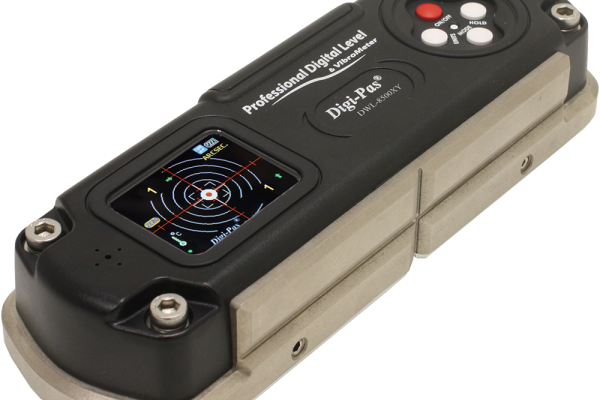

Type
Ultra-precision inclinometer
Resolution
1 arcsec
Measuring range
±4° (1-axis), ±2° (2-axis)
Accuracy
±1 arcsec
Communication
Bluetooth, USB
Magnetic base
No

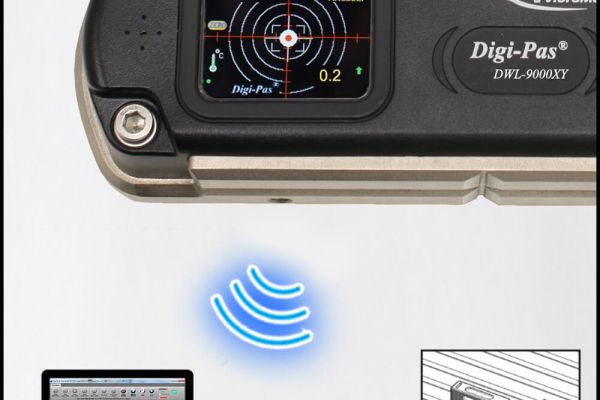

Type
Ultra-precision inclinometer
Resolution
0.2 arcsec
Measuring range
±2° (1-axis), ±1° (2-axis)
Accuracy
±0.6 arcsec
Communication
Bluetooth, USB
Magnetic base
No
Type

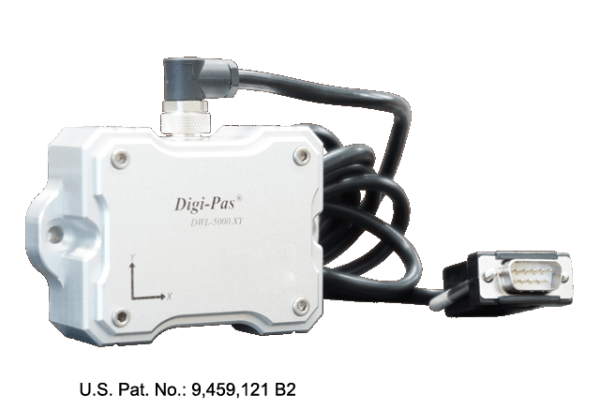

Sensormodule
Resolution
0.01°
Measuring range
±90° (1-axis), ±15° (2-axis)
Accuracy
±0.01°
Communication
Bluetooth, USB, RS-485
Magnetic base

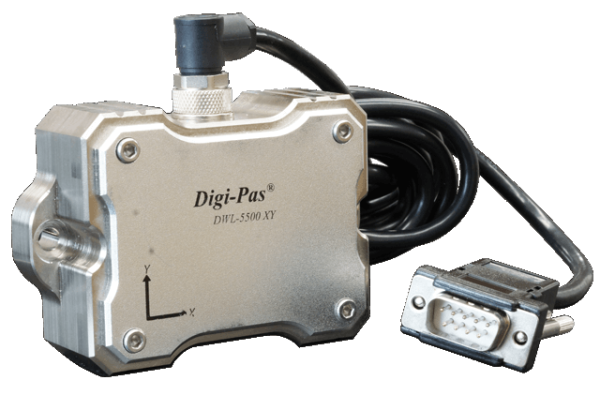

Type
Sensormodule
Resolution
0.001°
Measuring range
±10° (1-axis), ±5° (2-axis)
Accuracy
±0.001°
Communication
Bluetooth, USB, RS-485
Magnetic base

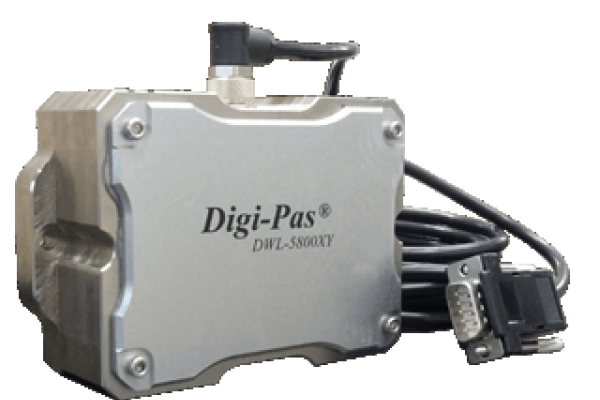

Type
Sensormodule
Resolution
1 arcsec
Measuring range
±4° (1-axis), ±1° (2-axis)
Accuracy
±1 arcsec
Communication
Bluetooth, USB, RS-485
Magnetic base

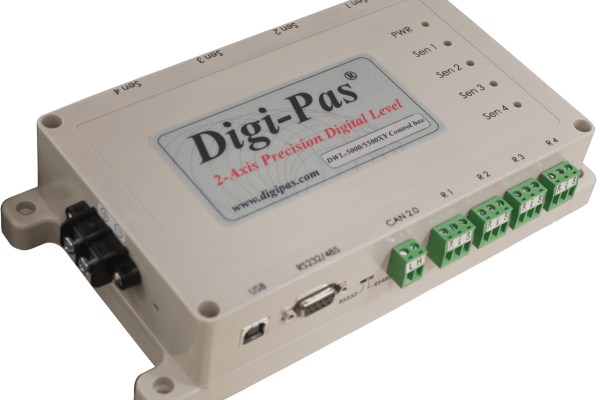

Type
Control/readout
Resolution
Measuring range
Accuracy
Communication
Bluetooth, USB, RS-485
Magnetic base

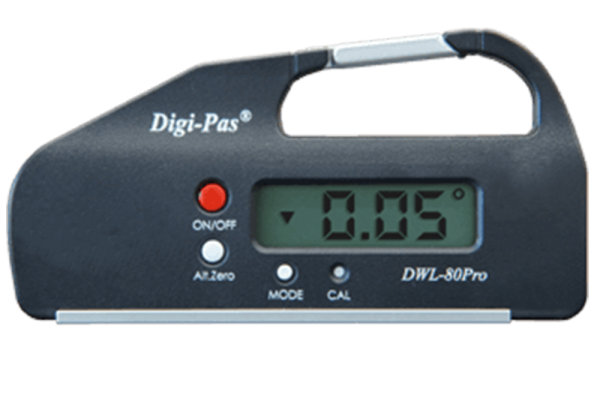

Type
Handheld (pocket/torpedo)
Resolution
0.05°
Measuring range
4 × 90° (360°)
Accuracy
±0.05°
Communication
Magnetic base
Yes

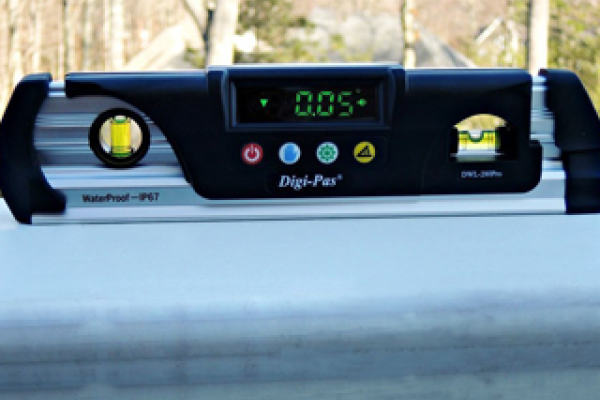

Type
Handheld (pocket/torpedo)
Resolution
0.05°
Measuring range
4 × 90° (1-axis), ±5° (2-axis)
Accuracy
±0.1°
Communication
Bluetooth
Magnetic base
Yes
Type
Handheld (pocket/torpedo)
Resolution
0.05°
Measuring range
4 × 90° (360°)
Accuracy
±0.05°
Communication
Magnetic base
Yes
Prefer to have it measured for you?

Prefer to have it measured for you?

Our measurement service also measures flatness, squareness, level and straightness for you, on site.

Advice or a quote?

Tell us what you need it for, and we will recommend the right version and send you a quote.
