Roll profile measurement

WMG measuring electronics and software

Electronics and software, tailored to measuring rolls and rollers
  • Brand
    WMG
  • Operating time
    up to 5 hours on batteries
  • Data transfer
    Bluetooth or Wi-Fi
  • Available for
    Buy
Request a quote
WMG measuring electronics and software

WMG measuring electronics are tailored to measuring rolls and rollers, and support all common measuring functions. For mobile use they are light, small and self-contained: thanks to high-quality batteries you can measure for up to 5 hours without mains power. With the WMS software you create detailed measurement reports, analyses, wear histories and overlays.

BRAND TS supplies WMG measuring equipment. Tell us which rolls or rollers you want to measure, and we will recommend the right solution.

Features

Independent of mains power

Up to 5 hours of measuring without mains power.

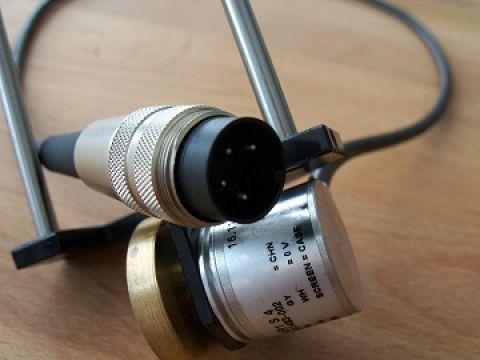

Two probe inputs

Plus an encoder input for optional position or distance measurement.

Temperature

Optional input for a temperature sensor.

Wireless

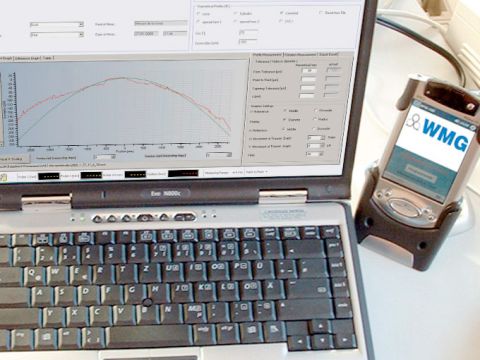

Data via Bluetooth or Wi-Fi to a handheld or directly to the PC.

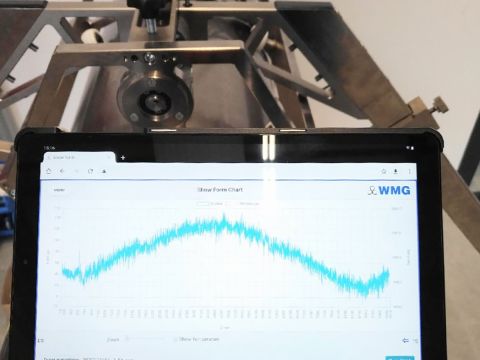

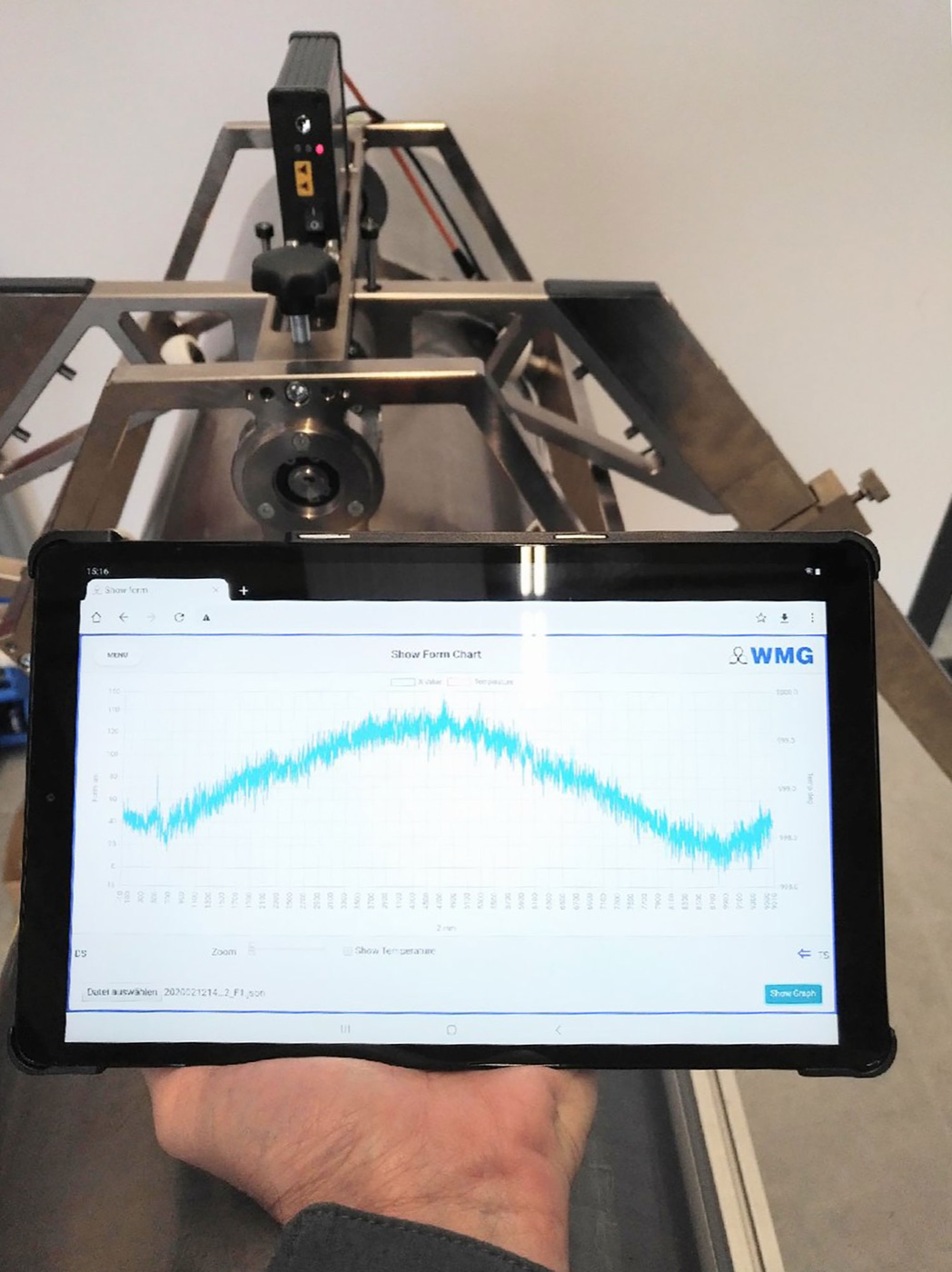

Real-time profile

The WMG6000 electronics show the profile in real time.

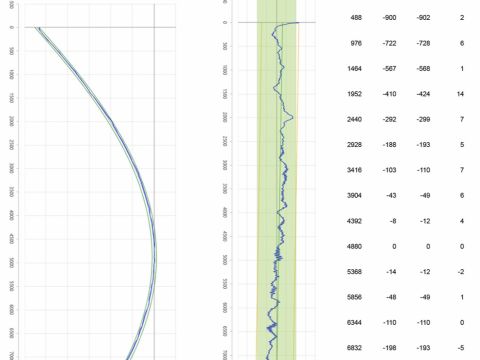

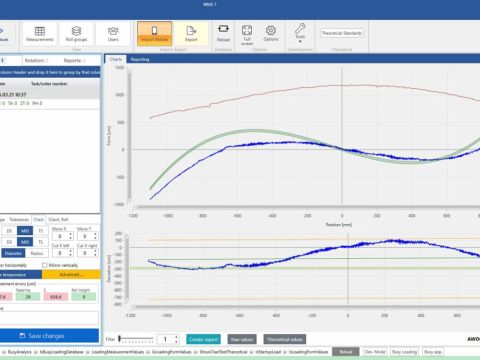

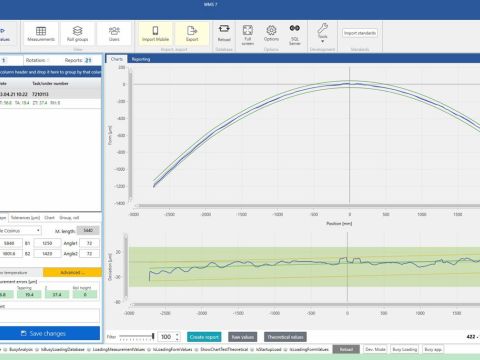

Reports and database

Measurement reports with date, time and the responsible inspector, stored in a database; with analyses, wear history and overlays.

Applications

Profile measurement

Cylindrical and conical, convex and concave crowns, CVC profiles and special shapes.

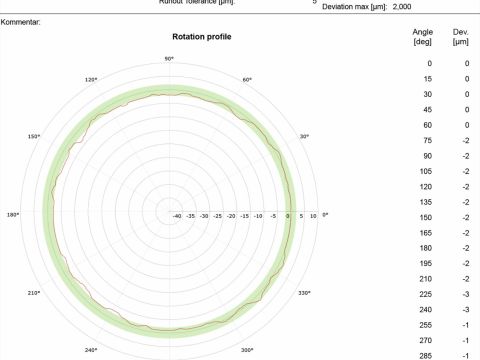

Rotation measurement

Runout, roundness and concentricity.

Diameter

Absolute measurement of the diameter.

Deflection and roll position

Sag and the position of the roll, horizontally and vertically.

Inner diameter

Measurement of the inner diameter.

In the machine (IMD)

With a special measuring caliper for rolls in installed position.

Technical data

  • Types
    WMG 4000 and WMG 5000 (mobile); WMG6000 with real-time profile
    Measuring electronics
  • Operating time
    Up to 5 hours, independent of mains power
    Measuring electronics
  • Inputs
    2 probe inputs, encoder input, optional temperature sensor
    Measuring electronics
  • Data transfer
    Bluetooth or Wi-Fi, to handheld or PC
    Measuring electronics
  • PC software
    WMS: measurement reports, database, analyses, wear history and overlays
    Software
