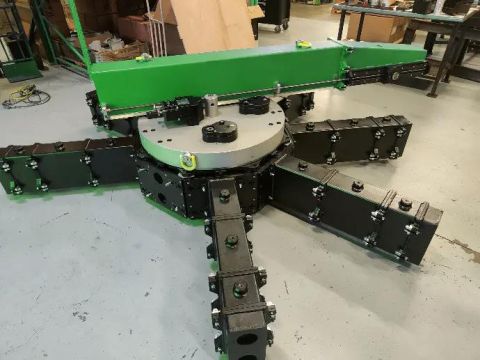

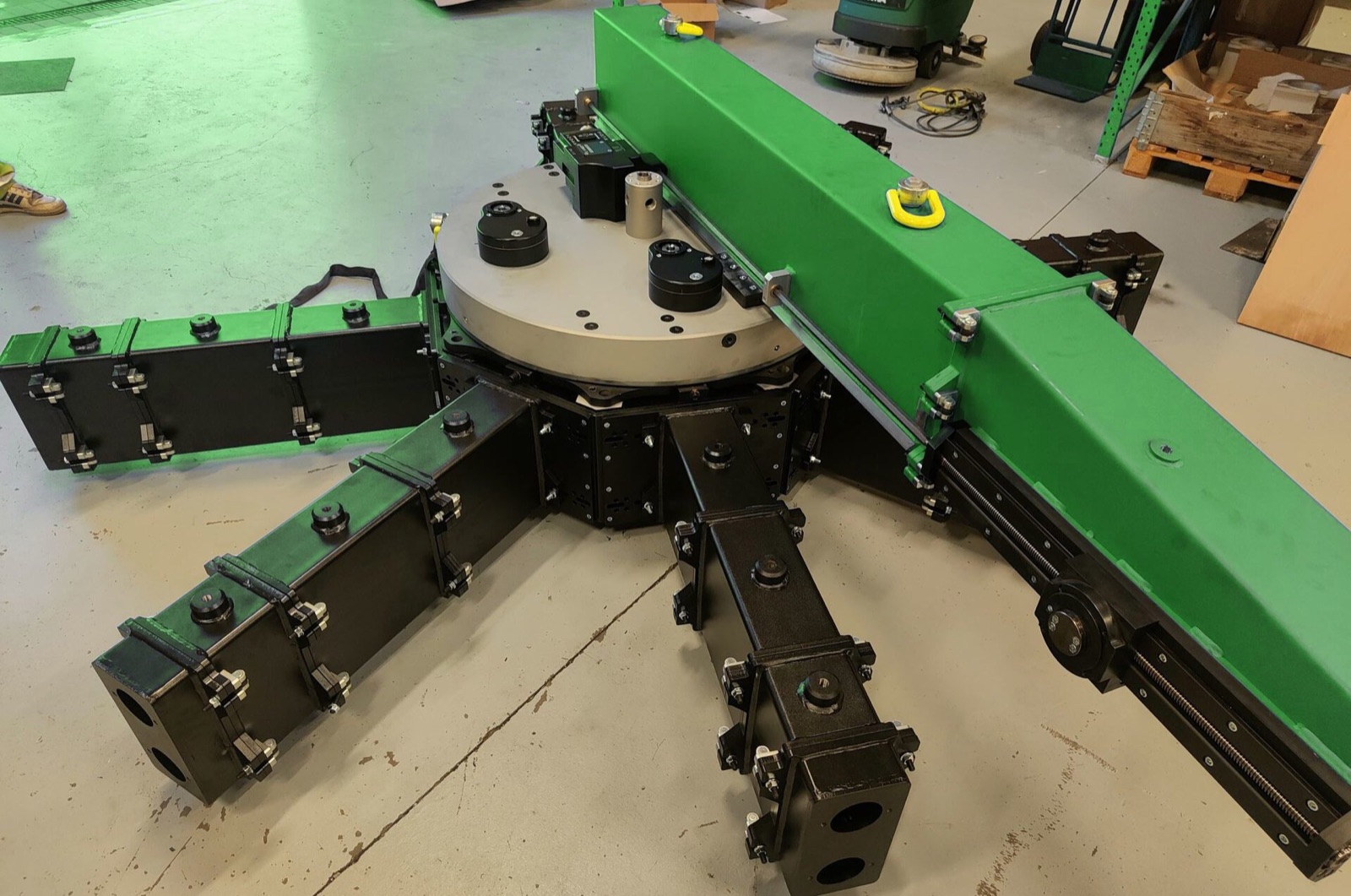

Sygma Alpha-I 50-160 flange facing machine
The largest Alpha-I: flanges from 44 to 164 inch, with extension kit up to 200 inch
-
BrandSygma
-
MachiningFlange machining
-
ClampingInternal (ID)
-
Clamping rangeØ 1,276 – 3,356 mm (50 – 132″)
-
Machining rangeØ 1,118 – 4,168 mm (44 – 164″)
-
DrivePneumatic
-
Machine weight2,100 kg
-
Available forBuy
The Sygma™ Alpha-I 50-160 is the largest machine in the Alpha-I series. It clamps internally in bores from Ø 1,276 to 3,356 mm and machines flanges from Ø 1,118 to 4,168 mm (44 to 164 inch). With the arm and extension kit this goes up to Ø 5,080 mm (200 inch).
Like all machines in the Alpha series, the Alpha-I 50-160 is available with different, interchangeable drives. Thanks to the modular design you can also quickly and easily convert an Alpha-I for orbital milling, with the Legacy milling unit.
Does the standard version not meet your requirements, or would you like to rent the machine for one job? Contact us; we will be happy to discuss the possibilities.
Features
Quick to set up, easy to operate
Plug & play: the machine is quickly mounted on the flange and can be operated without extensive instruction.
Optimum stability
The high torque and firm clamping ensure smooth, accurate machining.
ION-4 gearbox
Heavy-duty gearbox, developed by Sygma itself: high torque and zero backlash.
Zero backlash
The drive works without backlash, for a crisp and accurate face.
NO-ROW™ clamping feet
Sygma's NO-ROW™ clamping feet fix the machine stably and with low vibration in the flange bore.
Adjustable clamping feet
For quick and exact alignment on the flange.
Built-in safety features
The safety features are integrated into the design of the machine.
Multiple drives
Available with different, interchangeable drives, so you can handle any job on site.
Multiple surface finishes
From a spiral groove (stock finish) to a smooth finish: you choose the finish that suits the gasket.
Adaptable to your application
Doesn't the standard configuration suit your job? Sygma supplies options and custom solutions; we are happy to think along.
Applications
Machining flange faces
Restoring flange gasket faces to flat and the right finish, on site.
RTJ grooves
Machining or repairing ring type joint grooves.
Seal grooves
Making or repairing grooves for O-rings and other seals.
Weld preparation
Preparing pipe and flange ends for welding.
Heat exchangers
Repairing gasket faces of heat exchangers, with the optional back-facing and mounting plate kits.
Orbital milling
With the Legacy milling unit you quickly convert an Alpha-I for orbital milling of large surfaces.
Technical data
-
MinimumØ 1,276 mm (50″)Clamping range
-
MaximumØ 3,356 mm (132″)Clamping range
-
With extension kitØ 4,716 mm (185″), more information on requestClamping range
-
MinimumØ 1,118 mm (44″)Machining range
-
MaximumØ 4,168 mm (164″)Machining range
-
With arm and extension kitØ 5,080 mm (200″)Machining range
-
Crate 1: clamping foot1,300 × 1,300 × 550 mmDimensions and weight
-
Crate 2: hub and arm2,050 × 1,200 × 770 mmDimensions and weight
-
Crate 3: legs1,200 × 1,200 × 885 mmDimensions and weight
-
Crate 4: options1,200 × 1,200 × 820 mmDimensions and weight
-
Machine weight2,100 kgDimensions and weight
-
Machine height900 mmDimensions and weight
-
Pneumatic motor3,200 W (4.3 pk)Drive
-
Air pressure6.2 barDrive
-
Air consumption6,200 Nl/minDrive
-
Supplied as standardWooden transport crates
Lifting equipment
Clamping feet
CE certificate
ManualScope of delivery
Accessories
Automatic toolpost
360° rotatable, with built-in end-of-stroke limiter top and bottom.
Back-facing kit for heat exchangers
For machining the back of tube sheets and flanges of heat exchangers.
Mounting plate kit for heat exchangers
Extension for external clamping
Orbital milling unit
Only with certain configurations.
Remote control
Only with certain options.
