Roll profile measurement

WMG mobile roll measuring calipers 3040 and 3041

Measure the profile of rolls, cylinders and rollers quickly and accurately, wherever the roll is

Brand

WMG
Diameter range

100 – 2,350 mm (3040) / 200 – 2,000 mm (3041)
Data transfer

Bluetooth or Wi-Fi
Available for

Buy

WMG mobile roll measuring calipers 3040 and 3041

With the WMG mobile roll measuring calipers you measure the contour of rolls, cylinders and rollers quickly, accurately and stably, regardless of where the roll is. The measuring carriage rests on the roll; the electronics send the measurements via Bluetooth to a handheld or PC. There are two versions: the WMG 3040 in aluminium, for diameters from 100 to 2,350 mm, and the light WMG 3041 in carbon fibre, also suitable for rolls with a softer covering, for 200 to 2,000 mm.

Sizes WMG 3040 aluminium

Size	Measuring range (mm)
1	100 – 450
2	175 – 550
3	200 – 700
4	200 – 850
5	300 – 900
6	300 – 1,000
7	300 – 1,100
8	400 – 1,100
9	450 – 1,200
10	700 – 1,500
11	700 – 1,700
12	800 – 2,000
7S	300 – 1,500
9S	450 – 1,600

S models have an extra pair of measuring arms. Larger diameters, up to 2,350 mm, on request.

Sizes WMG 3041 carbon fibre

Size	Measuring range (mm)	Extendable to
4	200 – 850	1,000
11	700 – 1,700	2,000

BRAND TS supplies WMG measuring equipment. Tell us which rolls or rollers you want to measure, and we will recommend the right solution.

Features

Accurate

Accurate measurement of the profiles of rolls, cylinders and rollers, including those with soft surfaces.

Portable

Quick and easy to set up, wherever the roll is.

Battery powered

Work independently of mains power, for up to 5 hours.

Adjustable

Variable settings for different diameters.

Analogue and digital

Available with analogue or digital measuring equipment.

Straight to the software

Store measurements and upload them automatically via Bluetooth, for recording and analysis.

Applications

Profile measurement

Cylindrical and conical, convex and concave crowns, CVC profiles and special shapes.

Rotation measurement

Runout, roundness and concentricity.

Diameter

Absolute measurement of the diameter.

Deflection and roll position

Sag and the position of the roll, horizontally and vertically.

Variants

WMG 3040 aluminium

Rugged aluminium measuring caliper for diameters from 100 to 2,350 mm, with durable components. There is also a model for inner contours.

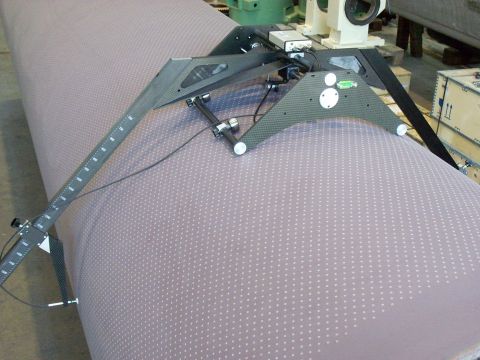

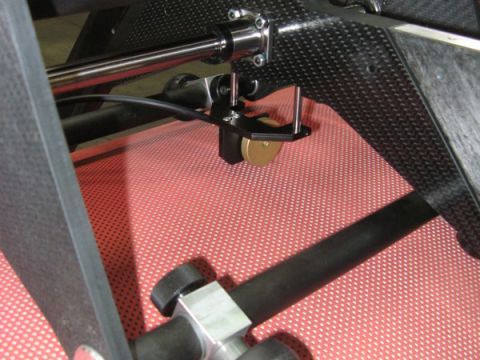

WMG 3041 carbon fibre (CFRP)

Remarkably light, with optimum stiffness and stability, even at higher temperatures. Also for rolls with softer coverings; 200 to 2,000 mm.

Technical data

WMG 3040 aluminium

Ø 100 – 2,350 mm

Range
WMG 3041 carbon fibre

Ø 200 – 2,000 mm

Range
WMG 4000 / 5000

Independent of mains power for up to 5 hours; data via Bluetooth or Wi-Fi to handheld or PC

Measuring electronics
Inputs

2 probe inputs, encoder input (position/distance), optional temperature

Measuring electronics
